YONGYUTAIDatasheet (PDF)

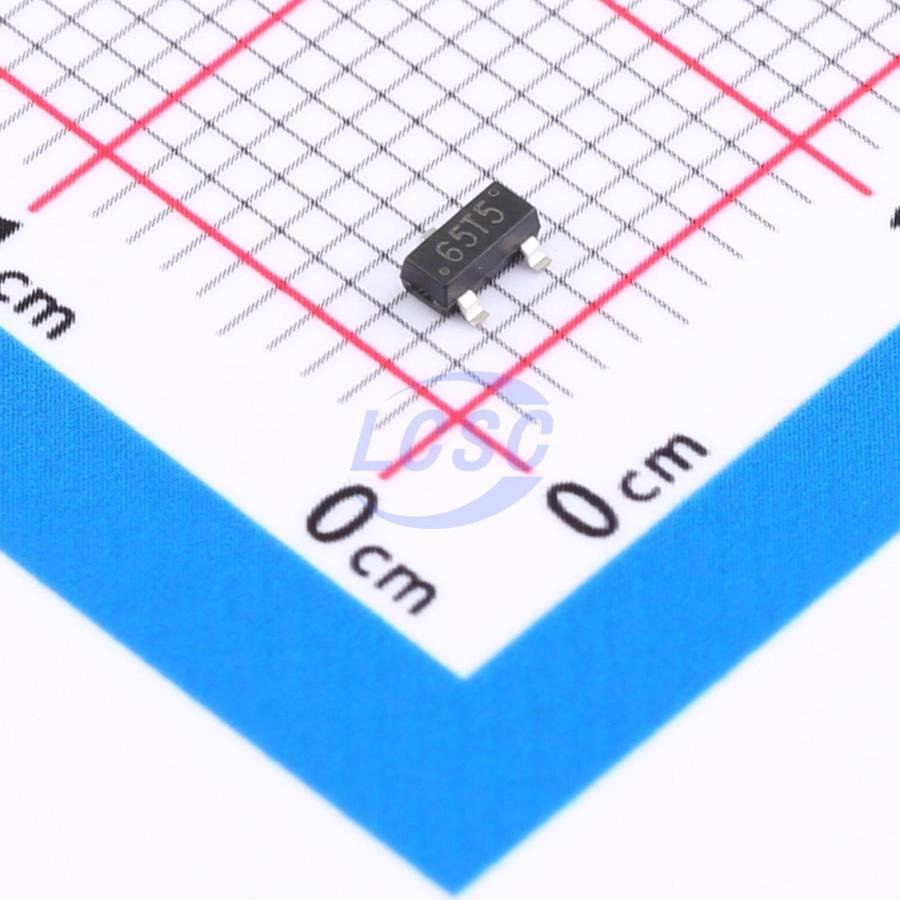

XC6206P252MR
Linear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23
SOT-23RoHSActive
High-precision, low-power positive voltage regulator chip
- Manufacturer
- YONGYUTAI
- Manufacturer part #
- XC6206P252MR
- Store part #
- C2909917
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,660 in stock
#C2909917
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.88 | ₹77.60 |
| 200+ | ₹3.00 | ₹600.00 |
| 600+ | ₹2.51 | ₹1,506.00 |
| 3,000+ | ₹2.22 | ₹6,660.00 |
| 9,000+ | ₹1.97 | ₹17,730.00 |
| 21,000+ | ₹1.83 | ₹38,430.00 |
20 × ₹3.88
₹77.60
excl. GST
₹91.57 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XC6206P252MR
₹77.60 for 20 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 1uA
- Output Configuration
- Positive
- Output Current
- 250mA
- Operating Voltage
- 6V
- Features
- Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.031 g
Overview
The XC6206P series is a high-precision, low-power, high-voltage, positive voltage regulator IC fabricated using CMOS process and laser trimming technology. It maintains a very low dropout voltage even under output current conditions. The XC6206P series incorporates a current limiting circuit, a driver transistor, a high-precision reference voltage source, and an error correction circuit. The XC6206P series is compatible with low-ESR ceramic capacitors. The return circuit of the current limiter provides short-circuit protection for both the current limiter and the output pin. Through laser trimming technology, the output voltage of the IC can be set in the range of 1.2V to 5.0V in 0.1V increments.
Applications
- Cordless telephone equipment
- Wireless control systems
- Portable/handheld computers
- Portable consumer devices
- Portable instruments
- Electronic equipment
- Automotive electronics
- Voltage reference sources
Key features
- High accuracy output voltage: ±2%
- Output voltage: 1.2V~5.0V (step 0.1V)
- Maximum operating voltage: 6V
- Ultra-low quiescent current (Typ. = 8.0μA)
- High load current capability
- Ultra-low dropout voltage: 0.2V at 90mA and 0.40V at 200mA
- Excellent input stability
- Low temperature coefficient
- Suitable for use as regulator and voltage reference
