GOODWORKDatasheet (PDF)

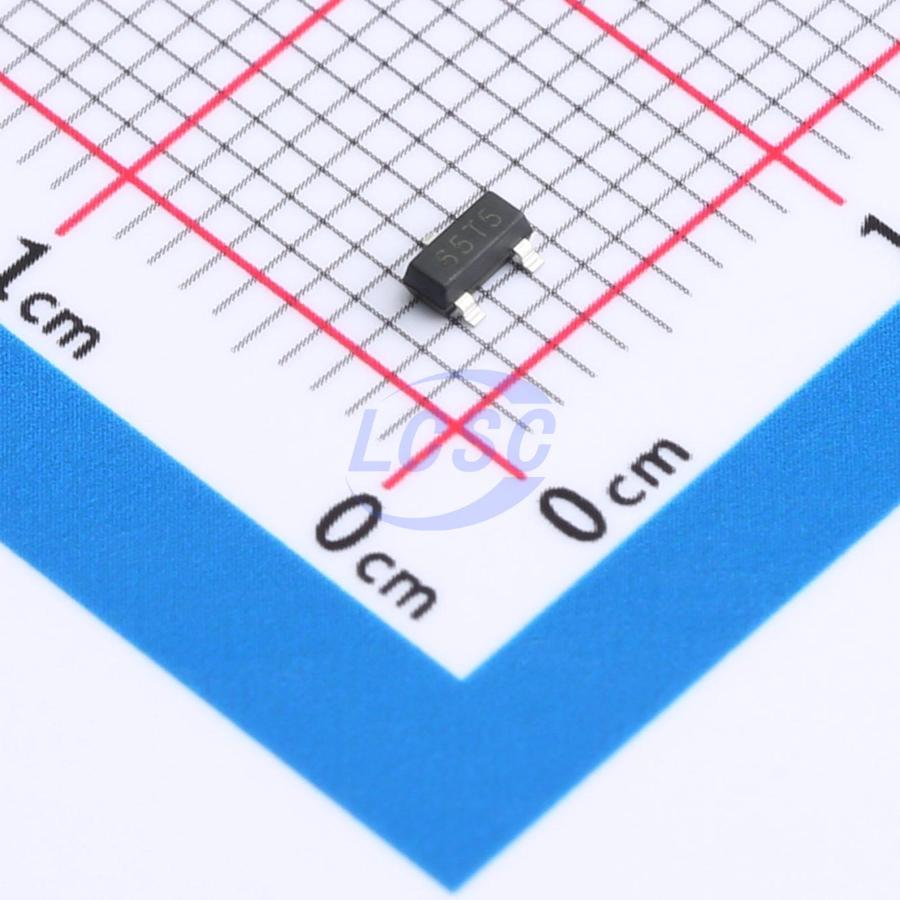

XC6206P252MR-GK
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-3
SOT-23-3RoHSActive
LDO Linear Voltage Regulator
- Manufacturer
- GOODWORK
- Manufacturer part #
- XC6206P252MR-GK
- Store part #
- C42429371
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,600 in stock
#C42429371
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.13 | ₹106.50 |
| 500+ | ₹1.65 | ₹825.00 |
| 3,000+ | ₹1.40 | ₹4,200.00 |
| 6,000+ | ₹1.24 | ₹7,440.00 |
| 24,000+ | ₹1.10 | ₹26,400.00 |
| 51,000+ | ₹1.03 | ₹52,530.00 |
50 × ₹2.13
₹106.50
excl. GST
₹125.67 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XC6206P252MR-GK
₹106.50 for 50 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 3uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 8V
- Features
- Over Current Protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.032 g
Overview
XC6206P252MR is a CMOS step-down voltage regulator featuring high ripple rejection, low power consumption, low dropout, and overcurrent/short-circuit protection. These devices have an extremely low quiescent current (typical 3.0μA), capable of delivering 300mA output current at minimal input-to-output voltage differential while maintaining excellent regulation. Due to the low dropout voltage and quiescent current, these devices are ideally suited for battery-powered applications requiring extended battery life, such as computers, consumer products, and industrial equipment.
Applications
- Battery-powered systems
- Cordless telephone equipment
- Wireless control systems
- Portable/handheld computers
- Portable consumer devices
Key features
- Maximum output current: 300mA
- Dropout voltage: 160mV@50mA
- Maximum operating voltage: 8V
- Output voltage range: 2.5V
- High accuracy: 2%
- Ultra-low quiescent current: 3μA (typical)
- Built-in overcurrent and short-circuit protection
- Operating temperature range: -40℃ ~ 85℃
