TDSEMICDatasheet (PDF)

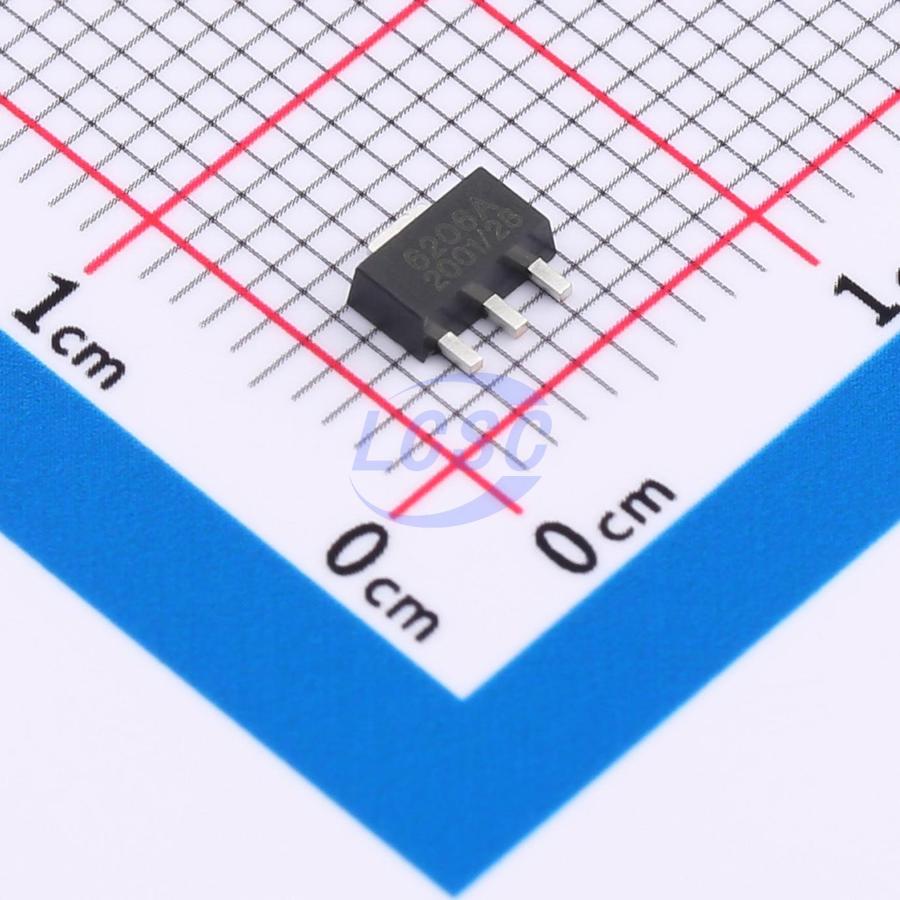

XC6206P282PR
Linear Voltage Regulator IC Positive Fixed 1 Output 200mA SOT-89-3
SOT-89-3ROHS CompliantActive
IC REG LINEAR 2.8V 200mA SOT-89-3
- Manufacturer
- TDSEMIC
- Manufacturer part #
- XC6206P282PR
- Store part #
- C22466434
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,480 in stock
#C22466434
Stock & price checked 33 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.24 | ₹52.40 |
| 100+ | ₹4.14 | ₹414.00 |
| 300+ | ₹3.60 | ₹1,080.00 |
| 1,000+ | ₹3.19 | ₹3,190.00 |
| 5,000+ | ₹2.86 | ₹14,300.00 |
| 10,000+ | ₹2.70 | ₹27,000.00 |
10 × ₹5.24
₹52.40
excl. GST
₹61.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
XC6206P282PR
₹52.40 for 10 + GST
Specifications
- Output Voltage
- 2.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 6.5V
- Features
- Over Current Protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.157 g
Overview
The XC6206 series are high ripple rejection, low quiescent current, low dropout CMOS linear voltage regulators with overcurrent and short-circuit protection. These devices feature very low quiescent current (Typ. = 6.5μA), capable of delivering 200mA output current with minimal input-to-output voltage differential while maintaining good regulation. Due to the low dropout voltage and low quiescent current, these devices are particularly well-suited for battery-powered applications requiring extended battery life, such as computers, consumer electronics, and industrial equipment.
Applications
- Battery-powered systems
- Portable consumer devices
- Cordless telephone equipment
- Portable instruments
- Wireless control systems
- Automotive electronics
- Portable/handheld computers
- Voltage reference sources
Key features
- High-precision output voltage: ±2.5%
- Maximum input voltage up to 6.5V
- Output voltage: 1.5V ~ 5.0V (step 0.1V)
- Usable as regulator and voltage reference
- Ultra-low quiescent current (Typ. = 6.5μA)
- Package: SOT89-3, SOT23-3
