QNHCHIPDatasheet (PDF)

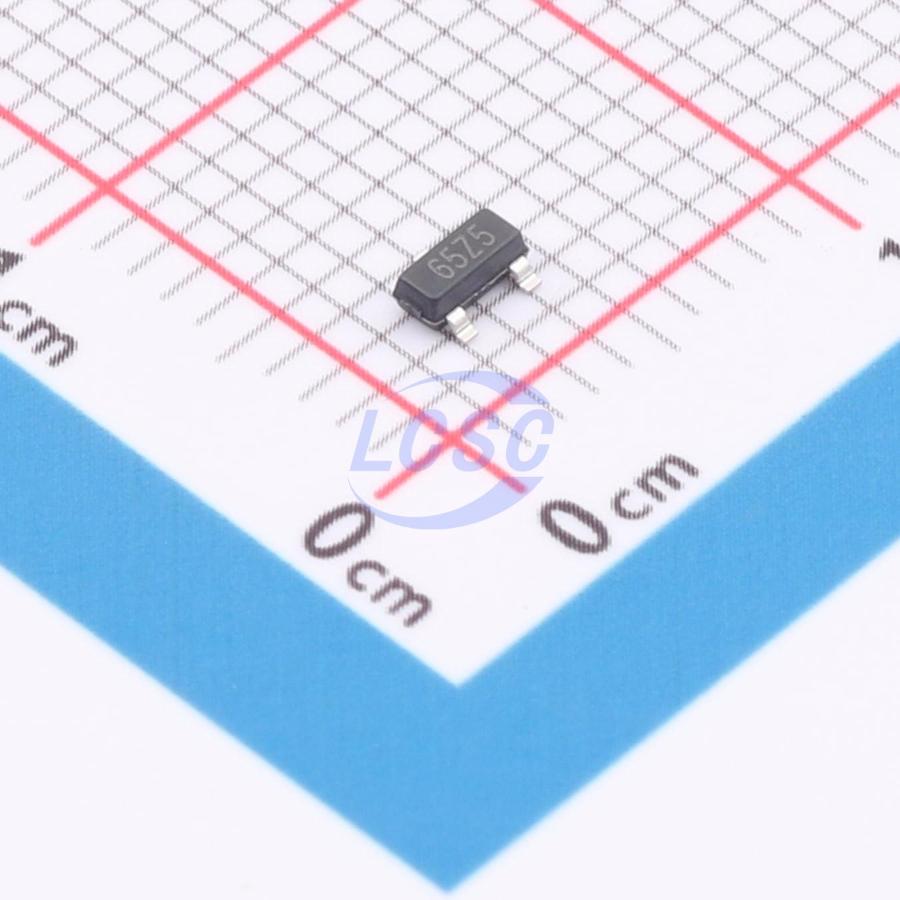

XC6206P302MR
3V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
- Manufacturer
- QNHCHIP
- Manufacturer part #
- XC6206P302MR
- Store part #
- C50593819
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,800 in stock
#C50593819
Stock & price checked 40 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.35 | ₹117.50 |
| 500+ | ₹1.83 | ₹915.00 |
| 3,000+ | ₹1.53 | ₹4,590.00 |
| 6,000+ | ₹1.36 | ₹8,160.00 |
| 24,000+ | ₹1.20 | ₹28,800.00 |
| 51,000+ | ₹1.12 | ₹57,120.00 |
50 × ₹2.35
₹117.50
excl. GST
₹138.65 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XC6206P302MR
₹117.50 for 50 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+125℃
- Supply Current (Iq)
- 8uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Output Type
- Fixed
- Features
- Short Circuit Protection;Over Current Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.036 g
Overview
The XC6206 series are high-accuracy, low-power-consumption, high-voltage, positive voltage regulators fabricated using CMOS and laser trimming technology. The series is capable of supplying large output current with an extremely low dropout voltage. The series is compatible with low ESR ceramic capacitors. The foldback current limiting circuit also serves as an output current limiter and protection circuit for the output pin.
Applications
- Mobile phones
- Communication equipment
- Portable gaming consoles
- Cameras and video systems
- Battery-powered devices
Key features
- Maximum output current: 300mA (VIN = 4.3V, VOUT = 3.3V)
- Dropout voltage: 200mV @ IOUT = 100mA
- Input voltage range: up to 6.0V
- High accuracy: ±2%
- Low quiescent current: 8uA (typ.)
- Excellent line regulation
- Usable as voltage regulator and voltage reference
