UMW

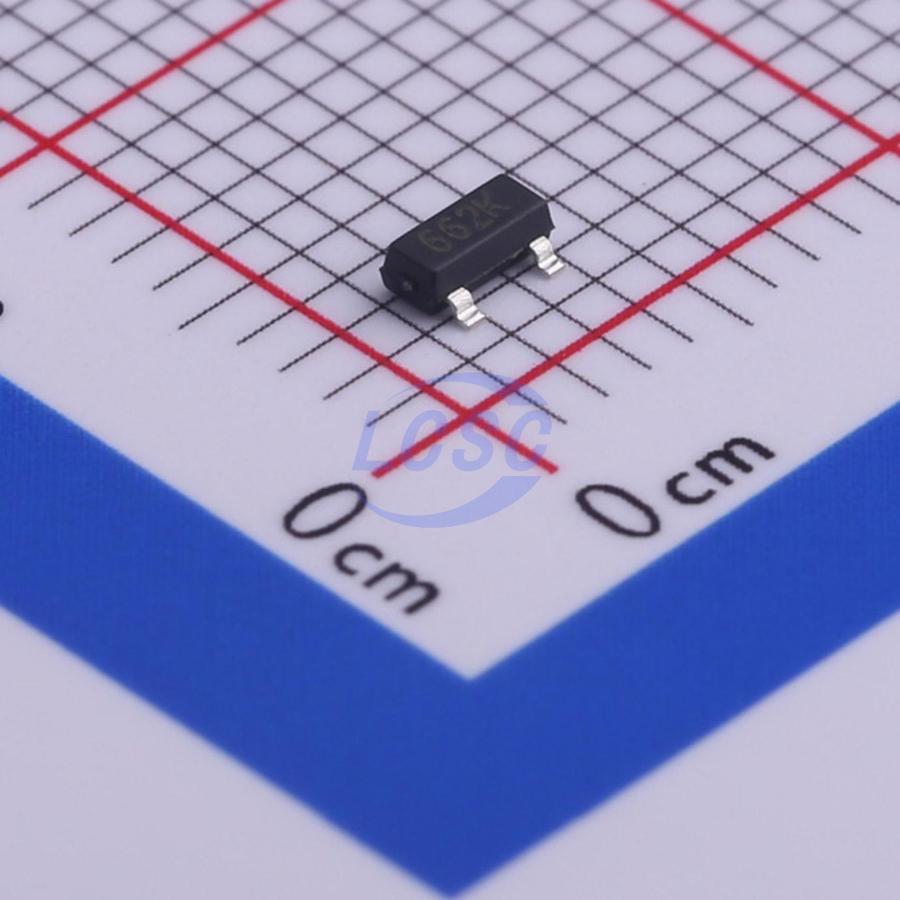

XC6206P332MRLinear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23
From
₹2.53
18,64,100 in stock
PUOLOPDatasheet (PDF)
XC6206P332MR
3.3V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23ROHS CompliantActive
Precise, Low Power Consumption, High Voltage Positive Voltage Regulators
- Manufacturer
- PUOLOP
- Manufacturer part #
- XC6206P332MR
- Store part #
- C479053
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,060 in stock
#C479053
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.22 | ₹84.40 |
| 200+ | ₹3.33 | ₹666.00 |
| 600+ | ₹2.86 | ₹1,716.00 |
| 3,000+ | ₹2.16 | ₹6,480.00 |
| 9,000+ | ₹1.91 | ₹17,190.00 |
| 21,000+ | ₹1.77 | ₹37,170.00 |
20 × ₹4.22
₹84.40
excl. GST
₹99.59 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XC6206P332MR
₹84.40 for 20 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 6V
- Output Type
- Fixed
- Features
- Over Current Protection;Short Circuit Protection
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.034 g
Overview
The XC6206 series are precise, low power consumption, high voltage; positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage. The XC6206 consists of a current limiter circuit, a driver transistor, a precision reference voltage and an error correction circuit. The series is compatible with low ESR ceramic capacitors. The current limiter's foldback circuit also operates as a short protect for the output current limiter and the output pin. Output voltage can be set internally by laser trimming technologies. It is selectable in 100mV increments within a range of 1.2V to 5.0V. SOT-89-3, SOT-23-3, SOT353 and SOT23-3B packages are available.
Applications
- Battery powered equipment
- Reference voltage sources
- Cameras, Video cameras
- Mobile phones
- Communication tools
Key features
- Output Voltage Range 1.2V to 5.0V (selectable in 100mV steps)
- Highly Accurate ± 2%
- Dropout Voltage 160mV @ 50mA (3.0V type)
- Low Power Consumption 2μA (TYP.)
- Maximum Output Current 100mA (Vin≥Vout+1V)
- Internal protector current limiter and short protector
- Small packages SOT-89-3, SOT-23-3, SOT23-3B, SOT353 and other required
