TOREX

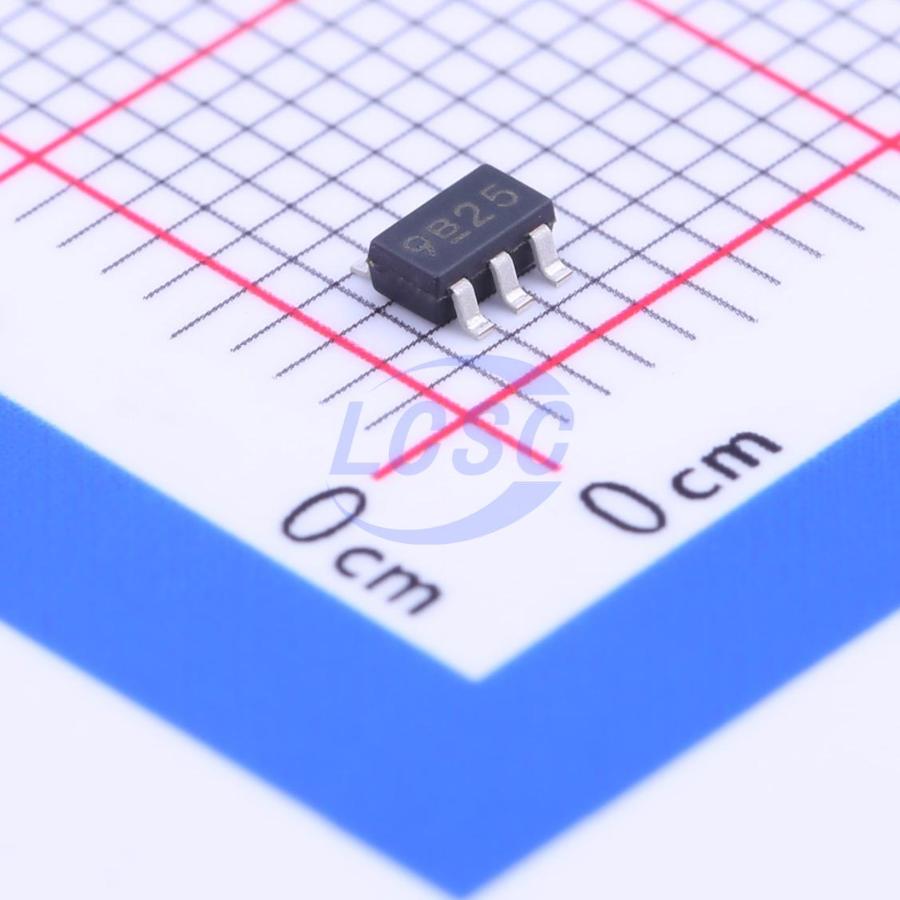

XC6209F332MR-G

3.3V Positive Fixed SOT-25-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-25-5ROHS3 CompliantActive

High Speed LDO Regulators Low ESR Cap.Compatible,Output ON/OFFControl

Manufacturer: TOREX
Manufacturer part #: XC6209F332MR-G
Store part #: C216624
Package / case: SOT-25-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,015 in stock

#C216624

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹34.77	₹173.85
50+	₹27.48	₹1,374.00
150+	₹24.36	₹3,654.00
500+	₹20.45	₹10,225.00
3,000+	₹17.99	₹53,970.00
6,000+	₹16.95	₹1,01,700.00

Quantity (min 5, multiples of 5)

5 × ₹34.77

₹173.85

excl. GST

₹205.14 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

XC6209F332MR-G

₹173.85 for 5 + GST

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Supply Current (Iq): 25uA
Output Configuration: Positive
Output Current: 300mA
Operating Voltage: 10V
Features: Enable control;Short Circuit Protection;Over Current Protection;Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.04 g

Overview

The XC6209 series are highly precise, low noise, positive voltage LDO regulators manufactured using CMOS processes. The series achieves high ripple rejection and low dropout and consists of a voltage reference, an error amplifier, a current limiter and a phase compensation circuit plus a driver transistor. Output voltage is selectable in 0.05V increments within a range of 0.9V~6.0V. The series is also compatible with low ESR ceramic capacitors which give added output stability. This stability can be maintained even during load fluctuations due to the excellent transient response of the series. The current limiter's foldback circuit also operates as a short protect for the output current limiter and the output pin. The CE function enables the output to be turned off, resulting in greatly reduced power consumption.

Applications

Smart phones / Mobile phones
Portable game consoles
Digital still cameras / Camcorders
Digital audio equipments
Reference voltage sources
Multi-function power supplies

Key features

Maximum Output Current: 150mA (300mA=XC6209 E to H types)
Dropout Voltage: 60mV @ 30mA : 200mV @ 100mA
Maximum Operating Voltage: 2.0V ~ 10V
Output Voltage Range: 0.9V ~ 6.0V(0.05V increments)
Highly Accurate: ±2% (VOUT>1.5V) ±30mV (VOUT≦1.5V)
Low Power Consumption: 25μA (TYP.)
Standby Current: Less than 0.1μA (TYP.)
High Ripple Rejection: 70dB (10kHz)
Operating Ambient Temperature: -40°C - +85°C
Low ESR Capacitor: Ceramic capacitor Compatible
Packages: SOT-25 USP-6B SOT-89-5
Environmentally Friendly: EU RoHS Compliant, Pb Free
