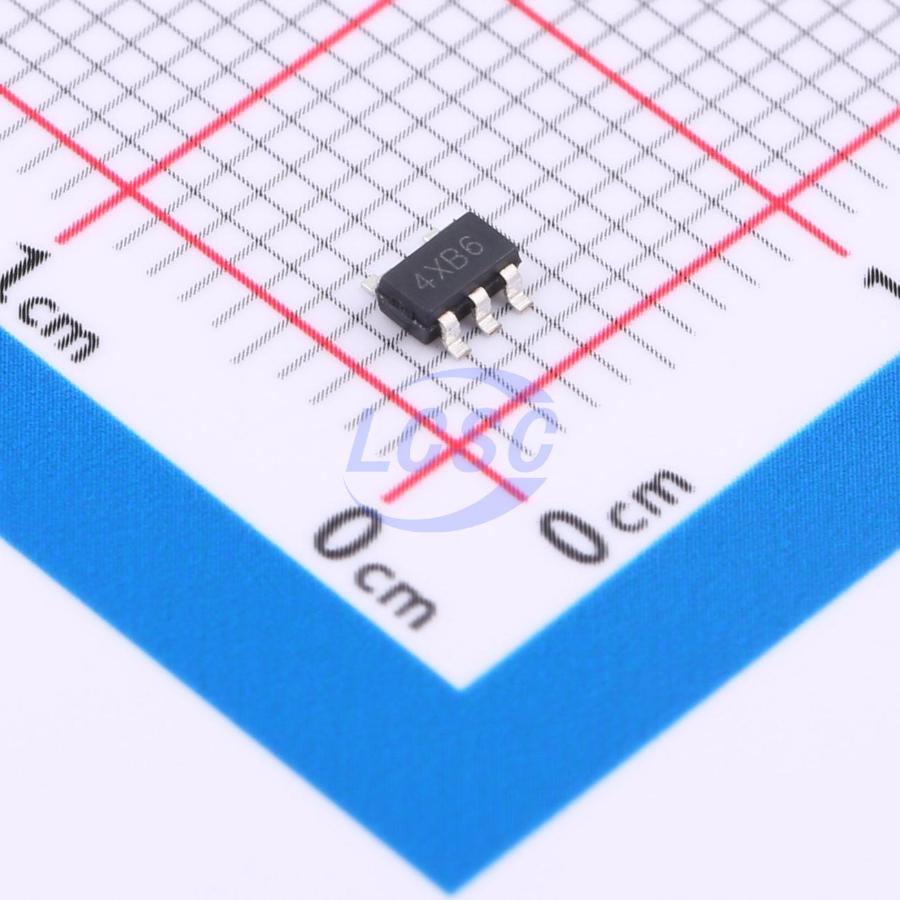

XC6219B122MR-MS
1.2V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
CMOS LDO Voltage Regulators
- Manufacturer
- MSKSEMI
- Manufacturer part #
- XC6219B122MR-MS
- Store part #
- C7473141
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,070 in stock
#C7473141
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.55 | ₹85.50 |
| 100+ | ₹6.75 | ₹675.00 |
| 300+ | ₹5.86 | ₹1,758.00 |
| 3,000+ | ₹5.19 | ₹15,570.00 |
| 6,000+ | ₹4.66 | ₹27,960.00 |
| 9,000+ | ₹4.38 | ₹39,420.00 |
10 × ₹8.55
₹85.50
excl. GST
₹100.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XC6219B122MR-MS
₹85.50 for 10 + GST
Specifications
- Output Voltage
- 1.2V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 40uA
- Output Configuration
- Positive
- Output Current
- 350mA
- Operating Voltage
- 8V
- Features
- Enable control
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.041 g
Overview
The XC6219 series are highly accurate, low noise, CMOS LDO Voltage Regulators. Offering low output noise, high ripple rejection ratio, low dropout and very fast turn-on times, the XC6219 series is ideal for today’s cutting edge mobile phone. Internally the XC6219 includes a reference voltage source, error amplifiers, driver transistors, current limiters and phase compensators. The output voltage is set by current trimming. Voltages are selectable in 100mV steps within a range of 1.2V to 5.0V. The XC6219 series is also fully compatible with low ESR ceramic capacitors, reducing cost and improving output stability. This high level of output stability is maintained even during frequent load fluctuations, due to the excellent transient response performance and high PSRR achieved across a broad range of frequencies. The CE function allows the output of regulator to be turned off, resulting in greatly reduced power consumption.
Applications
- Battery-powered equipment
- Communication equipment
- Mobile phones
- Portable games
- Cameras, Video cameras
- Reference voltage sources
Key features
- Low power consumption: 40uA (Typ.)
- Low voltage drop: 0.12V@ 100mA@VOUT = 3.3V (Typ.)
- Standby Mode: 0.1uA
- Low temperature coefficient
- High input voltage (up to 8V)
- Output voltage accuracy: tolerance ±2%
- SOT23 - 5、SOT89 package
