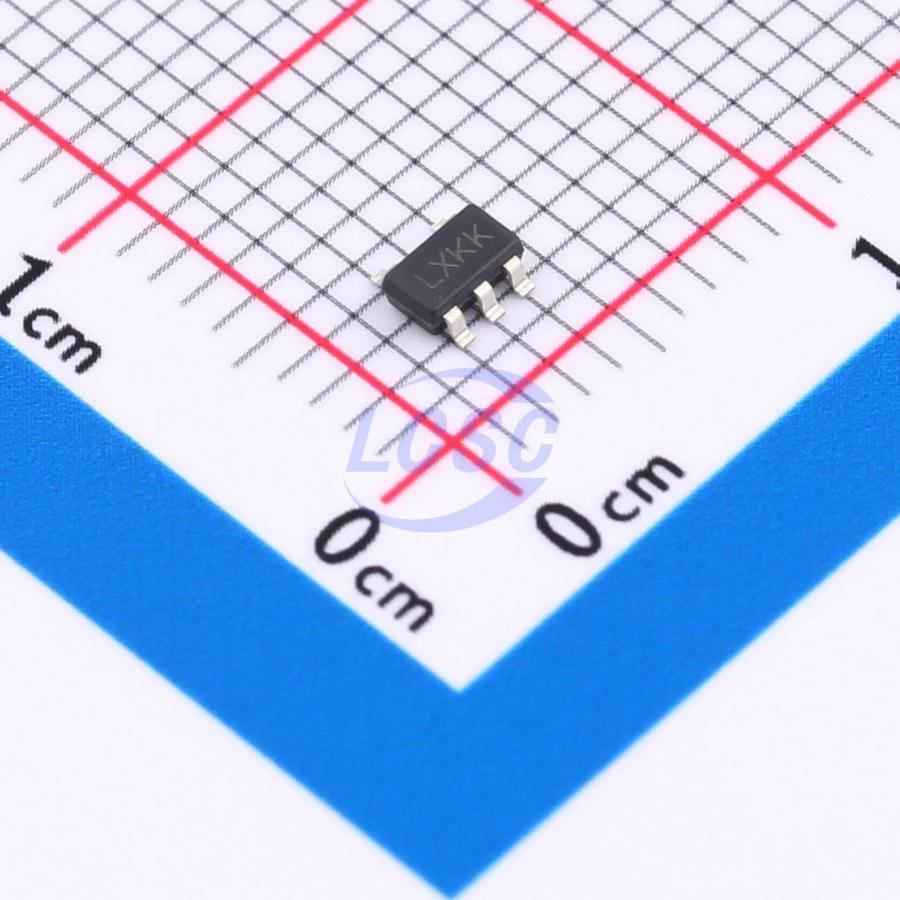

XC6219B182MR

The XC6219xx series are high-accuracy, low-noise, fast-response LDO linear regulators fabricated using a CMOS process. These regulators integrate a fixed reference voltage, error correction circuit, current limiting circuit, phase compensation circuit, and a low on-resistance MOSFET, achieving high ripple rejection, low output noise, and fast-response low-dropout performance. The series is compatible with ceramic capacitors — smaller in size than tantalum capacitors — and eliminates the need for a 0.1μF bypass capacitor, helping to save board space and reduce cost. With high-accuracy output stability and fast transient response, the series effectively handles load current fluctuations, making it particularly well-suited for handheld devices and RF products. Output can be disabled via the CE pin on the chip; the typical quiescent current in shutdown mode is only 0.1μA, significantly reducing power consumption.

Applications

• Smartphones/Mobile Phones
• Bluetooth and Other RF Products
• Digital Cameras/Camcorders
• Portable Consumer Devices
• Battery-Powered Equipment

Key features

• High-accuracy output voltage: ±2.5%
• Strong load capability: Iout = 300mA at Vin = 4.3V and Vout = 3.3V
• Selectable output voltage: 1.8V~5.0V
• Ultra-low quiescent current: typical = 25μA
• Ceramic capacitor compatible
• Ultra-low shutdown current: typical = 0.1μA
• Package: SOT89-5, SOT23-5
• Good line regulation: typical = 0.2%/V
