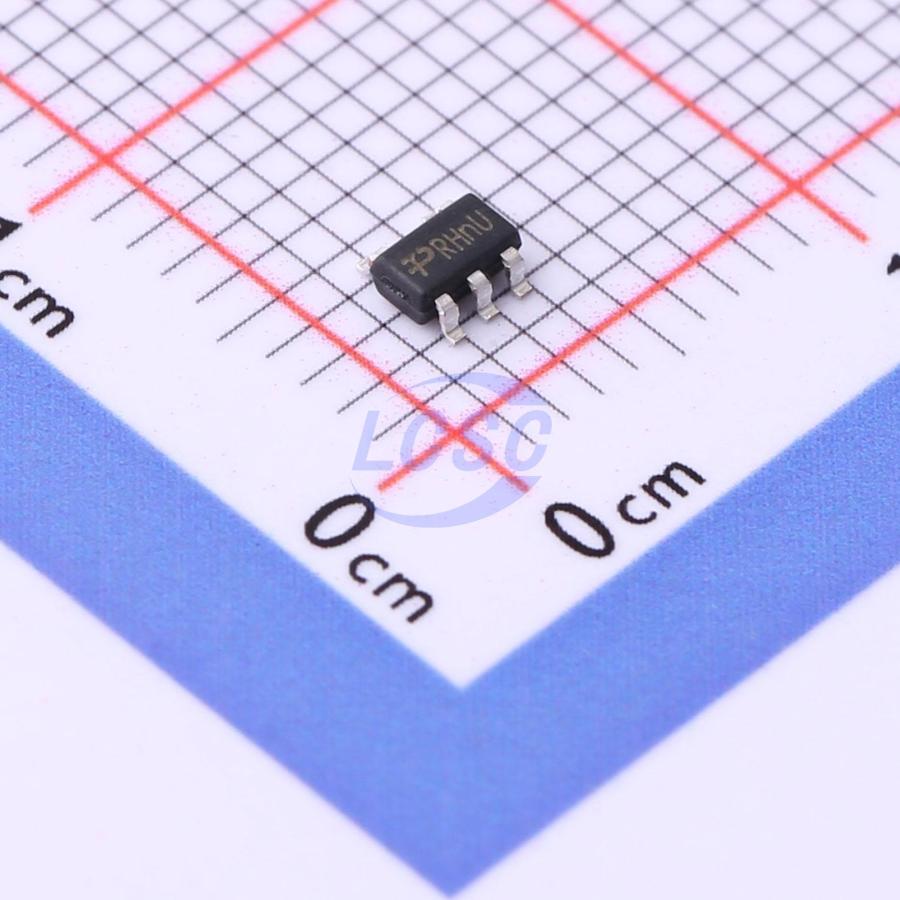

XC6220B331MR

3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

SOT-23-5RoHSActive

900 mA, 25 μA, High PSRR Voltage Regulator

Manufacturer: TECH PUBLIC
Manufacturer part #: XC6220B331MR
Store part #: C3040644
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

7,555 in stock

#C3040644

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹22.05	₹110.25
50+	₹17.65	₹882.50
150+	₹15.20	₹2,280.00
500+	₹13.73	₹6,865.00
6,000+	₹11.79	₹70,740.00
9,000+	₹11.59	₹1,04,310.00

Quantity (min 5, multiples of 5)

5 × ₹22.05

₹110.25

excl. GST

₹130.10 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

XC6220B331MR

₹110.25 for 5 + GST

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Supply Current (Iq): 25uA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 900mA
Features: Enable control;Over Current Protection;Thermal shutdown;Short Circuit Protection
Output Type: Fixed

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.035 g

Overview

The XC6220B Series are a group of voltage regulators manufactured by CMOS technology with high ripple rejection, ultra-fast transient and low dropout voltage, which large output currents even when the difference of the input-output voltage is small. Each of the XC6220B of a high-precision voltage reference, error correction circuit, and a current limited output driver. Thus the series very suitable for the battery-powered equipments, wireless communication applications, industry equipments and so on.

Applications

Battery powered systems
Portable instrumentations
PC peripherals
CD/DVD-ROM, CD/RW
Wireless devices
Battery charger

Key features

25μA Ground Current at no Load
±2% Output Accuracy
900mA Output Current
Wide Operating Input Voltage Range: 1.2V to 5.5V
Dropout Voltage: 0.45V at 800mA/ Vout 3.3V
Support Fixed Output Voltage 1.2V, 1.5V, 1.6V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V, 3.6V
Stable with Ceramic or Tantalum Capacitor
Current Limit Protection
Over Temperature Protection
SOT23-5 Packages
