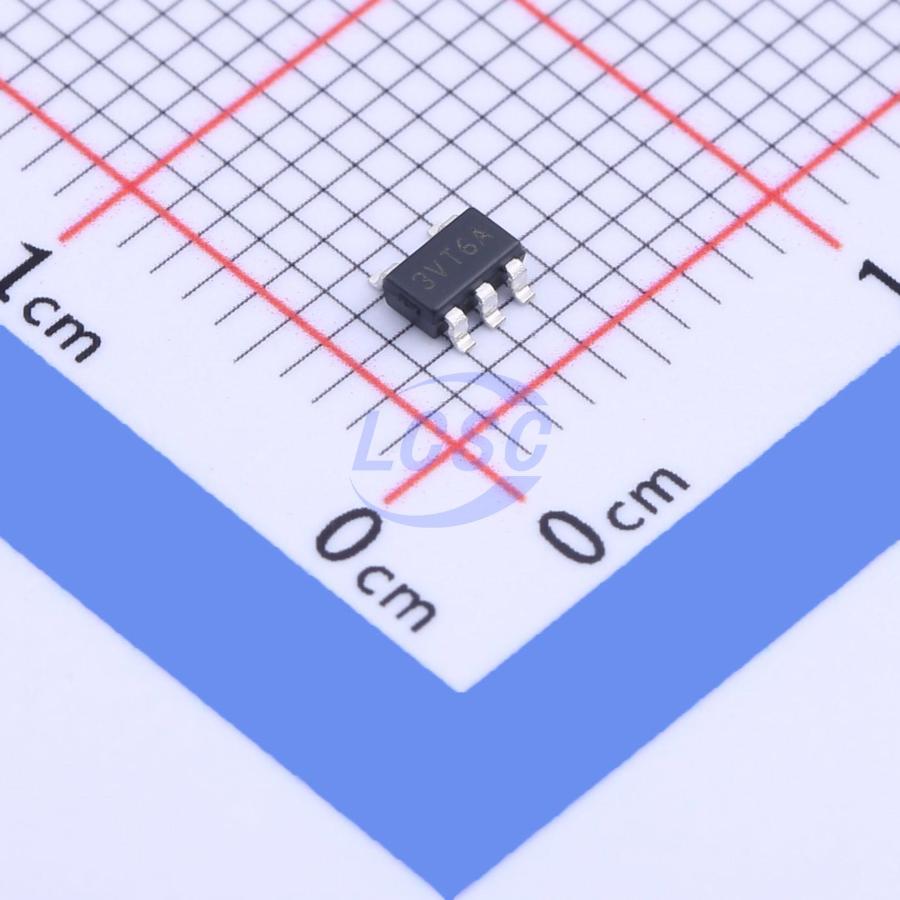

XC6221A252MR

The XC6221 series is a high accuracy, low noise, high speed, low dropout CMOS regulator with high ripple rejection. The series includes a reference voltage source, an error amplifier, a current limiter, and a phase compensation circuit. The CE function enables the entire circuit to be in stand - by state by inputting low level signal. As for the XC6221B/D stand - by mode, the electric charge at the output capacitor (Cₗ) will be discharged by the internal auto - discharge switch, and as a result the VOUT pin quickly returns to the Vₛₛ level. The output stabilization capacitor (Cₗ) is also compatible with low ESR ceramic capacitors. Output voltage is selectable in 0.05V increments within a range of 0.80V ~ 5.00V using the laser trimming technology set in factory. The current limiter's fold - back circuit also operates as a short circuit protection and an output current limiter at the output pin. The series achieves a fast response with only 25μA of low power consumption. Also the series has low dropout voltage characteristics, which is 80mV at Iₒᵤₜ = 100mA and Vₒᵤₜ = 3.0V. With the use of small USP - 4 and ultra small USPN - 4 packages, a small footprint circuit can be designed.

Applications

• Smart phones / Mobile phones
• Portable game consoles
• Digital still cameras / Camcorders
• Digital audio equipments
• Mobile devices / terminals

Key features

• Maximum Output Current: 200mA < Up to 250mA (TYP.)
• Dropout Voltage: 80mV @ Iₒᵤₜ = 100mA, Vₒᵤₜ = 3.0V
• Operating Voltage Range: 1.6V ~ 6.0V
• Output Voltage Range: 0.80V ~ 5.00V (0.05V increments)
• Accuracy:
• ±2% (Vₒᵤₜ ≥ 1.50V) (Standard)
• ±30mV (Vₒᵤₜ ≤ 1.45V) (Standard)
• +1% (Vₒᵤₜ ≥ 2.00V) (High Accuracy)
• ±20mV (Vₒᵤₜ ≤ 1.95V) (High Accuracy)
• Low Power Consumption: 25μA (TYP.)
• Stand - by Current: Less than 0.1μA
• High Ripple Rejection: 70dB @ 1kHz
• CE Function: CE Active High, Standby current below 0.1μA, Cₗ High - Speed Auto - Discharge (XC6221B/D), CE Pin internally pulled - down (XC6221C/D)
• Low ESR Capacitor: 1.0μF ceramic capacitor
• Low Output Noise
• Operating Ambient Temperature: - 40°C - +85°C
• Packages: USP - 4, SOT - 25, SSOT - 24, USPN - 4
• EU RoHS Compliant, Pb Free
