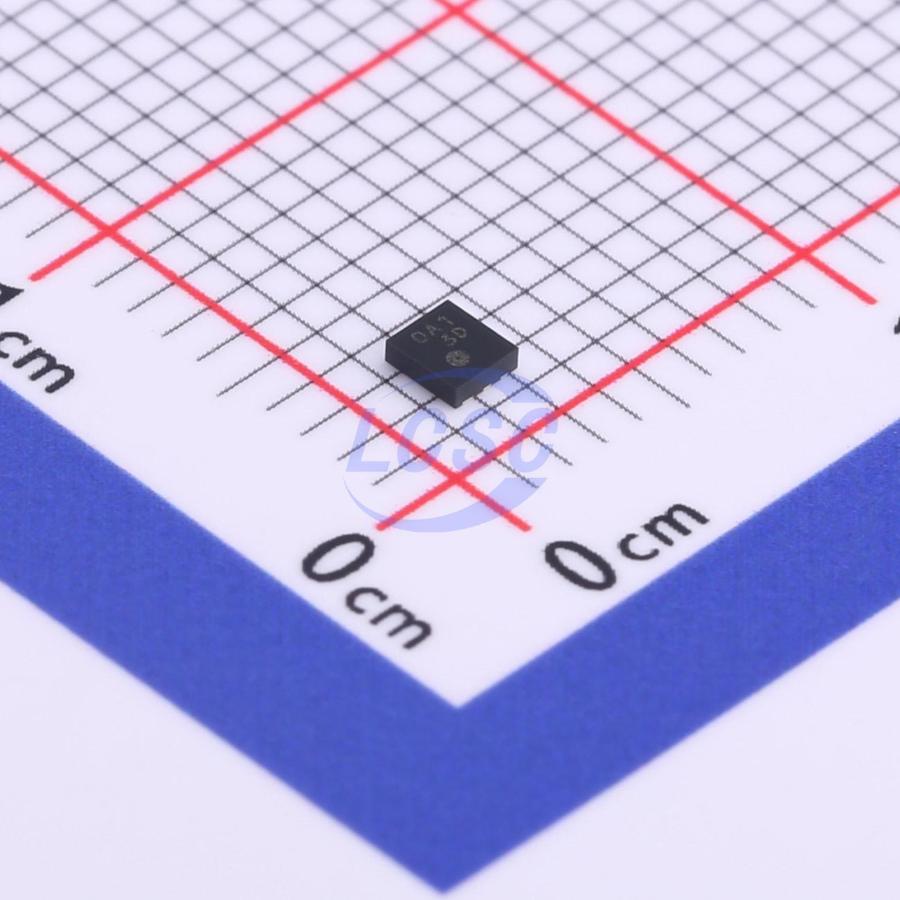

XC6230H001ER-G

The XC6230 series are low on-resistance / low dropout voltage, highly precise, low noise, high PSRR, and large current High Speed LDO regulator IC. A built-in 0.17Ω low ON-resistance Pch driver transistor which can output up to a maximum output current 2.0A are also enclosed in a small surface-mount PKG, even in applications that input and output voltage difference is you use a very small state, it is possible to use in the space-saving. Then, the output voltage is possible to set the output voltage value to 1.2V~5.0V by connecting the external resistors to VOFB terminal. The over current protection circuit will operate when the output current reaches its current limit. The thermal shutdown circuit will operate when the junction temperature reaches its limit temperature. The current limit is possible to arbitrarily set in a range of external resistor in 0.3~2.5A to LM terminal. The inrush current prevention circuit perform the function of suppressing the variation of the VIN line and It is possible to suppress the current (inrush current), which is charged in the output capacitor (CL) during IC start rising (when the IC control in CE). In addition, the CE function enables the output to be turned off and the IC becomes a stand-by mode resulting in greatly reduced power consumption. When in standby mode, the output capacitor (CL) to be discharged at high speed it can be returned to the VSS level. The IC has further built-in reverse current prevention circuit, to prevent backflow current when the voltage state of more than input terminal (VIN) to the output terminal (VOUT).

Applications

• Industrial equipment
• Mobile modules
• Wireless modules

Key features

• Output current: 2.0A
• Current Limit setting range: 0.3A~2.5A
• Dropout Voltage(USP - 6C): 0.17V @ IOUT = 1.0A / VOUT_SET = 3.3V
• Dropout Voltage(SOP - 8FD): 0.23V @ IOUT = 1.0A VOUT_SET = 3.3V
• Input voltage range: 1.7~6.0V
• Adjustable Output Voltage Accuracy: 1.2V ± 1.0%
• Output voltage setting range: 1.2V~5.0V
• Supply current: 45μA
• Addition function: Reverse Current Protection(Option), Inrush Current Protection, Output Voltage adjustable, CL High Speed Discharge(H type), Current Limit adjustable, Thermal shutdown (Detection Temp: 150°C, Release Temp: 125°C), Current limit Ceramic capacitor (4.7μF)
• Operating Ambient Temperature: -40°C~+105°C
• Packages: USP - 6C, SOP - 8FD
• Environment friendly features: EU RoHS Directive compliant, Pb free
