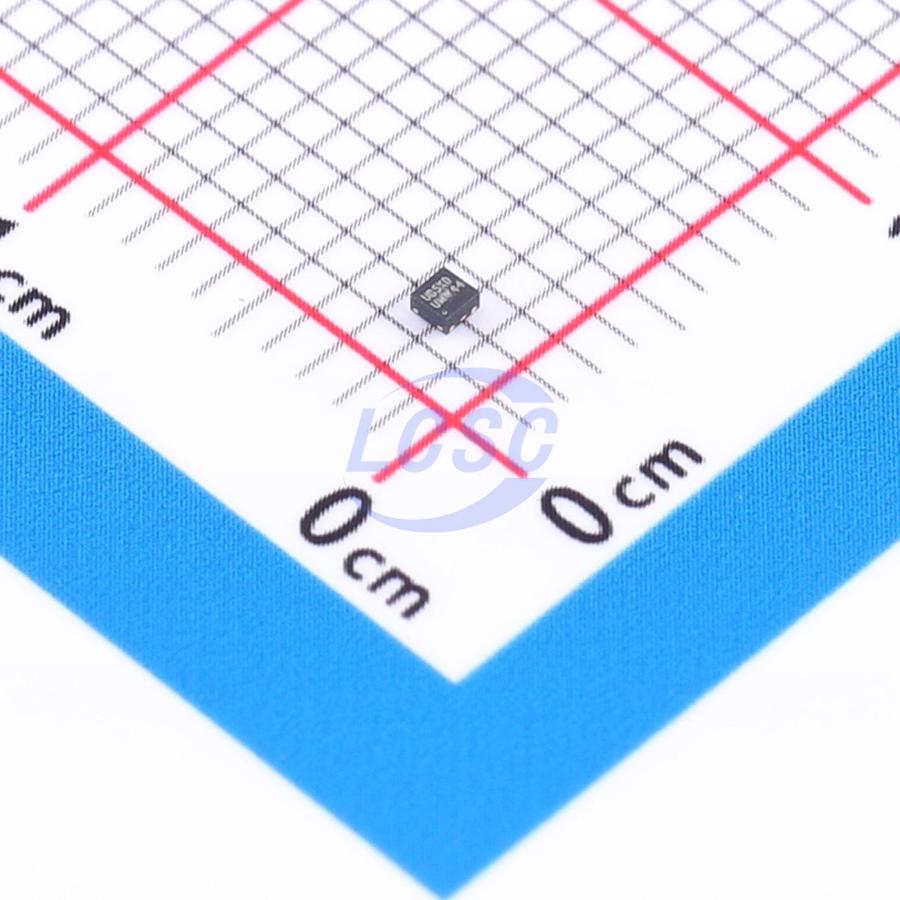

XC6232B362DR(UMW)
3.6V Positive Fixed DFN-4(1x1) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
DFN-4(1x1)RoHSActive
- Manufacturer
- UMW
- Manufacturer part #
- XC6232B362DR(UMW)
- Store part #
- C53463886
- Package / case
- DFN-4(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,020 in stock
#C53463886
Stock & price checked 39 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.30 | ₹63.00 |
| 100+ | ₹4.95 | ₹495.00 |
| 300+ | ₹4.27 | ₹1,281.00 |
| 1,000+ | ₹3.77 | ₹3,770.00 |
| 5,000+ | ₹3.36 | ₹16,800.00 |
| 10,000+ | ₹3.16 | ₹31,600.00 |
10 × ₹6.30
₹63.00
excl. GST
₹74.34 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
XC6232B362DR(UMW)
₹63.00 for 10 + GST
Specifications
- Output Voltage
- 3.6V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Output Configuration
- Positive
- Output Current
- 400mA
- Operating Voltage
- 10V
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Short Circuit Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.012 g
Overview
The XC6232 series is a high-accuracy, low-dropout, low-current three-terminal step-down voltage regulator. It supports input voltages up to 10V and delivers high output current with excellent regulation performance even at minimum dropout voltage. It integrates a high-accuracy voltage reference and overcurrent protection for the output power transistor. The enable pin EN controls the chip's standby mode, significantly reducing quiescent current consumption, making it particularly suitable for battery-powered applications with stringent runtime requirements. Available packages include SOT23, SOT23-5, SOT89, and DFN1X1-4.
Applications
- 1 - 2 cell Li-ion portable devices
- 2 - 6 cell dry battery powered systems
- Bluetooth or RF systems
- Consumer products
Key features
- Maximum operating voltage: 10V
- Low quiescent current (typical 2μA at 6V)
- Low dropout voltage (75mV at 50mA, 3.3V output)
- Built-in overcurrent and short-circuit protection
- EN pin standby function
- High-accuracy output voltage: ±2%
- Selectable output voltage: 1.5V ~ 3.6V
- Power supply rejection ratio: 76dB at 1KHz
- Maximum output current: 450mA
- Low output noise: 70μVRMS at 10 ~ 100KHz
