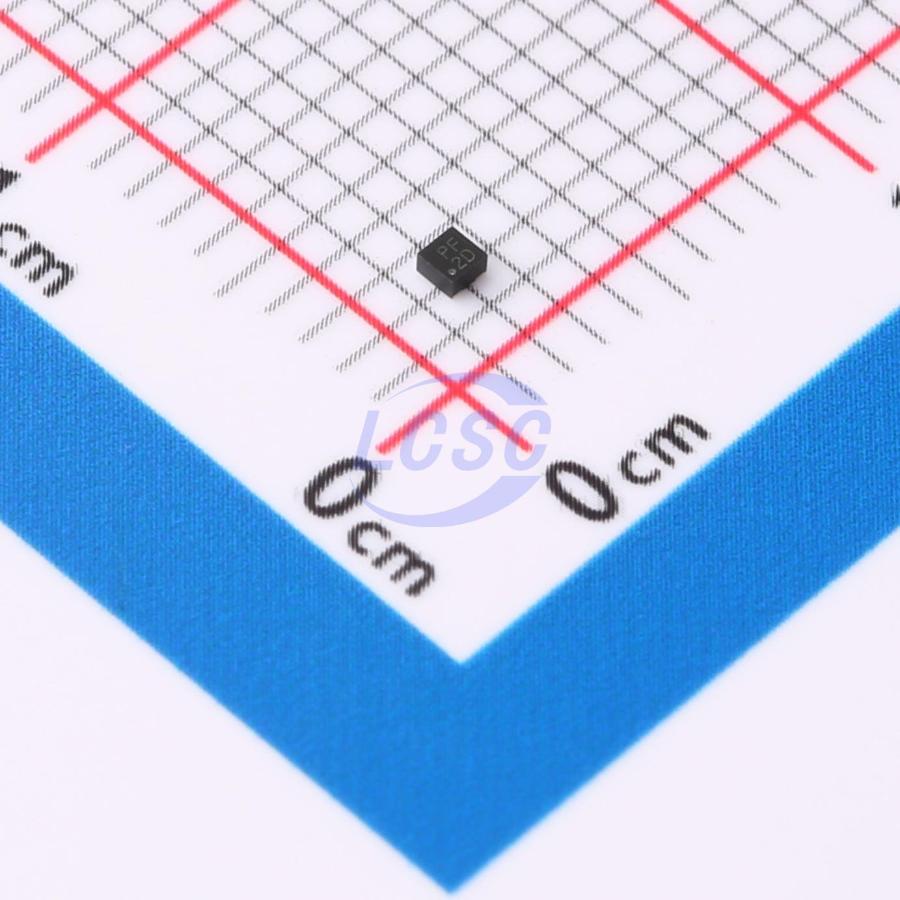

XC6504A2519R-G
2.5V Positive Fixed USPN-4B02 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
USPN-4B02ROHS3 CompliantActive
Ultra-low power small voltage regulator
- Manufacturer
- TOREX
- Manufacturer part #
- XC6504A2519R-G
- Store part #
- C7415533
- Package / case
- USPN-4B02
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,040 in stock
#C7415533
Stock & price checked 28 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.32 | ₹176.60 |
| 50+ | ₹29.70 | ₹1,485.00 |
| 150+ | ₹27.29 | ₹4,093.50 |
| 500+ | ₹24.29 | ₹12,145.00 |
| 3,000+ | ₹20.90 | ₹62,700.00 |
| 6,000+ | ₹20.10 | ₹1,20,600.00 |
5 × ₹35.32
₹176.60
excl. GST
₹208.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XC6504A2519R-G
₹176.60 for 5 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 600nA
- Output Configuration
- Positive
- Operating Voltage
- 6V
- Output Current
- 150mA
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Short Circuit Protection;Output discharge
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.044 g
Overview
The XC6504 series is a highly accurate CMOS voltage regulator that achieves very low supply current operation of 0.6 μA. Even output current is 1 μA (when light load), the XC6504 can provide high accurate outputs, which is ideally suited for the applications to draw less output current. The usage of super small package USPN - 4B02 (0.75×0.95mm) and the advantage of capacitor - less stable operation can contribute the board space saving outstandingly. The IC consists of a reference voltage source, an error amplifier, a driver transistor, over - current protection circuit, and a phase compensation circuit. Output voltage is fixed internally by laser trimming technology and can be selectable in 0.1V increments within the range of 1.1V to 5.0V.
Applications
- Mobile devices / terminals
- Wireless LAN
- Modules (wireless, cameras, etc.)
Key features
- Supply Current: 0.6μA
- Input Voltage Range: 1.4V ~ 6.0V
- Output Voltage Range: 1.1V ~ 5.0V (0.1V increments)
- Output Accuracy: ±0.02V＠VOUT＜2.0V ±1%＠VOUT≧2.0V
- Temperature Stability ±50ppm/℃
- Maximum Output Current: 150mA
- Low On Resistance 3.3Ω＠VOUT = 3.0V
- Protection Functions: Current Limiter
- CE Function CL Auto Discharge ON/OFF Logic = Enable High
- Output Capacitor Low ESR Ceramic Capacitor (CL Capacitor - Less Compatible)
- Operating Ambient - 40°C - 85°C
- Packages: USPN - 4B02 SSOT - 24 SOT - 25 USPQ - 4B04
- Environmentally Friendly: EU RoHS Compliant, Pb Free
