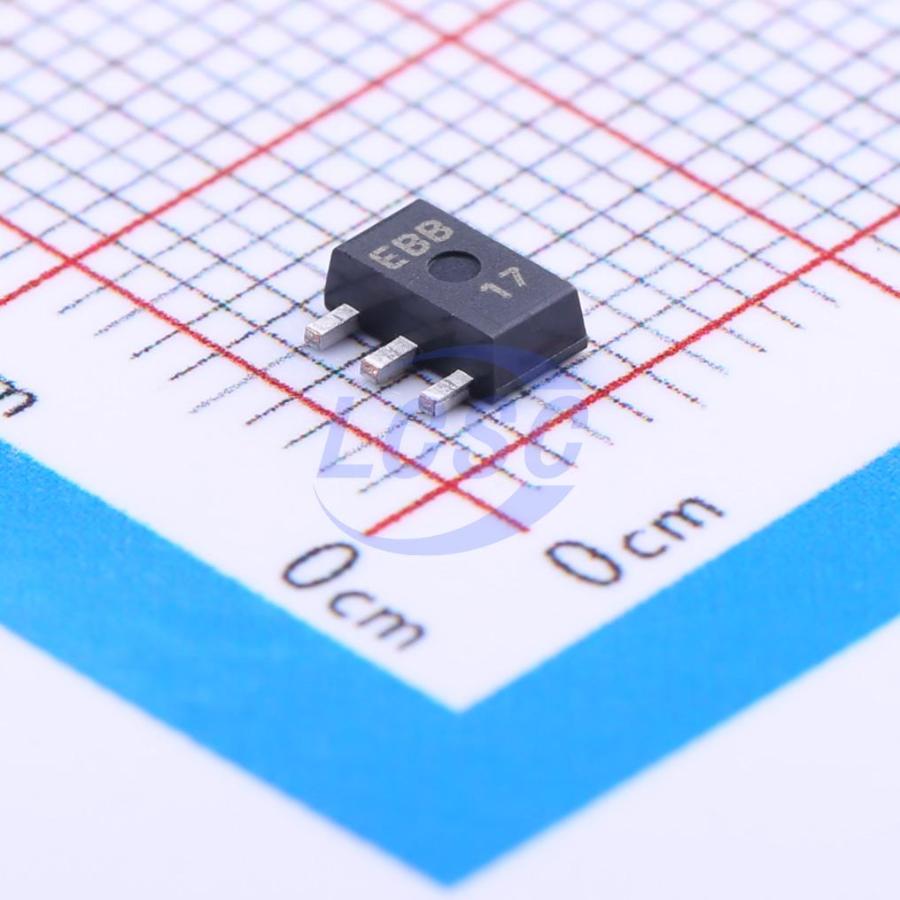

XC6902N501PR-G
5V Negative Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-89-3ROHS CompliantActive
-16V Input Three Terminal Negative Voltage Regulator
- Manufacturer
- TOREX
- Manufacturer part #
- XC6902N501PR-G
- Store part #
- C165898
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,655 in stock
#C165898
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹92.70 | ₹92.70 |
| 10+ | ₹74.91 | ₹749.10 |
| 30+ | ₹66.22 | ₹1,986.60 |
| 100+ | ₹57.31 | ₹5,731.00 |
| 500+ | ₹46.03 | ₹23,015.00 |
| 1,000+ | ₹43.42 | ₹43,420.00 |
1 × ₹92.70
₹92.70
excl. GST
₹109.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
XC6902N501PR-G
₹92.70 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 200uA
- Output Configuration
- Negative
- Output Current
- 200mA
- Operating Voltage
- 16V
- Features
- Built-in soft-start;Over Current Protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.127 g
Overview
The XC6902 Series is a negative voltage CMOS regulator which includes a reference voltage source, error amplifiers, driver transistors, current limiters and phase compensators. XC6902 is a 3 terminal negative voltage regulator (without CE pin) which is capable of accepting -16V input. The over current protection circuit will operate when the output current reaches limit current. The thermal shutdown circuit will operate when the junction temperature reaches limit temperature.
Applications
- Negative power supplies
- Modules (Wireless LAN, Digital still cameras, etc)
- Digital still cameras
- Mobile devices / terminals
Key features
- Maximum Output Current: 200mA
- Input Voltage Range: -2.4 ～ -16V
- Output Voltage Range: -2.5V, -2.6V, -3.0V, -3.3V, -4.0V, -4.5V, -5.0V, -6.0V, -12.0V
- Accuracy: ±1.5% for -2.0V～-12V
- Temperature Stability: TYP. ±50ppm/℃
- Dropout Voltage: 400mV＠IOUT = 100mA
- Low Power Consumption: 100μA Current Limit 350mA TYP. Foldback
- Thermal Shutdown (150°C)
- Ceramic Capacitor Compatible
- Operating Ambient Temperature: -40°C - +85°C
- Packages: SOT - 23, SOT - 89, USP - 6C
- Environmentally Friendly
