TOREX

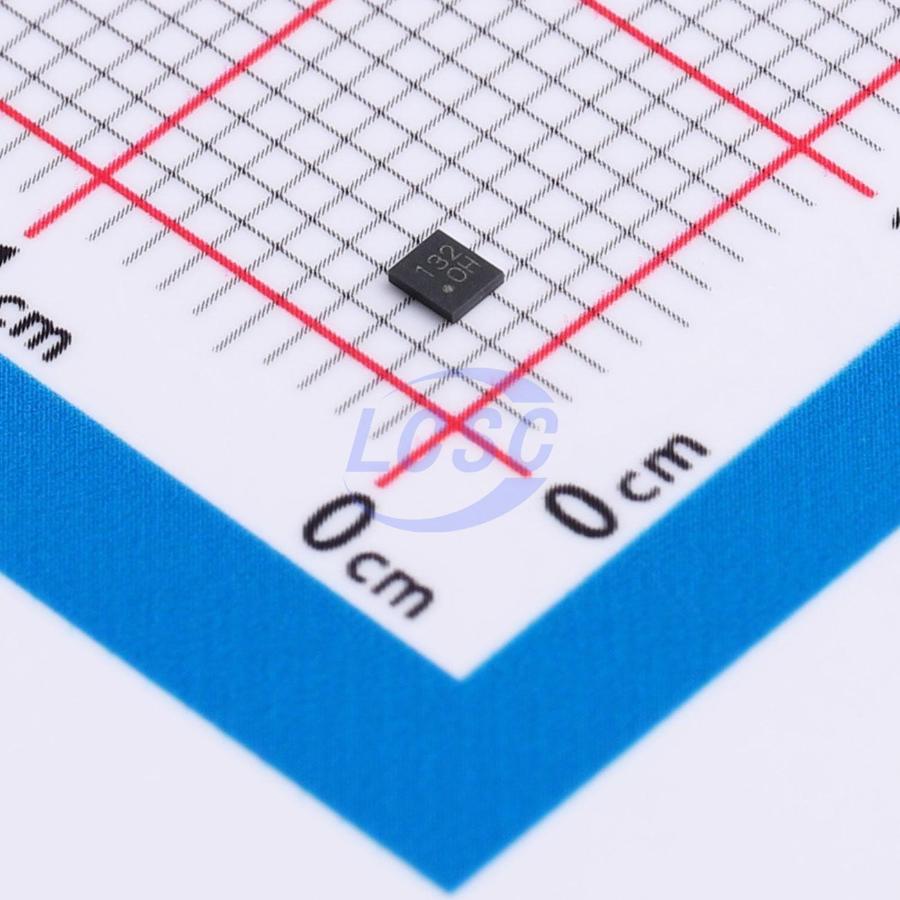

XC8111AA018R-G

1 Active High 1A XFDFN-6-EP Power Distribution Switches, Load Drivers RoHS

XFDFN-6-EPROHS3 CompliantActive

Load switch IC with ideal diode function

Manufacturer: TOREX
Manufacturer part #: XC8111AA018R-G
Store part #: C17462394
Package / case: XFDFN-6-EP
Category: Power Distribution Switches, Load Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,672 in stock

#C17462394

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹76.48	₹76.48
10+	₹61.06	₹610.60
30+	₹53.45	₹1,603.50
100+	₹45.86	₹4,586.00
500+	₹41.29	₹20,645.00
1,000+	₹39.11	₹39,110.00

Quantity (min 1)

1 × ₹76.48

₹76.48

excl. GST

₹90.25 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

XC8111AA018R-G

₹76.48 for 1 + GST

Specifications

Operating Temperature: -40℃~+105℃
Features: Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Reverse current blocking;Soft-start
number of channels: 1
Control Input Logic: Active High
Maximum Continuous Current: 1A
RDS(on): 410mΩ
Operating Voltage: 1.5V~6V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.126 g

Overview

The XC8110/XC8111 series are load switch ICs that reproduce ideal diodes, and equipped with functions including chip enable (CE), over current limit, inrush current limit, and thermal shutdown. These ICs perform regulation control to ensure that their VOUT pin voltage is a value of V_IN - 20 mV, so they can suppress heat generation to a greater extent than general diodes. When a voltage is applied at the VOUT pin and it becomes equal to or higher than V_IN - 20 mV, the driver FET will turn OFF. Furthermore, when the VOUT pin voltage becomes equal to or higher than V_IN + 20 mV, the IC’s internal power supply will switch from V_IN to VOUT, which can prevent backflow current flowing from the VOUT pin through the parasitic diode to the V_IN pin, while also interrupting current flowing from V_IN to the IC. This makes it possible to easily achieve an output voltage OR circuit, and to reduce battery consumption for backup purposes. This IC has been certified by the international standard IEC 62368-1 that defines safety requirements, and it is possible to simplify the single failure test of the subsequent circuits. By adopting the foldback method for over current limiting, the short-circuit current can be suppressed to 50 mA, and it can be used safely even in the event of a short-circuit. In addition, the thermal shutdown function can prevent the IC from being destroyed by heat.

Applications

Wearable devices
Smart card devices
IoT devices
OR Application
Backup power supply
Replacement from diode

Key features

Input Voltage Range 1.5V ~ 6.0V
Output Current XC8110 : 500mA (V_IN > 1.7V) XC8111 : 1000mA (V_IN > 2.0V)
Stand-by Current 0.65μA
Quiescent Current 3.6μA
Reverse Bias Current 0.8μA
Forward Voltage 20mV
Over current limit XC8110 : 850mA XC8111 : 1700mA
Short current 50mA
Function Ideal diode function Reverse Protection Inrush current prevention
Protective function Over current limit Thermal shutdown function
Standard IEC 62368-1:2018 Certified
Operating Ambient Temperature -40℃ - 105℃
Package WLP-4-02 (0.82x0.82x0.5mm) SOT-25 (2.8x2.9x1.3mm) USP-6B06 (1.5x1.8x0.33mm)
