XINGLIGHTDatasheet (PDF)

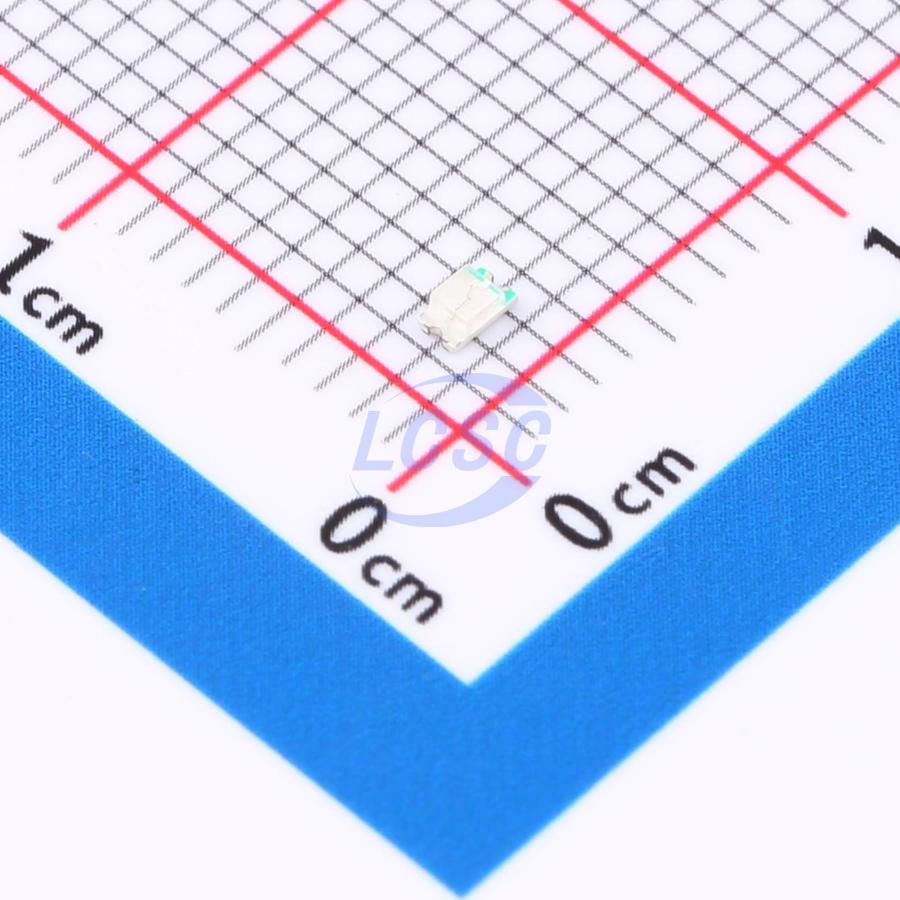

XL-2012UBC
Blue 470nm LED Indication - Discrete 3.2V 0805
Popular0805ROHS CompliantActive
LED BLUE WATER CLEAR 0805 SMD
- Manufacturer
- XINGLIGHT
- Manufacturer part #
- XL-2012UBC
- Store part #
- C965817
- Package / case
- 0805
- Category
- LED Indication - Discrete
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11,15,100 in stock
#C965817
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 100+ | ₹1.03 | ₹103.00 |
| 1,000+ | ₹0.8335 | ₹833.50 |
| 3,000+ | ₹0.7409 | ₹2,222.70 |
| 9,000+ | ₹0.688 | ₹6,192.00 |
| 51,000+ | ₹0.635 | ₹32,385.00 |
100 × ₹1.03
₹103.00
excl. GST
₹121.54 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XL-2012UBC
₹103.00 for 100 + GST
Specifications
- Installation method
- Top-mount
- Peak Wavelength
- 470nm
- Lens Color
- Water Clear
- Luminous Intensity
- 260mcd
- Viewing Angle
- 120°
- Forward Current
- 20mA
- Illumination Color
- Blue
- Lamp Holder Type
- 2mm x 1.2mm square LED
- Voltage - Forward(Vf)
- 3.2V
- Operating Temperature
- -40℃~+85℃
- Diode Configuration
- Discrete Diode
- Wavelength
- 460nm~475nm
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 100 (multiples of 100)
- Unit weight
- 0.025 g
Overview
Applications
- Medical devices: endoscopes, pulse oximeters
- Automotive electronics: backlit button lights, indicator lights
- Industrial products: electronic dashboards, industrial equipment
- Smart home: white goods, seven-segment LED displays
- Communication products: mobile phone button lights, routers, set-top boxes
Key features
- Dimensions (L/W/H): 2.0×1.2×0.8mm
- Emission color / lens: Blue / water clear
- RoHS compliant
- Moisture Sensitivity Level (MSL): Level 3
- EIA standard packaging
- Compatible with SMT automated assembly
- Compatible with reflow soldering process
