XINGLIGHTDatasheet (PDF)

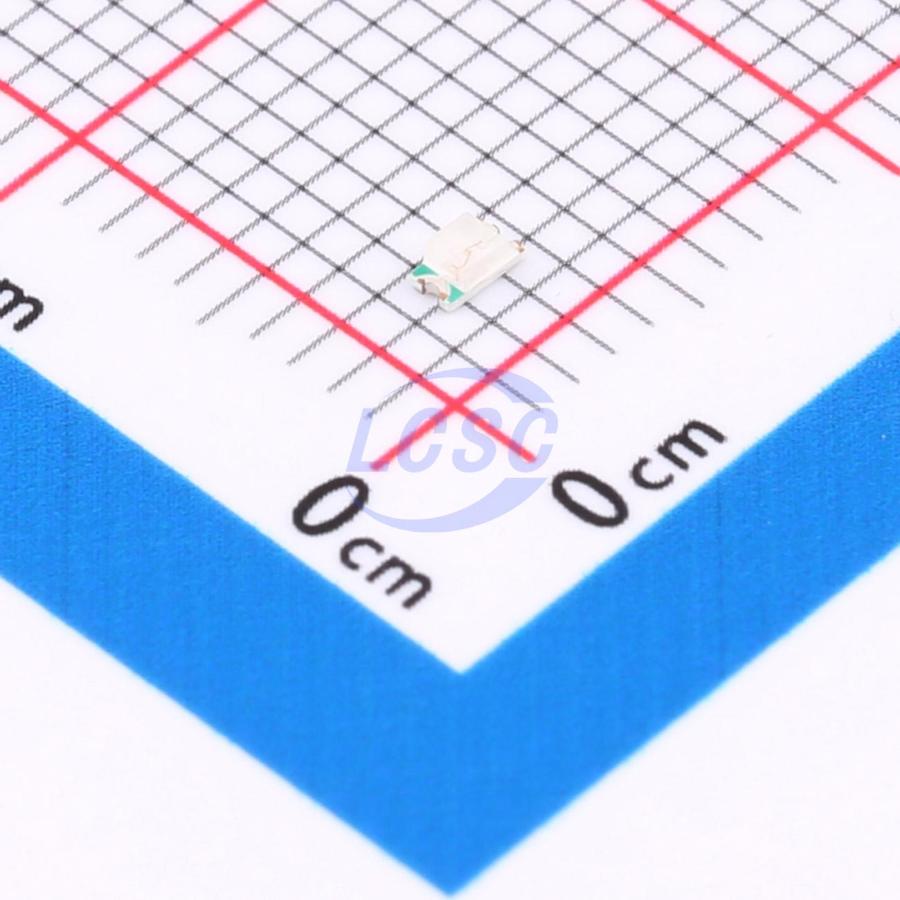

XL-2012UGC
Emerald Green 525nm LED Indication - Discrete 3.2V 0805
Popular0805ROHS CompliantActive
LED EMERALD GREEN WATER CLEAR 0805 SMD
- Manufacturer
- XINGLIGHT
- Manufacturer part #
- XL-2012UGC
- Store part #
- C965815
- Package / case
- 0805
- Category
- LED Indication - Discrete
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14,83,200 in stock
#C965815
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 100+ | ₹0.8732 | ₹87.32 |
| 1,000+ | ₹0.7144 | ₹714.40 |
| 3,000+ | ₹0.6218 | ₹1,865.40 |
| 9,000+ | ₹0.5821 | ₹5,238.90 |
| 51,000+ | ₹0.5424 | ₹27,662.40 |
100 × ₹0.8732
₹87.32
excl. GST
₹103.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XL-2012UGC
₹87.32 for 100 + GST
Specifications
- Installation method
- Top-mount
- Peak Wavelength
- 525nm
- Lens Color
- Water Clear
- Luminous Intensity
- 750mcd
- Viewing Angle
- 120°
- Forward Current
- 20mA
- Illumination Color
- Emerald Green
- Lamp Holder Type
- 2mm x 1.2mm square LED
- Voltage - Forward(Vf)
- 3.2V
- Operating Temperature
- -40℃~+85℃
- Diode Configuration
- Discrete Diode
- Wavelength
- 515nm~535nm
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 100 (multiples of 100)
- Unit weight
- 0.025 g
Overview
Applications
- Medical devices: endoscopes, pulse oximeters
- Automotive electronics: backlit button lights, indicator lights
- Industrial products: electronic dashboards, industrial equipment
- Smart home: white goods, seven-segment LED displays
- Communication products: mobile phone button lights, routers, set-top boxes
Key features
- Dimensions (L/W/H): 2.0×1.2×0.8mm
- Emission color / encapsulant: Emerald green / clear
- RoHS-compliant, halogen-free process
- Moisture Sensitivity Level (MSL): Level 3
- EIA standard packaging
- Compatible with SMT automated assembly
- Compatible with reflow soldering process
