XINLUDA

XL4067

4/16 2V~10V 8uA 10ns@15V,50pF SOP-24-300mil Signal Switches, Multiplexers, Decoders RoHS

SOP-24-300milROHS CompliantActive

Analog switching multiplexer/resolver

Manufacturer: XINLUDA
Manufacturer part #: XL4067
Store part #: C521158

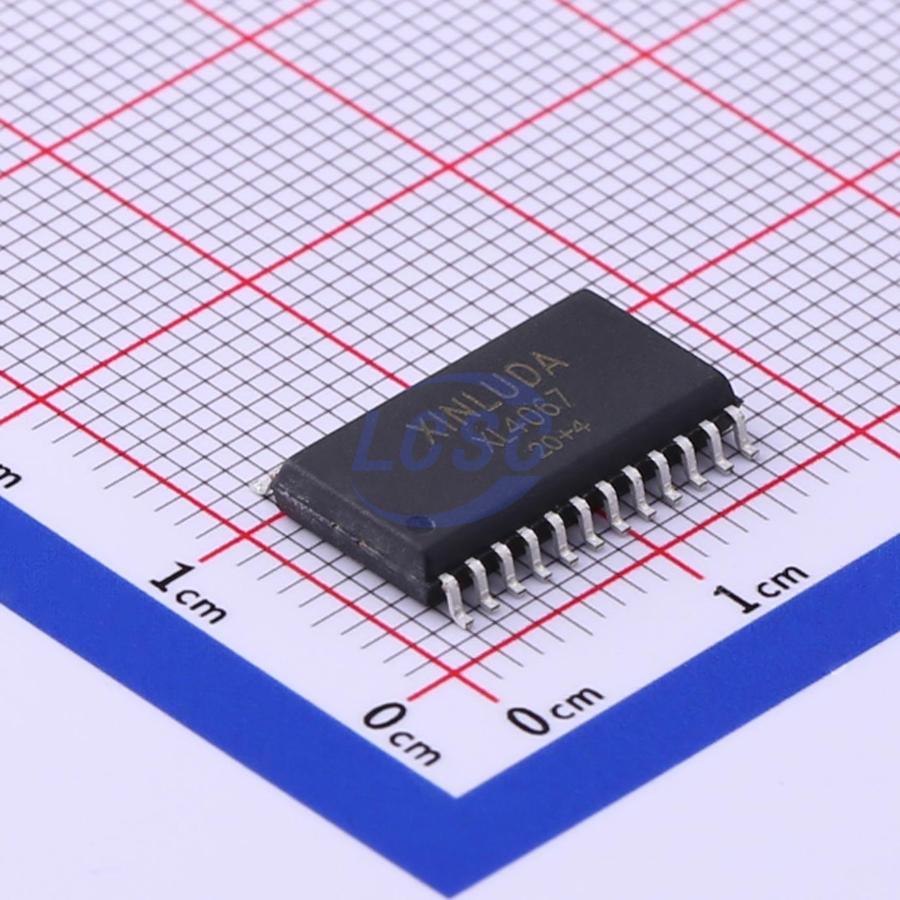

Package / case: SOP-24-300mil
Category: Signal Switches, Multiplexers, Decoders
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

700 in stock

#C521158

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹53.62	₹53.62
10+	₹41.95	₹419.50
30+	₹36.98	₹1,109.40
100+	₹30.71	₹3,071.00
500+	₹27.90	₹13,950.00
1,000+	₹26.38	₹26,380.00

Quantity (min 1)

1 × ₹53.62

₹53.62

excl. GST

₹63.27 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

XL4067

₹53.62 for 1 + GST

Specifications

Number of Channels: 4/16
Voltage - Supply: 2V~10V
Operating Temperature: -25℃~+85℃
Quiescent Current: 8uA
Propagation Delay: 10ns@15V,50pF

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.91 g

Overview

XL4067 and XL4067-SS,XL4067TS are digitally controlled analog switching multiplexer/resolver with low on- resistance, very low cut-off leakage current, and internal address decoding features. The on- resistance remains relatively stable throughout the input signal range, and the circuit can be used for digital or analog applications. XL4067 and XL4067-SS,XL4067TS are 16-channel multiplexer/resolver with a suppressor and four binary input control terminals A~D. Any switch in the 16 channels can be selected through the corresponding switch selection.
