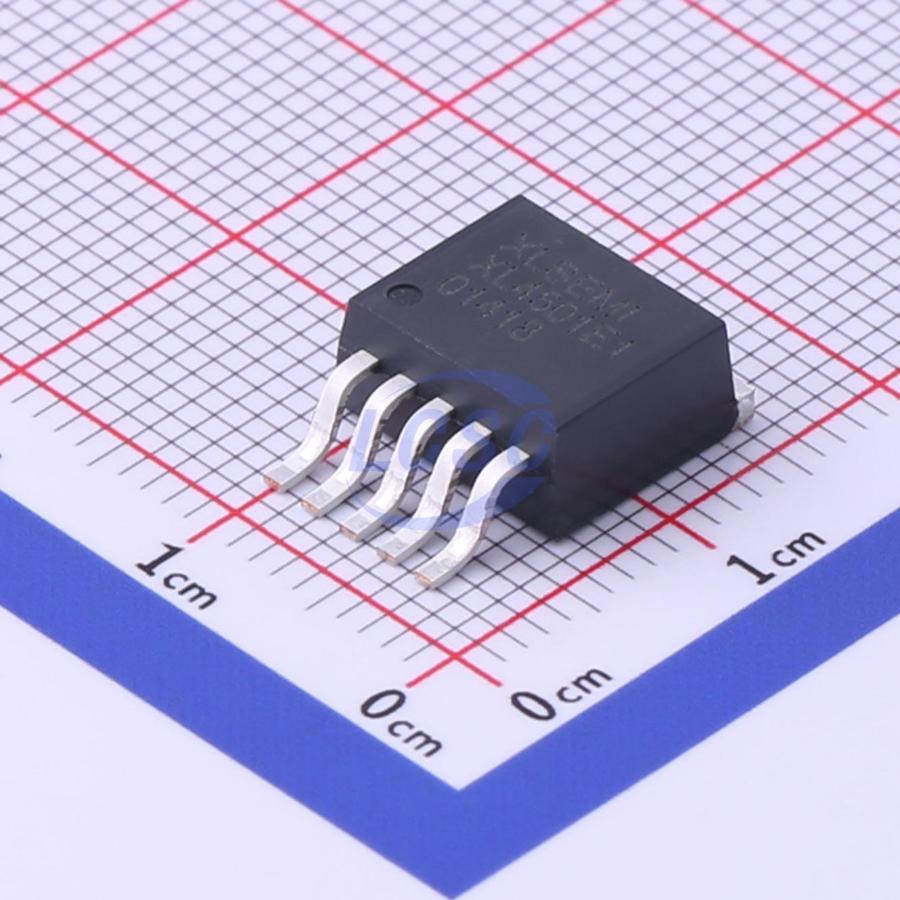

XL4501E1
Buck Switching Regulator IC Adjustable 1.25V~32V 5A TO-263-5
TO-263-5RoHSActive
5A 150KHz 36V Buck DC/DC converter with constant current loop
- Manufacturer
- XLSEMI
- Manufacturer part #
- XL4501E1
- Store part #
- C73025
- Package / case
- TO-263-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,051 in stock
#C73025
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹115.79 | ₹115.79 |
| 10+ | ₹89.99 | ₹899.90 |
| 30+ | ₹76.97 | ₹2,309.10 |
| 100+ | ₹63.97 | ₹6,397.00 |
| 500+ | ₹56.37 | ₹28,185.00 |
| 800+ | ₹52.26 | ₹41,808.00 |
1 × ₹115.79
₹115.79
excl. GST
₹136.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 800 per reel
XL4501E1
₹115.79 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 150kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 8V~36V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 1.25V~32V
- Output Current
- 5A
- Quiescent Current
- 2mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.114 g
Overview
The XL4501 is a 150KHz fixed frequency PWM buck (step - down) DC/DC converter, capable of driving a 4.5A load with high efficiency, low ripple and excellent line and load regulation. Requiring a minimum number of external components, the regulator is simple to use and include internal frequency compensation and a fixed - frequency oscillator. The PWM control circuit is able to adjust the duty ratio linearly from 0 to 100%. An enable function, an over current protection function is built inside. An internal compensation block is built in to minimize external component count.
Applications
- Car Charger
- Battery Charger
- LCD Monitor and LCD TV
- Portable instrument power supply
- Telecom/Networking Equipment
- Buck constant current driver
- Monitor LED Backlighting
- General purpose LED lighting
Key features
- Wide 8V to 36V Input Voltage Range
- Output Adjustable from 1.25V to 32V
- Minimum Drop Out 0.3V
- Fixed 150KHz Switching Frequency
- Maximum 5A Switching Current
- Internal Optimize Power MOSFET
- Excellent line and load regulation
- With output constant current loop
- Built in thermal shutdown function
- Built in current limit function
- Available in TO263 - 5L package
