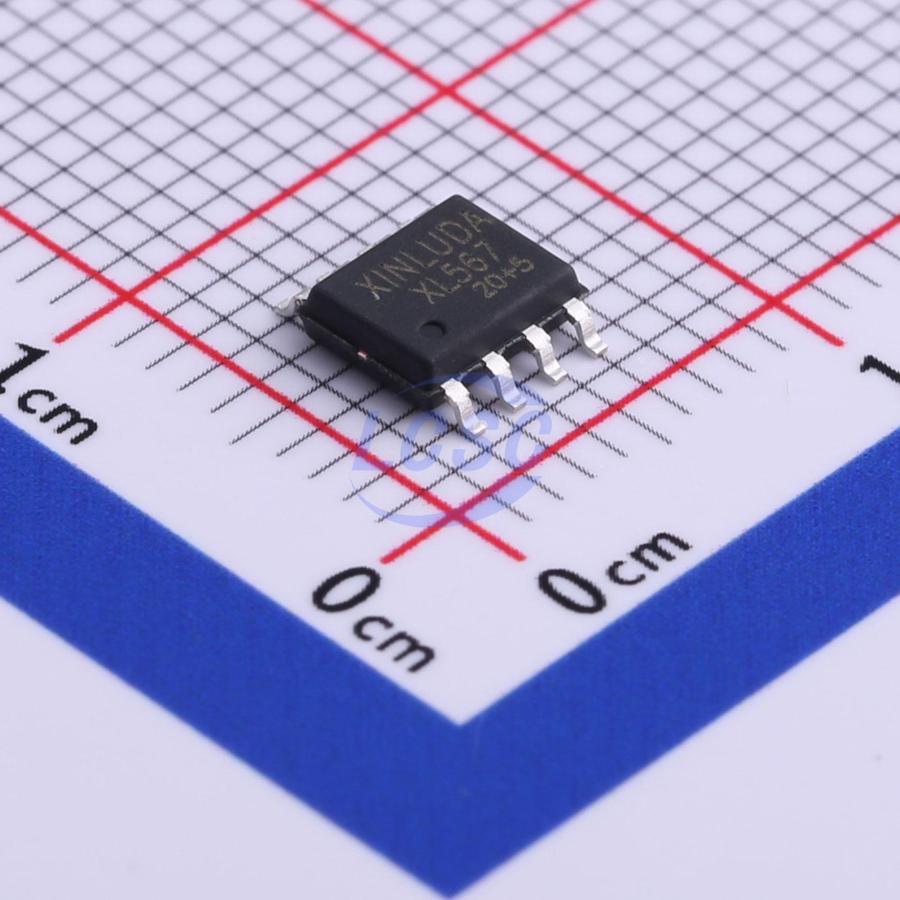

XINLUDA

XL567

Encoder/decoder SOP-8 Audio Special Purpose

SOP-8RoHSActive

Tone decoder

Manufacturer: XINLUDA
Manufacturer part #: XL567
Store part #: C556267
Package / case: SOP-8
Category: Audio Special Purpose
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,400 in stock

#C556267

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹24.28	₹121.40
50+	₹20.41	₹1,020.50
150+	₹18.76	₹2,814.00
500+	₹17.11	₹8,555.00
2,500+	₹15.32	₹38,300.00
5,000+	₹14.66	₹73,300.00

Quantity (min 5, multiples of 5)

5 × ₹24.28

₹121.40

excl. GST

₹143.25 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

XL567

₹121.40 for 5 + GST

Specifications

Operating Temperature: 0℃~+70℃
Type: Encoder/decoder
Features: Built-in phase-locked loop
Voltage - Supply: 3.5V~8.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.244 g

Overview

The XD567 and XL567 are general-purpose speech decoders designed to switch saturating transistors to ground when an input signal is present in the passband. The circuits contain I and Q detectors driven by a voltage controlled oscillator which determines the centre frequency of the decoder. External components are used to independently set the centre frequency, bandwidth and output delay.
