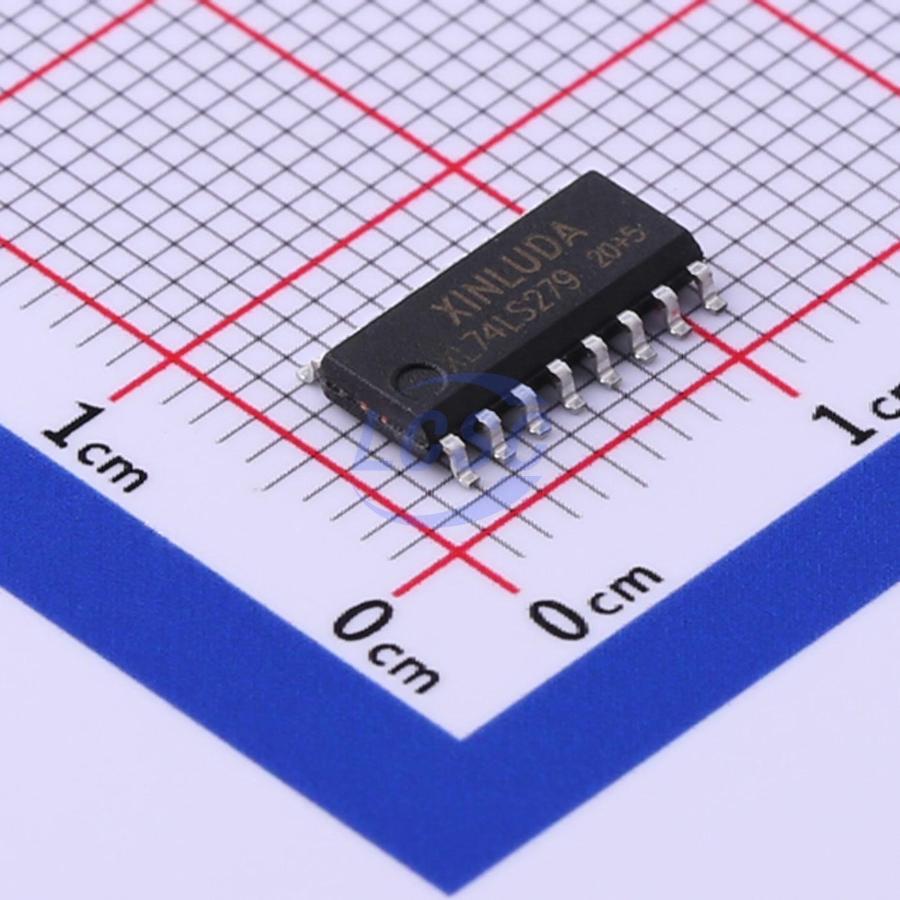

XINLUDA
XL74LS279
SR Latch 4.75V~5.25V 4 22ns SOP-16 Latches
SOP-16RoHSActive
QUADRUPLES-RLATCHES
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,160 in stock
#C556297
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.69 | ₹123.45 |
| 50+ | ₹19.55 | ₹977.50 |
| 150+ | ₹17.34 | ₹2,601.00 |
| 500+ | ₹14.61 | ₹7,305.00 |
| 2,500+ | ₹12.56 | ₹31,400.00 |
| 5,000+ | ₹11.83 | ₹59,150.00 |
5 × ₹24.69
₹123.45
excl. GST
₹145.67 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
XL74LS279
₹123.45 for 5 + GST
Specifications
- Quiescent Current
- 7mA
- Series
- 74LS
- Logic Type
- SR Latch
- Voltage - Supply
- 4.75V~5.25V
- Operating Temperature
- 0℃~+70℃
- Current - Output Low(IOL)
- 20mA
- Number of Gates
- 4
- Current - Output High(IOH)
- 0.4mA
- Propagation Delay
- 22ns
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.34 g
Overview
The XL/XD74LS279 offers 4 basic S-R flip-flop latches in one 16-pin, the 300-mil package. Under conventional operation, the S-R inputs are normally held high. When the S input is pulsed low, the Q output will be set high. When R is pulsed low, the Q output will be reset low. Normally, the S-R inputs should not be taken low simultaneously. The Q output will be unpredictable in this condition.
