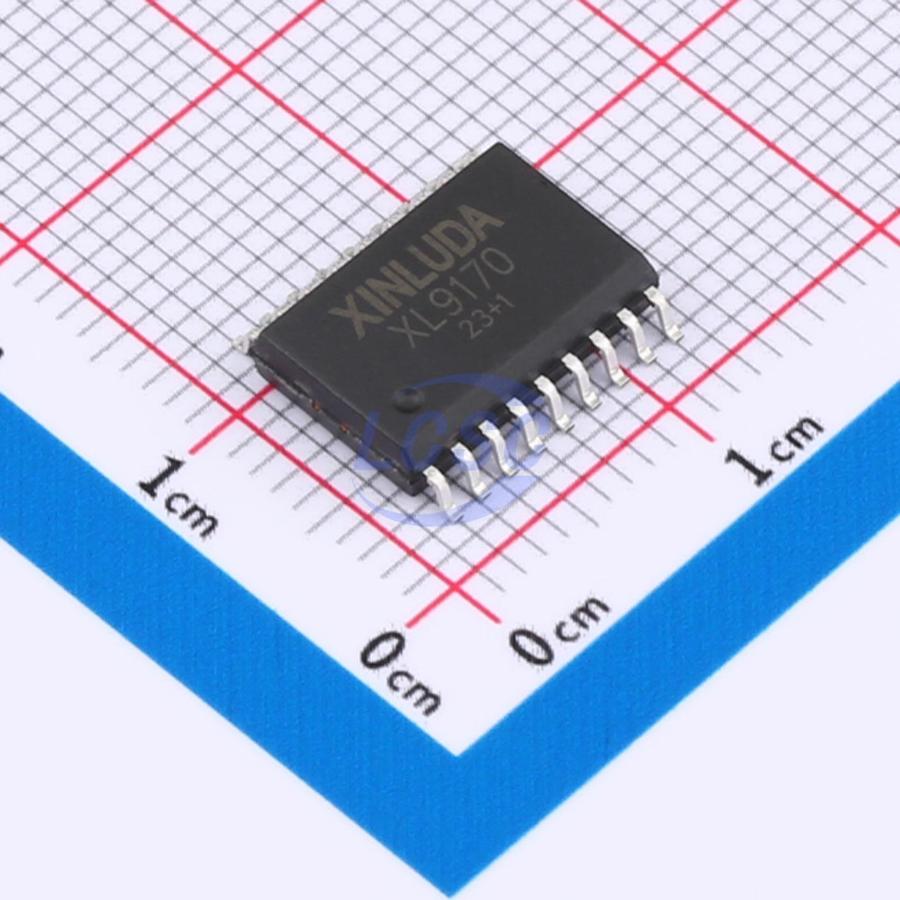

XL9170
Receiver SOP-18 Telecom
Dual Tone MultiFrequency(DTMF)receivers
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C5444297
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹81.56 | ₹81.56 |
| 10+ | ₹65.59 | ₹655.90 |
| 30+ | ₹57.71 | ₹1,731.30 |
| 100+ | ₹49.84 | ₹4,984.00 |
| 500+ | ₹45.15 | ₹22,575.00 |
| 1,000+ | ₹42.81 | ₹42,810.00 |
1 × ₹81.56
₹81.56
excl. GST
₹96.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
XL9170
₹81.56 for 1 + GST
Specifications
- Type
- Receiver
- Features
- DTMF detection
- Current - Supply
- 3mA
- Voltage - Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.058 g
Overview
The XD/XL9170 are Dual Tone Multi Frequency (DTMF) receivers integrated with digital decoder and band split filter functions as well as power-down mode and inhibit mode operations. Such devices use digital counting techniques to detect and decode all the 16 DTMF tone pairs into a 4-bit code output. Highly accurate switched capacitor filters are implemented to divide tone signals into low and high group signals. A built-in dial tone rejection circuit is provided to eliminate the need for pre-filtering.
Key features
- Operating voltage: 2.5V~5.5V
- Minimal external components
- No external filter is required
- Low standby current (on power down mode)
- Excellent performance
- Tristate data output for MCU interface
- 3.58MHz crystal or ceramic resonator
- 1633Hz can be inhibited by the INH pin
