XINLUDADatasheet (PDF)

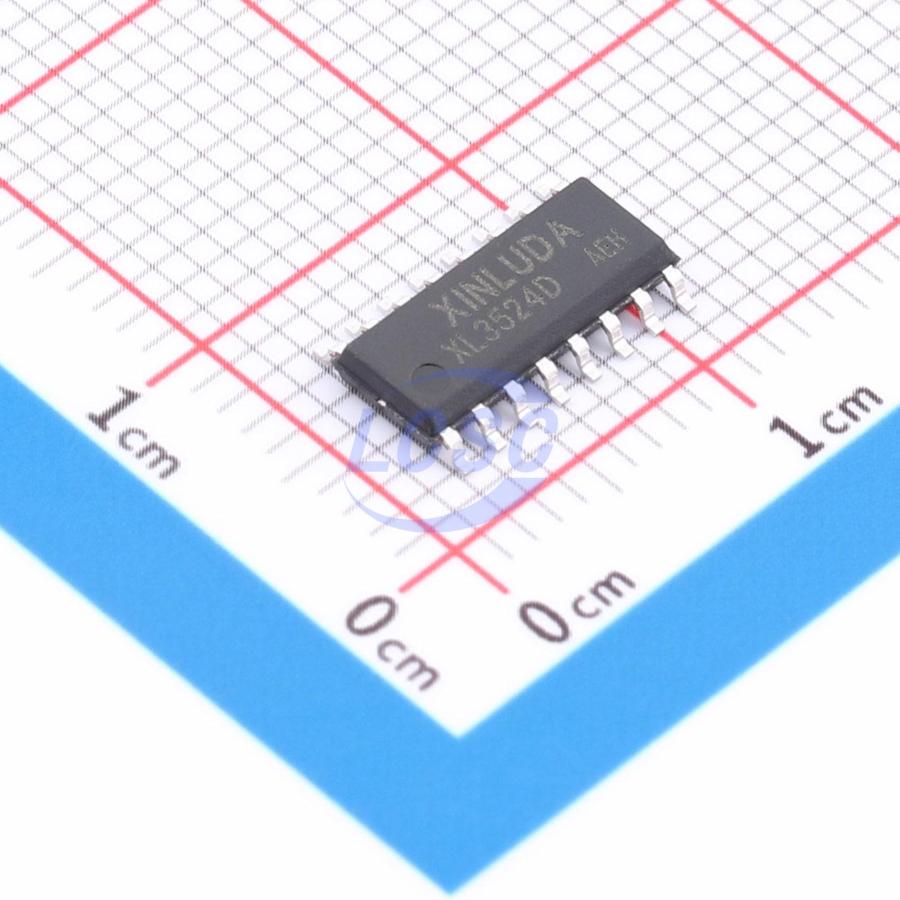

XLSG3524DR
450kHz 50mA 2W 40V 8V~40V SOP-16 AC DC Converters, Offline Switchers
SOP-16RoHSActive
- Manufacturer
- XINLUDA
- Manufacturer part #
- XLSG3524DR
- Store part #
- C50202051
- Package / case
- SOP-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,615 in stock
#C50202051
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.95 | ₹114.75 |
| 50+ | ₹18.02 | ₹901.00 |
| 150+ | ₹15.92 | ₹2,388.00 |
| 500+ | ₹13.28 | ₹6,640.00 |
| 2,500+ | ₹12.11 | ₹30,275.00 |
| 5,000+ | ₹11.40 | ₹57,000.00 |
5 × ₹22.95
₹114.75
excl. GST
₹135.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
XLSG3524DR
₹114.75 for 5 + GST
Specifications
- Operating Temperature
- -25℃~+85℃
- Frequency - Switching
- 450kHz
- Output Current
- 50mA
- Pd - Power Dissipation
- 2W
- Voltage - Breakdown
- 40V
- Voltage - Supply
- 8V~40V
- Features
- Over Current Protection
- Topology
- Push-Pull;Flyback
- Duty Cycle(Max)
- 45%
- Working Mode
- PWM Modulation
- Feedback System
- Secondary-Side Feedback
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.412 g
Overview
This monolithic integrated circuit contains all the control circuitry required to regulate a power inverter or switching regulator. Integrated within the 16-pin DIP are a voltage reference, error amplifier, oscillator, pulse-width modulator, pulse-steering flip-flop, dual alternating-output switches, and current-limiting and shutdown circuitry. The device can be used in switching regulators of either polarity, transformer-coupled DC-DC converters, transformerless voltage doublers, polarity converters, and other power supply applications.
Key features
- 8V to 40V operating voltage
- 5V reference voltage
- 0.4% line and load regulation of reference voltage
- 100Hz to 300kHz oscillator frequency range
- Excellent external synchronization capability
- Dual 50mA output transistors
- Current limiting circuit
- Complete PWM power control circuit
- Single-ended or push-pull output
- Total supply current less than 10mA
