XINLUDADatasheet (PDF)

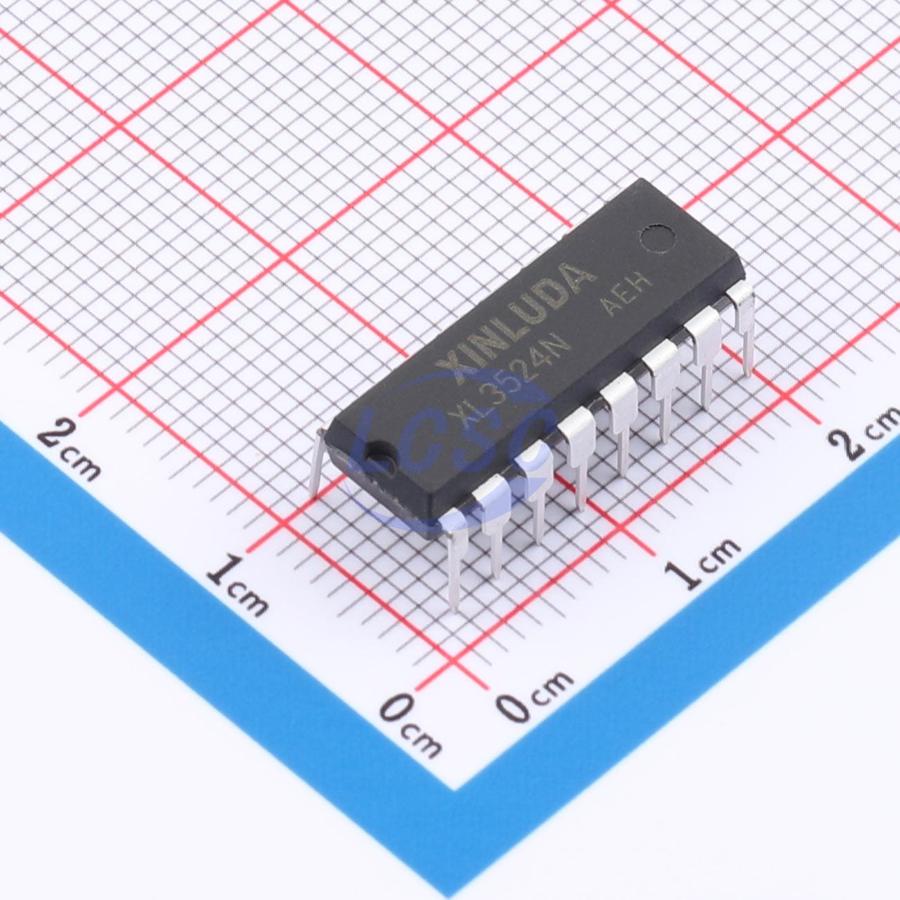

XLSG3524N
450kHz 50mA 2W 40V 8V~40V DIP-16 AC DC Converters, Offline Switchers
DIP-16RoHSActive
- Manufacturer
- XINLUDA
- Manufacturer part #
- XLSG3524N
- Store part #
- C50202052
- Package / case
- DIP-16
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C50202052
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.58 | ₹147.90 |
| 50+ | ₹23.23 | ₹1,161.50 |
| 150+ | ₹20.51 | ₹3,076.50 |
| 500+ | ₹17.11 | ₹8,555.00 |
| 2,000+ | ₹15.60 | ₹31,200.00 |
| 5,000+ | ₹14.69 | ₹73,450.00 |
5 × ₹29.58
₹147.90
excl. GST
₹174.52 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 25 per tube
XLSG3524N
₹147.90 for 5 + GST
Specifications
- Operating Temperature
- -25℃~+85℃
- Frequency - Switching
- 450kHz
- Output Current
- 50mA
- Pd - Power Dissipation
- 2W
- Voltage - Breakdown
- 40V
- Voltage - Supply
- 8V~40V
- Topology
- Push-Pull;Flyback
- Duty Cycle(Max)
- 45%
- Working Mode
- PWM Modulation
- Feedback System
- Secondary-Side Feedback
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.783 g
Overview
This monolithic integrated circuit contains all the control circuitry required to regulate a power inverter or switching regulator. Housed in a 16-pin DIP, it integrates an internal voltage reference, error amplifier, oscillator, pulse width modulator, pulse steering flip-flop, dual alternating output switches, and current limiting and shutdown circuitry. The device can be used in switching regulators of either polarity, transformer-coupled DC-DC converters, transformerless voltage doublers, polarity converters, and other power supply applications.
Key features
- 8V ~ 40V operating voltage
- 5V reference voltage
- 0.4% line and load regulation of reference voltage
- Oscillator frequency range 100 Hz ~ 300 kHz
- Excellent external synchronization capability
- Dual 50 mA output transistors
- Current limiting circuit
- Complete PWM power control circuitry
- Single-ended or push-pull output
- Total supply current less than 10 mA
