MaxLinearDatasheet (PDF)

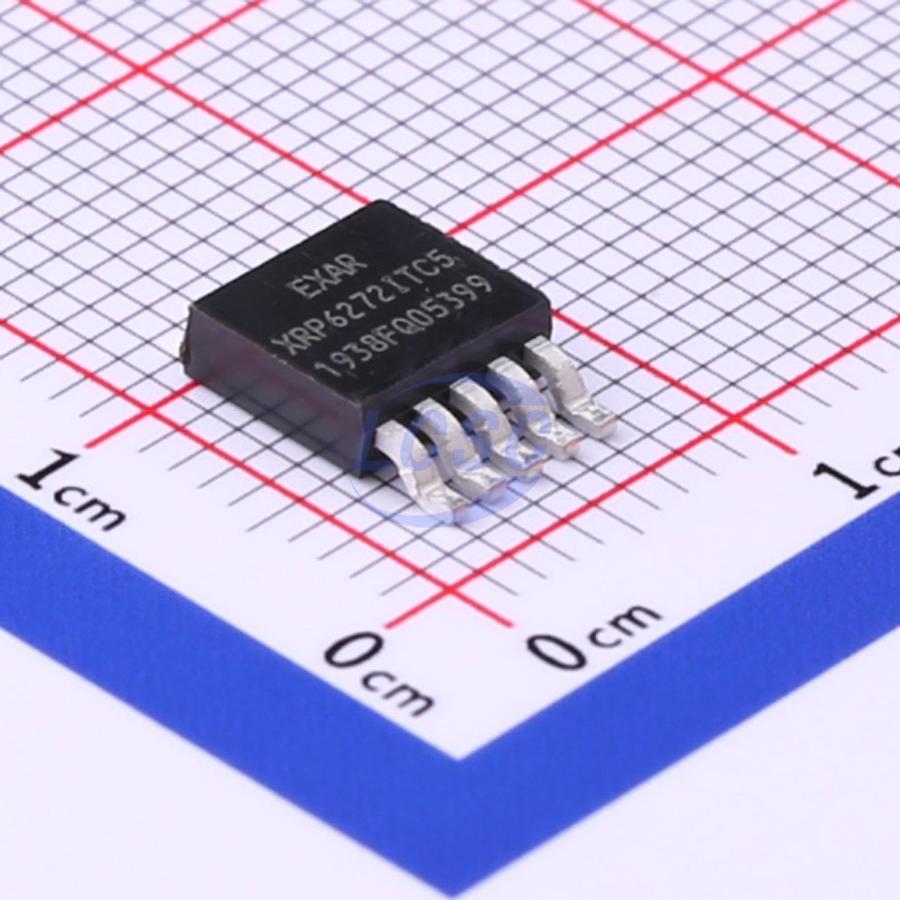

XRP6272ITC5TR-F
5V Positive TO-252-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-252-5ROHS3 CompliantActive
2A 5V-Adjustable Low Dropout Voltage Regulator
- Manufacturer
- MaxLinear
- Manufacturer part #
- XRP6272ITC5TR-F
- Store part #
- C517992
- Package / case
- TO-252-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,680 in stock
#C517992
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹136.44 | ₹136.44 |
| 10+ | ₹109.72 | ₹1,097.20 |
| 30+ | ₹96.46 | ₹2,893.80 |
| 100+ | ₹83.22 | ₹8,322.00 |
| 500+ | ₹75.17 | ₹37,585.00 |
| 1,000+ | ₹71.05 | ₹71,050.00 |
1 × ₹136.44
₹136.44
excl. GST
₹161.00 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
XRP6272ITC5TR-F
₹136.44 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 30uA
- Output Configuration
- Positive
- Operating Voltage
- 6V
- Output Current
- 2A
- Features
- Enable control;Operating status indication;Over Current Protection;Thermal shutdown;Noise bypass terminal
- Output Type
- Fixed;Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.329 g
Overview
The XRP6272 is a low dropout voltage regulator capable of a constant output current up to 2 Amps. A wide 1.8V to 6V input voltage range allows for single supply operations from industry standard 1.8V, 2.8V, 3.3V, and 5V power rails as well as the 5.8V rail. With better than ±2% output voltage accuracy, low output noise and high Power Supply Rejection Ratio (PSRR), the XRP6272 is perfectly suited for powering RF circuitries. Optimized for use with small low cost ESR ceramic output capacitors and featuring a low 30µA quiescent current, this device is also adequate for use in battery powered portable equipments. The XRP6272 operates by default as a 5V fixed output voltage regulator while usage of an external resistors divider allows adjustable out voltages as low as 0.7V. An Enable function, Power Good flag and output noise reduction pin complete the feature set. Built-in current limit and thermal protections insure safe operations under abnormal operating conditions. The XRP6272 is offered in RoHS compliant, “green”/halogen free 5-pin TO-252 and 8-pin exposed pad SOIC packages.
Applications
- Networking Equipments
- RF Circuitry Power Supplies
- Set-top box Equipments
- Portable Equipments
Key features
- Guaranteed 2A Output Current − Low 550mV Dropout at 3.3V/2A
- 1.8V to 6V Single Input Voltage Range − Fixed 5V and Adjustable Output Voltage − ±2% Output Voltage Accuracy
- 30µA Quiescent Current
- Power Good and Enable Functions
- 70dB Power Supply Rejection Ratio
- Low Output Noise
- 0.01µA Shutdown Current
- Current Limit and Thermal Protection
- RoHS compliant “Green”/Halogen Free 5-pin TO-252 and 8-pin Exposed pad SOIC Packages
