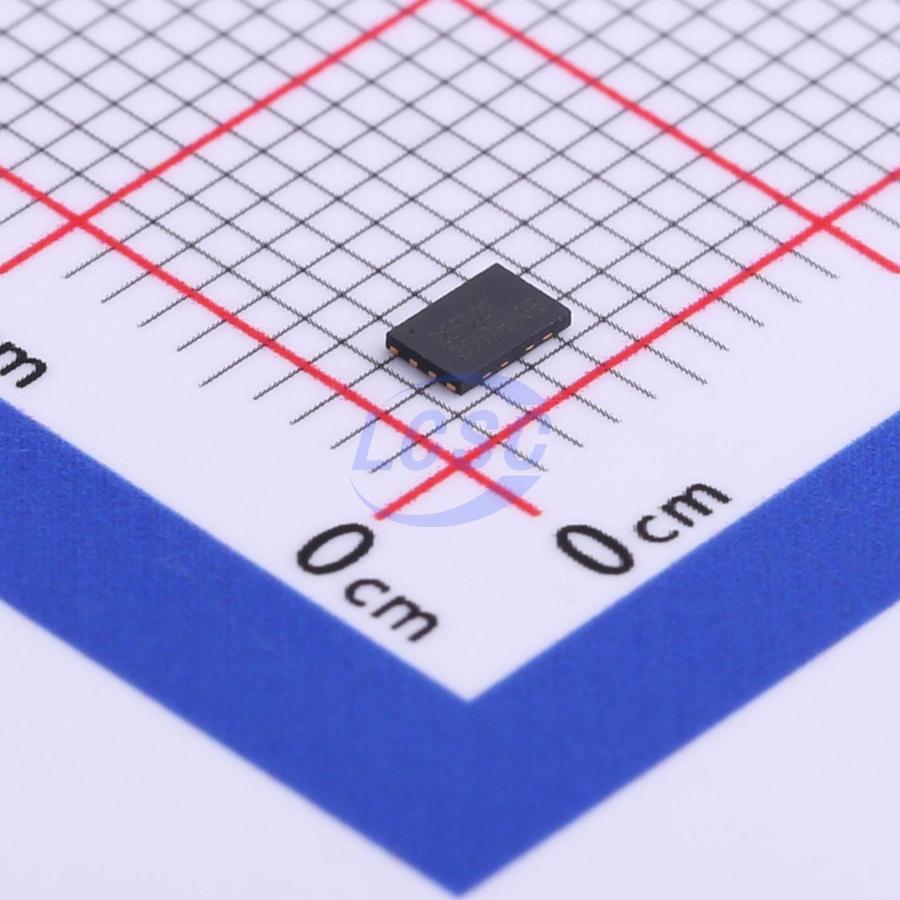

XTX
XT25F02EDTIGT
2Mbit 2.7V~3.6V 120MHz SPI DFN-8-EP(2x3) Memory RoHS
DFN-8-EP(2x3)ROHS CompliantActive
Dual IO Serial NOR Flash Memory
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,850 in stock
#C596313
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.14 | ₹150.70 |
| 50+ | ₹26.92 | ₹1,346.00 |
| 150+ | ₹25.55 | ₹3,832.50 |
| 500+ | ₹23.83 | ₹11,915.00 |
| 3,000+ | ₹20.82 | ₹62,460.00 |
| 6,000+ | ₹20.36 | ₹1,22,160.00 |
5 × ₹30.14
₹150.70
excl. GST
₹177.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XT25F02EDTIGT
₹150.70 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Write enable latch;Software write protection
- Memory Size
- 2Mbit
- Voltage - Supply
- 2.7V~3.6V
- Program / Erase Cycles
- 100,000 cycles
- Clock Frequency
- 120MHz
- Data Retention - TDR (Year)
- 20 Years
- Block Erase Time(tBE)
- 500ms@(64KB)
- Page Programming Time (Tpp)
- 1.3ms
- Standby Supply Current
- 13uA
- Interface
- SPI
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.055 g
Overview
The XT25F02E Serial flash supports the standard Serial Peripheral Interface (SPI), and supports the Dual SPI: Serial Clock, Chip Select, Serial Data I/O0 (SI), I/O1 (SO). The Dual I/O data is transferred at a speed of 160Mbits/s.
Key features
- 2M bits 3.3V Dual I/O Serial Flash Memory with 4KB Uniform Sector
- 256 K-byte
- 256 bytes per programmable page
- Standard SPI: SCLK, CS#, SI, SO Dual SPI: SCLK, CS#, IO0, IO1
- Sector of 4K-byte Block of 64k-byte
- Write protect all/portion of memory via software
- All Pb-free packages are compliant RoHS, Halogen-Free and REACH
- Industrial Level Temperature (-40℃ to +85℃), MSL3
- 20mA maximum active current
- 13uA Standby current
- 120MHz for fast read with 30PF load
- Dual I/O Data transfer up to 160Mbits/s
- Page Program time: 1.3ms typical
- Sector Erase time: 75ms typical
- Block Erase time: 0.5s typical
- Chip Erase time: 1.7s typical
