XTX

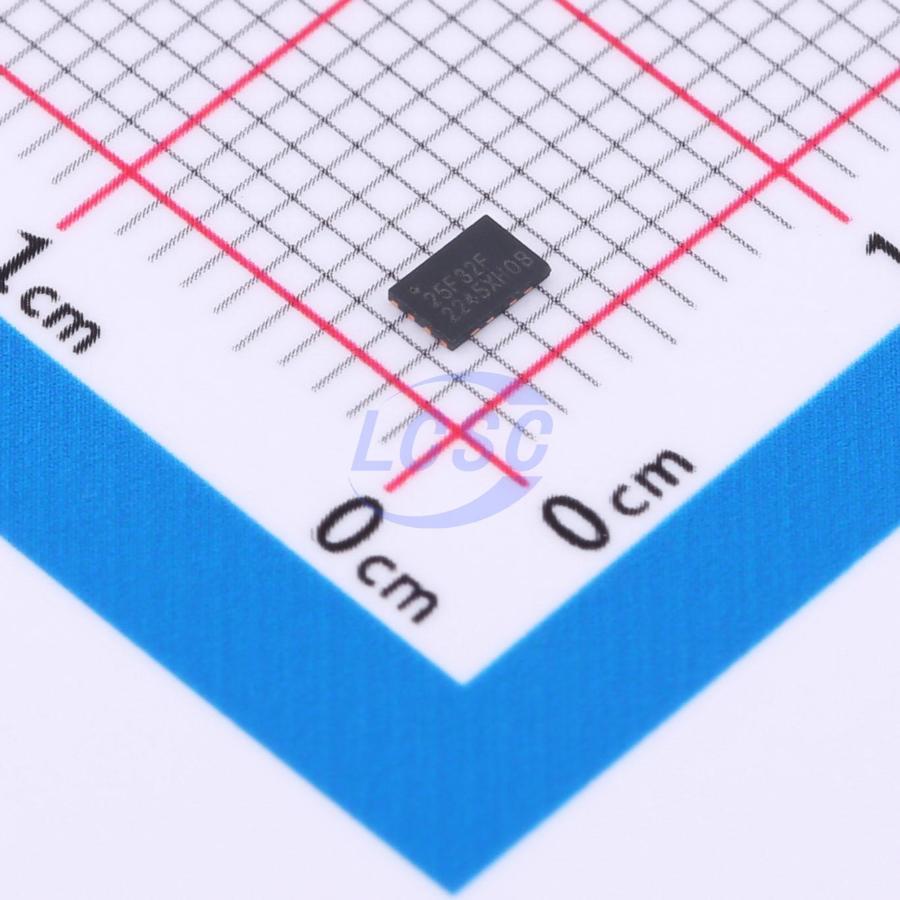

XT25F32FDTIGT
32Mbit 2.7V~3.6V 133MHz SPI DFN-8 Memory RoHS
DFN-8ROHS CompliantActive
Quad IO Serial NOR Flash Memory
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,949 in stock
#C7429719
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹149.72 | ₹149.72 |
| 10+ | ₹123.65 | ₹1,236.50 |
| 30+ | ₹109.52 | ₹3,285.60 |
| 100+ | ₹93.44 | ₹9,344.00 |
| 500+ | ₹86.27 | ₹43,135.00 |
| 1,000+ | ₹83.02 | ₹83,020.00 |
1 × ₹149.72
₹149.72
excl. GST
₹176.67 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XT25F32FDTIGT
₹149.72 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Write enable latch;Hardware write protection;Software write protection;Absolute write protection
- Memory Size
- 32Mbit
- Voltage - Supply
- 2.7V~3.6V
- Program / Erase Cycles
- 100,000 cycles
- Clock Frequency
- 133MHz
- Data Retention - TDR (Year)
- 20 Years
- Page Programming Time (Tpp)
- 400us
- Standby Supply Current
- 0.3uA
- Interface
- SPI
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.022 g
Overview
The XT25F32F (32M-bit) Serial flash supports the standard Serial Peripheral Interface (SPI), and supports the Dual/Quad SPI: Serial Clock, Chip Select, Serial Data I/O0 (SI), I/O1 (SO), I/O2 (WP#), and I/O3 (HOLD#).
Key features
- 3.3V Multi I/O with 4KB, 32KB & 64KB Sector/Block Erase
- 4096K-byte, 256 bytes per programmable page
- Support SFDP & Unique ID
- Standard, Dual, Quad SPI
- Flexible Architecture: Sector of 4K-byte Block of 32/64k-byte
- Advanced security Features: 3*1024 -Byte Security Registers With OTP Lock
- Software/Hardware Write Protection: Write protect all/portion of memory via software, Enable/Disable protection with WP# Pin, Top or Bottom Block Protection
- Allows XIP(execute in place)operation: High speed Read reduce overall XIP instruction fetch time, Continuous Read with Wrap further reduce data latency to fill up SoC cache
- Temperature Range & Moisture Sensitivity Level: Industrial Level Temperature. (-40℃ to +85℃), MSL3
- Power Consumption: 0.3uA typ. power down current
- Single Power Supply Voltage: 2.7~3.6V
- Endurance and Data Retention: Minimum 100,000 Program/Erase Cycle, 20-year Data Retention typical
- High Speed Clock Frequency: 133MHz for fast read with 30pF load, Dual I/O Data transfer up to 266Mbit/s, Quad I/O Data transfer up to 532Mbit/s, Continuous Read With 8/16/32/64-byte Wrap
- Program/Erase Speed: Page Program time: 0.4ms typical, Sector Erase time: 50ms typical, Block Erase time: 0.15/0.25s typical, Chip Erase time: 12s typical
