XTX

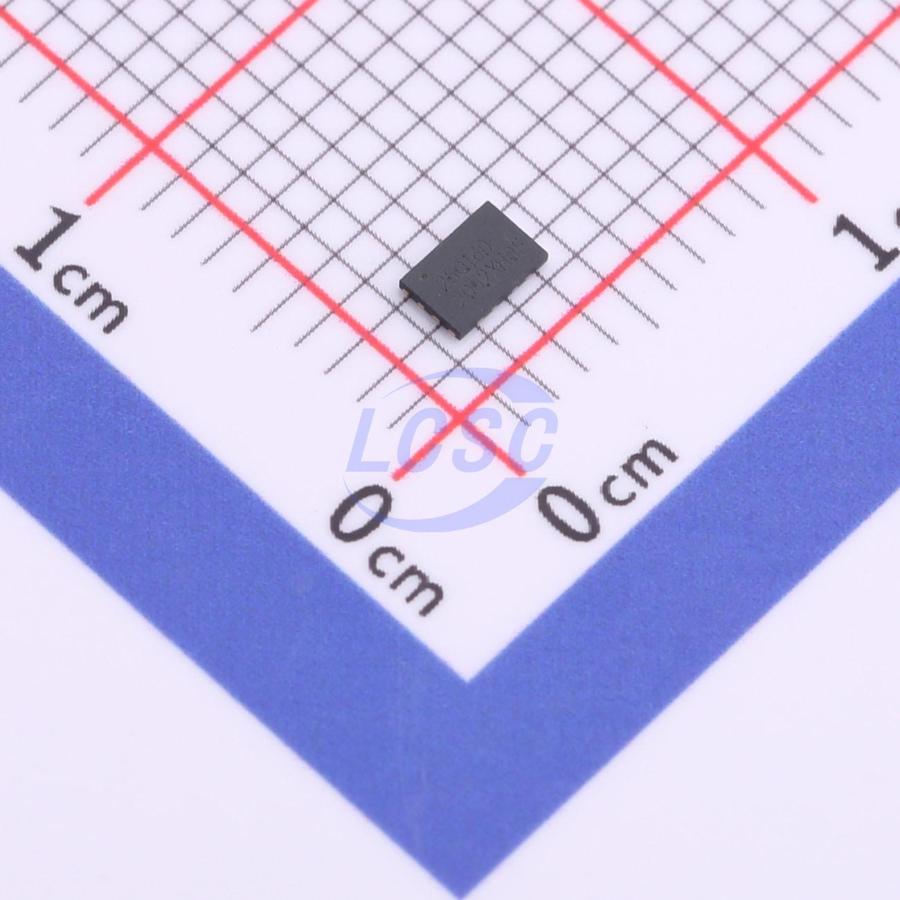

XT25Q16DDTIGT
16Mbit 1.65V~2.1V 108MHz SPI UDFN-8-EP(2x3) Memory RoHS
UDFN-8-EP(2x3)ROHS CompliantActive
1.8V Quad IO Serial Flash
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,922 in stock
#C2759956
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹136.81 | ₹136.81 |
| 10+ | ₹113.39 | ₹1,133.90 |
| 30+ | ₹101.70 | ₹3,051.00 |
| 100+ | ₹89.99 | ₹8,999.00 |
| 500+ | ₹75.89 | ₹37,945.00 |
| 1,000+ | ₹72.21 | ₹72,210.00 |
1 × ₹136.81
₹136.81
excl. GST
₹161.44 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XT25Q16DDTIGT
₹136.81 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Write enable latch;Hardware write protection;Software write protection;Absolute write protection
- Memory Size
- 16Mbit
- Voltage - Supply
- 1.65V~2.1V
- Program / Erase Cycles
- 100,000 cycles
- Clock Frequency
- 108MHz
- Data Retention - TDR (Year)
- 20 Years
- Block Erase Time(tBE)
- 150ms@(64KB)
- Page Programming Time (Tpp)
- 350us
- Standby Supply Current
- 0.3uA
- Interface
- SPI
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.053 g
Overview
The XT25Q16D (16M-bit) Serial flash supports standard Serial Peripheral Interface (SPI), Dual/Quad SPI: Serial Clock, Chip Select, Serial Data I/O0 (SI), I/O1 (SO), I/O2 (WP#), and I/O3 (HOLD#/RESET#). The Dual I/O data is transferred with speed up to 216Mbits/s and the Quad I/O & Quad output data is transferred with speed up to 432Mbits/s.
Key features
- 1.8V Multi I/O with 4KB, 32KB & 64KB Sector/Block Erase
- 2048K-bytes, 256 bytes per programmable page
- Standard, Dual, Quad SPI, DTR
- Flexible Architecture: Sector of 4K-bytes, Block of 32/64k-bytes
- Advanced security Features: 2*1024 -Bytes Security Registers With OTP Lock
- Support 128 bits Unique ID
- Software/Hardware Write Protection: Write protect all/portion of memory via software, Enable/Disable protection with WP# Pin, Top or Bottom, Sector or Block selection
- All Pb-free packages are compliant RoHS, Halogen-Free and REACH
- Industrial Level Temperature (-40℃ to +85℃), MSL3; Industrial Plus Level Temperature (-40℃ to +105℃), MSL3
- 0.3uA typical Deep Power-Down current, Single Power Supply Voltage 1.65~2.1V
- Minimum 100,000 Program/Erase Cycle, 20-year Data Retention typical
- 108MHz for fast read with 30PF load
- Dual I/O Data transfer up to 216Mbits/s
- Quad I/O Data transfer up to 432Mbits/s
- QPI Mode Data transfer up to 432Mbits/s
- DTR Quad I/O Data transfer up to 688Mbits/s
- Page Program time: 0.35ms typical
- Sector Erase time: 40ms typical
- Block Erase time: 0.12/0.15s typical
- Chip Erase time: 4.5s typical
