XTX

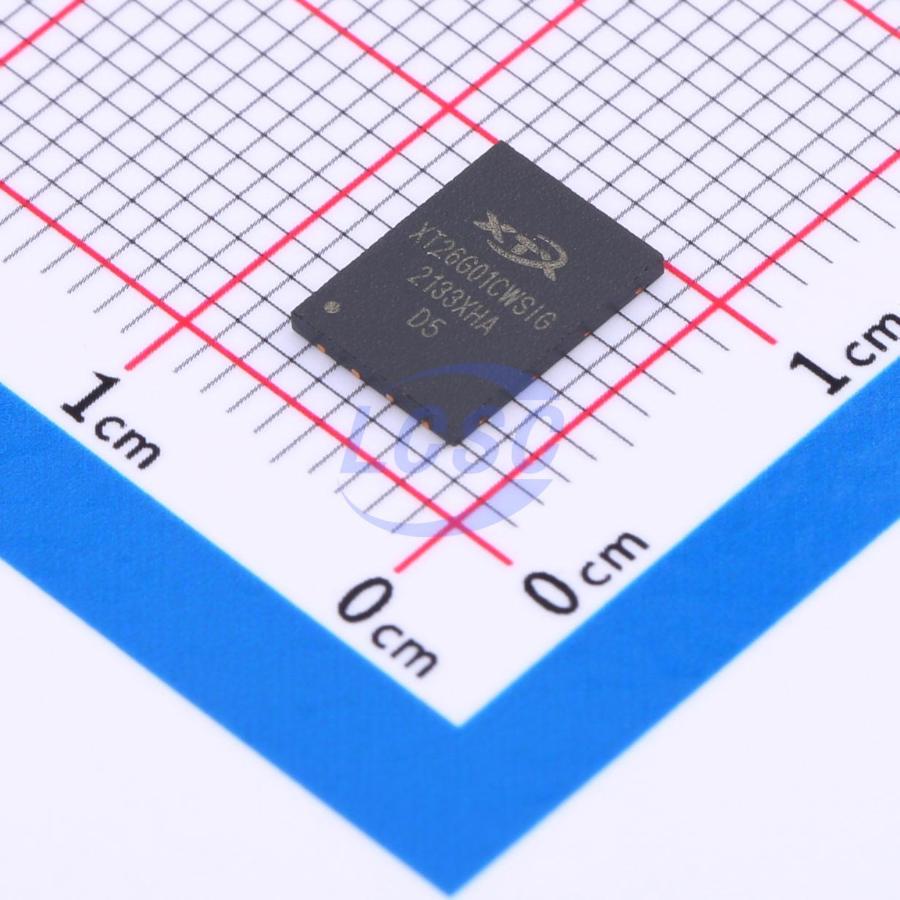

XT26G01CWSIGA
1Gbit 2.7V~3.6V 104MHz SPI WSON-8(6x8) Memory RoHS
WSON-8(6x8)ROHS CompliantActive
SPI NAND Flash Memory
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,427 in stock
#C2833378
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,858.97 | ₹1,858.97 |
| 10+ | ₹1,656.04 | ₹16,560.40 |
| 30+ | ₹1,532.44 | ₹45,973.20 |
| 100+ | ₹1,359.44 | ₹1,35,944.00 |
1 × ₹1,858.97
₹1,858.97
excl. GST
₹2,193.58 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 480 per tray
XT26G01CWSIGA
₹1,858.97 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Read buffer function;Copy back write function;Write enable latch;Software reset function;Hardware write protection function;Software write protection function;ECC error correction function;OTP region write protection and lock function
- Memory Size
- 1Gbit
- Voltage - Supply
- 2.7V~3.6V
- Clock Frequency
- 104MHz
- Data Retention - TDR (Year)
- 10 years
- Block Erase Time(tBE)
- 4ms
- Page Programming Time (Tpp)
- 450us
- Standby Supply Current
- 100uA
- Interface
- SPI
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tray
- Standard pack
- 480 / Tray
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.77 g
Overview
The XT26G01C is a 1G-bit (128M-byte) SPI (Serial Peripheral Interface) NAND Flash memory, with advanced write protection mechanisms. The XT26G01C supports the standard Serial Peripheral Interface (SPI), Dual/Quad I/O option.
Key features
- 1G-bit NAND Flash memory
- Single-level cell (SLC) technology
- Page size: 2176 bytes(2048 + 128 bytes)
- Block size: 64 pages(128K + 8K bytes)
- Device size: 1Gb(1024 blocks)
- Serial Interface
- Standard SPI: CLK, CS#, SI, SO, WP#
- Dual SPI: CLK, CS#, SIO0, SIO1, WP#
- Quad SPI: CLK, CS#, SIO0, SIO1, SIO2, SIO3
- High Performance
- 104MHz for fast read
- Quad I/O data transfer up to 416Mbits/s
- 2K-Byte cache for fast random read
- Advanced Security Features
- Write protect all/portion of memory via software
- Lockable 8K-Byte OTP region
- 128-Bit Unique ID for each device
- Program/Erase/Read Speed
- Page Program time: 450us typical
- BLOCK ERASE time: 4ms typical
- PAGE READ time: 120us maximum (without ECC)
- Single Supply Voltage: 2.7V~3.6V
- Advanced Security Features
- 8 bit ECC option, per 512 bytes
- Internal data move by page with ECC
- Promised golden block0
- Package
- 8-pin WSON (8*6mm)
- 24-ball BGA (6*8mm)
- All Packages are RoHS Compliant and Halogen-free
- Data retention: 10 years
