SiChange

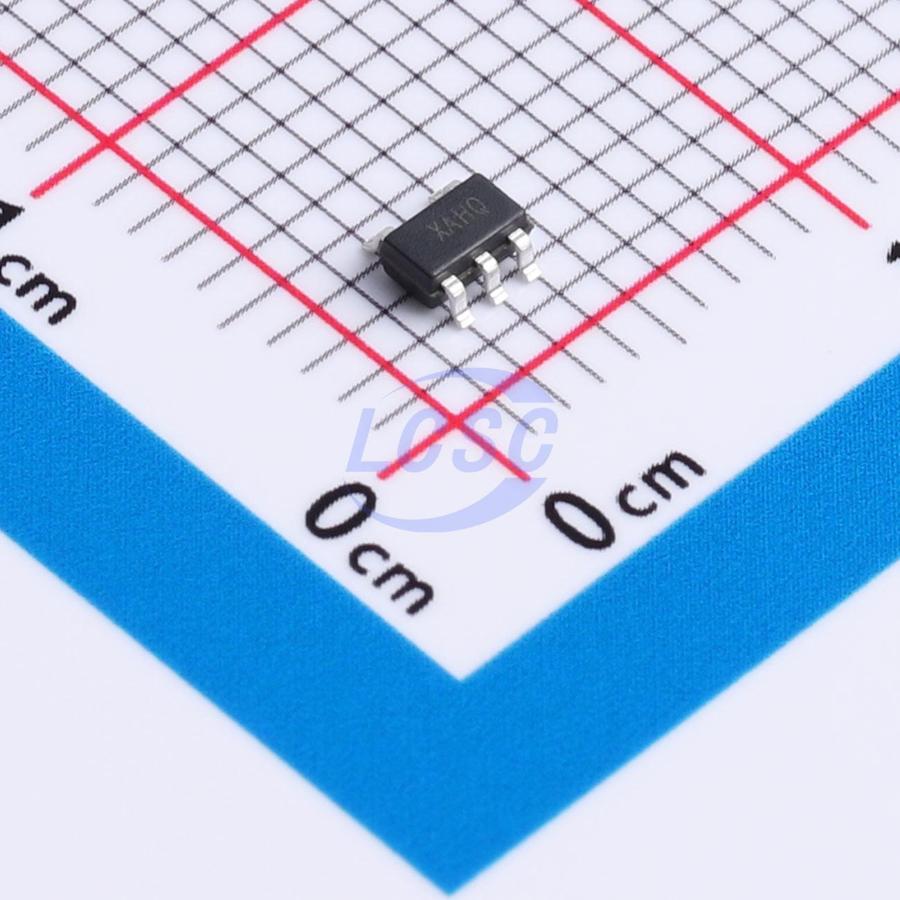

XTLV70333-XC

3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

SOT-23-5RoHSActive

IC REG LINEAR 3.3V 300mA SOT-23-5

Manufacturer: SiChange
Manufacturer part #: XTLV70333-XC
Store part #: C51953286
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

20,467 in stock

#C51953286

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹7.17	₹7.17
10+	₹5.61	₹56.10
30+	₹4.84	₹145.20
100+	₹4.26	₹426.00
500+	₹3.80	₹1,900.00
1,000+	₹3.56	₹3,560.00

Quantity (min 1)

1 × ₹7.17

₹7.17

excl. GST

₹8.46 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

XTLV70333-XC

₹7.17 for 1 + GST

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃
Supply Current (Iq): 15uA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 300mA
Output Type: Fixed
Features: Enable control;Over Current Protection;Thermal shutdown

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.058 g

Overview

Ultra-low noise, ultra-low quiescent current LDO regulator operating from a 3.7V to 5.5V supply, capable of delivering up to 300mA output current with a stable 3.3V output voltage. Utilizing innovative design techniques, its quiescent current as low as 15μA at no load makes it well suited for battery-powered portable devices. Excellent noise rejection performance is achieved without additional noise bypass capacitors, while maintaining outstanding PSRR and line/load transient response. The combination of ultra-low noise and extremely low quiescent current maximizes battery life in portable devices. Compatible with 1μF input and output ceramic capacitors for space-constrained, high-performance applications. Available in a 5-pin SOT-23 package with an operating temperature range of -40℃ to 125℃.

Applications

Wireless handheld devices
Smartphones
ZigBee networks
Bluetooth devices
Li-battery powered handheld products

Key features

Ultra-low noise: 9μVRMS, independent of output voltage
Ultra-low quiescent current (no load): 15μA
Maximum output current: 300mA
Input voltage: 3.7V ~ 5.5V
Fixed output voltage: 3.3V
Output voltage accuracy: ±1%
Low shutdown current: < 1μA
Low dropout: 160mV (typical)
Power supply rejection ratio: 62dB at 1kHz
No noise bypass capacitor required
Stable performance with 1μF ceramic input and output capacitors
Current limiting and thermal overload protection
Logic-controlled enable
5-pin SOT-23 package
