XTXDatasheet (PDF)

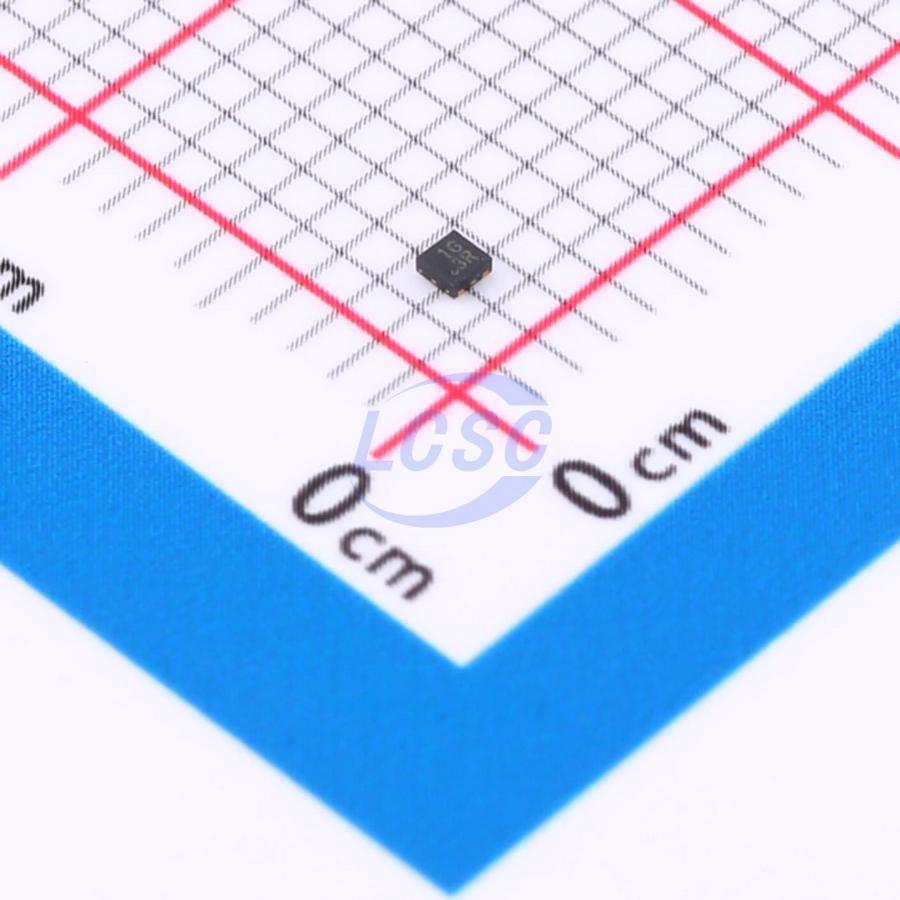

XTP2021-250AD1CT
2.5V Positive Fixed DFN1x1-4L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DFN1x1-4LROHS CompliantActive
Ultra-Low Power Consumption LDO
- Manufacturer
- XTX
- Manufacturer part #
- XTP2021-250AD1CT
- Store part #
- C7422313
- Package / case
- DFN1x1-4L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,415 in stock
#C7422313
Stock & price checked 40 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹7.67 | ₹38.35 |
| 50+ | ₹6.76 | ₹338.00 |
| 150+ | ₹6.31 | ₹946.50 |
| 500+ | ₹5.97 | ₹2,985.00 |
| 2,500+ | ₹5.69 | ₹14,225.00 |
| 5,000+ | ₹5.56 | ₹27,800.00 |
5 × ₹7.67
₹38.35
excl. GST
₹45.25 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 12,000 per reel
XTP2021-250AD1CT
₹38.35 for 5 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1uA
- Output Configuration
- Positive
- Operating Voltage
- 6.5V
- Output Current
- 300mA
- Features
- Enable control;Short Circuit Protection;Over Current Protection;Thermal shutdown;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 12,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.013 g
Overview
The XTP2021 is a ultra-low-power, low-stepdown linear regulator that supports a wide voltage input of 1.8V to 6.5V and a standby current of 1μA, making these devices ideal for batterypowered systems that spend most of their time in standby mode, requiring minimal standby power consumption to extend the life of the device. Integrated enable control mode that reduces current to only 100nA(typical) when the low level enable signal is turned off. XTP2021 only needs 1uF ceramic capacitor to work normally. The XTP2021 integrated shortcircuit current limiting and thermal shutdown protection. And has automatic discharge function, can be disabled in the state of rapid discharge VOUT. The operating temperature range is -40°C~+85°C.
Applications
- Portable, Battery Powered Equipment
- Low Power Micro-controllers
- Laptop, Palmtops and PDAs
- Wireless Communication Equipment
- Audio/Video Equipment
- Car Navigation System
Key features
- 1μA Ground Current at no Load
- ±2% Output Accuracy
- 300mA Output Current
- 10nA Shutdown Current
- Input Voltage Range: 1.8V to 6.5V
- Dropout Voltage: 0.18V at 300mA
- Fixed Output Voltage 0.9V,1.05V,1.2V, 1.5V, 1.8V, 1.9V, 2.5V, 2.7V, 2.8V, 2.85V, 2.9V, 3.0V, 3.3V Stable with Ceramic or Tantalum Capacitor
- Current Limit Protection
- Over-Temperature Protection
- DFN1x1-4L，SOT-23-5 Packages Available
