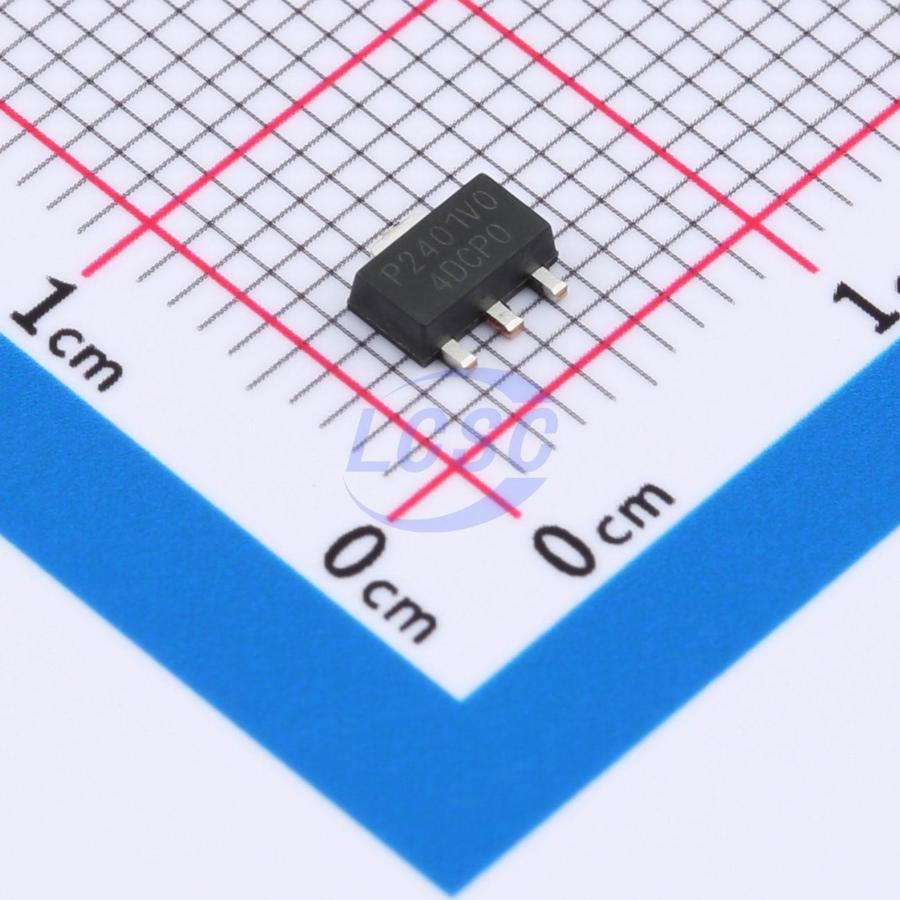

XTP2401-12HASA0CT
12V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-89-3ROHS CompliantActive
150mA High Voltage Regulator
- Manufacturer
- XTX
- Manufacturer part #
- XTP2401-12HASA0CT
- Store part #
- C41430129
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,050 in stock
#C41430129
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.60 | ₹68.00 |
| 50+ | ₹10.73 | ₹536.50 |
| 150+ | ₹9.30 | ₹1,395.00 |
| 1,000+ | ₹8.23 | ₹8,230.00 |
| 2,000+ | ₹7.37 | ₹14,740.00 |
| 5,000+ | ₹6.93 | ₹34,650.00 |
5 × ₹13.60
₹68.00
excl. GST
₹80.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
XTP2401-12HASA0CT
₹68.00 for 5 + GST
Specifications
- Output Voltage
- 12V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 6uA
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 150mA
- Output Type
- Fixed
- Features
- Short Circuit Protection;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.872 g
Overview
The XTP2401 is a high voltage and low power consumption linear regulator. It is capable of supplying 150mA output current. And support up to 40V input voltage range with very-low quiescent (IQ). Other features include short-circuit current limit and thermal shutdown protection. The XTP2401 is available in green SOT89-3 and SOT23-3 packages.
Applications
- Palmtops
- High power Boost Applications
- Power source for Battery-Powered Equipment
- Home electronic Appliances
Key features
- Operating Input Voltage Range: 2.7V~40V
- Fixed Output Voltage: 1.8V, 3.3V, 5.0V, 12V
- Output Voltage Accuracy: ± 2%
- Low Quiescent Current: 6uA (TYP)
- PSRR: 40dB @ 1KHz
- Current Limiting Protection
- Thermal Shutdown Protection
- Operation Temperature: -40°C~+85°C
- Package: SOT89-3 and SOT23-3
