XMXWDatasheet (PDF)

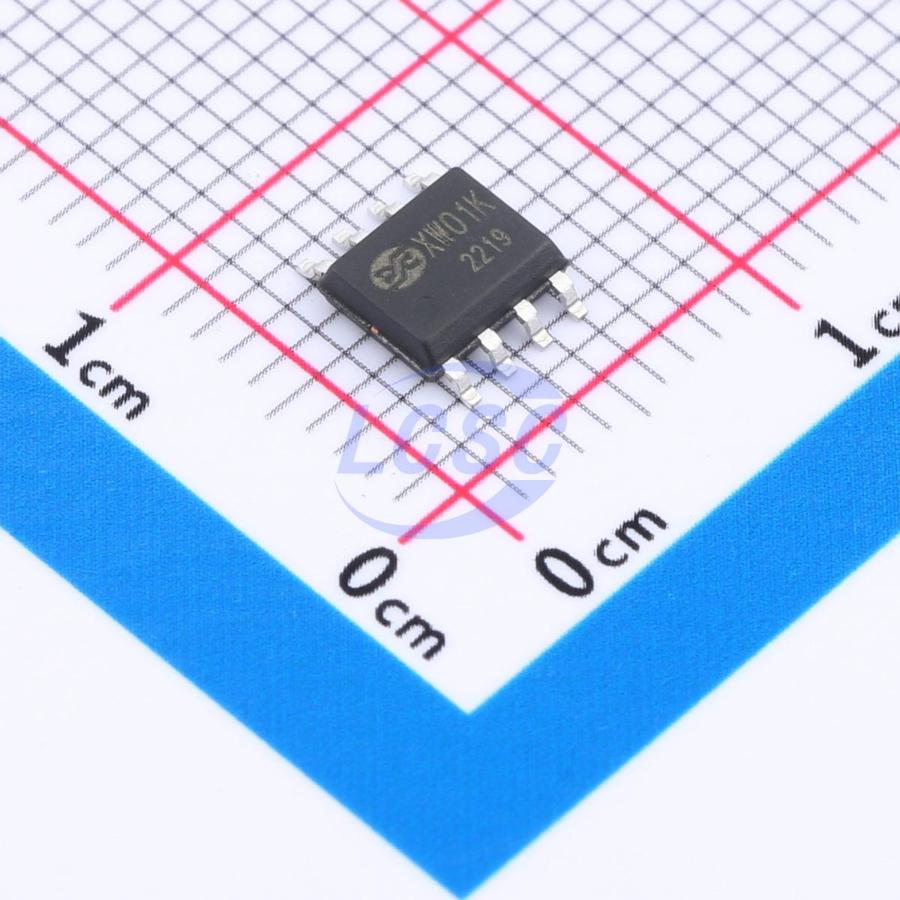

XW01K
No 1 SOP-8 Sensor, Capacitive Touch
SOP-8RoHSActive
Single-channel capacitive sensing chip
- Manufacturer
- XMXW
- Manufacturer part #
- XW01K
- Store part #
- C5264428
- Package / case
- SOP-8
- Category
- Sensor, Capacitive Touch
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,830 in stock
#C5264428
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.92 | ₹179.60 |
| 50+ | ₹27.62 | ₹1,381.00 |
| 150+ | ₹24.07 | ₹3,610.50 |
| 500+ | ₹19.63 | ₹9,815.00 |
| 3,000+ | ₹17.65 | ₹52,950.00 |
| 6,000+ | ₹16.47 | ₹98,820.00 |
5 × ₹35.92
₹179.60
excl. GST
₹211.93 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XW01K
₹179.60 for 5 + GST
Specifications
- ESD Protection Voltage
- 8kV
- Operating Temperature
- -40℃~+85℃
- Features
- Capacitive Touch;Automatic sensitivity calibration;Waterproof anti-interference touch
- Whether the Lock
- No
- Number of Channels
- 1
- Voltage - Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.21 g
Overview
Single-channel capacitive sensing IC, widely used in water level detection, human presence sensing, and similar applications.
Applications
- Liquid level detection
- Smart toilet human presence sensing
Key features
- Non-contact liquid level detection
- Automatic ambient calibration
- Built-in key debounce circuit, no external debounce required
- Embedded common-mode interference rejection circuit
- Key response rate up to 20 times per second
- Immediate key state detection upon power-up
- 2.5V~5.5V wide operating voltage range
- RoHS-compliant SOP8 package
