YONGYUTAIDatasheet (PDF)

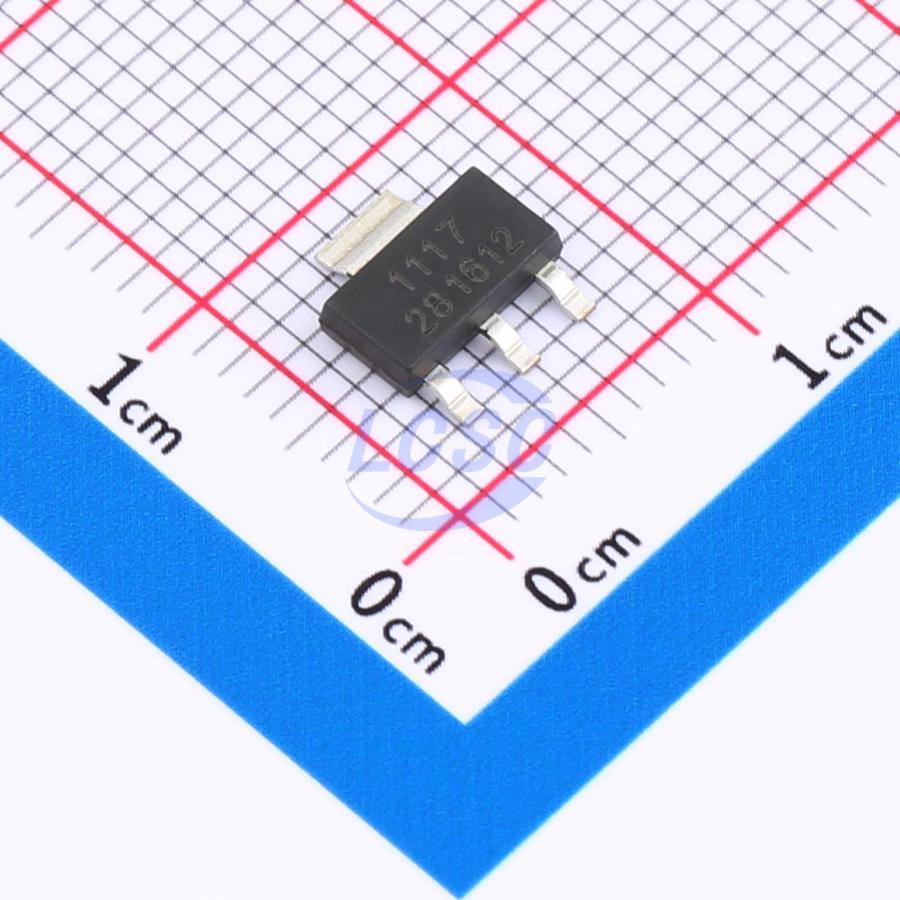

Y1117-2.85
Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-223
SOT-223RoHSActive
Low Dropout (LDO) Three-Terminal Voltage Regulator
- Manufacturer
- YONGYUTAI
- Manufacturer part #
- Y1117-2.85
- Store part #
- C48686200
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,300 in stock
#C48686200
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.95 | ₹99.50 |
| 100+ | ₹7.86 | ₹786.00 |
| 300+ | ₹6.83 | ₹2,049.00 |
| 2,500+ | ₹6.05 | ₹15,125.00 |
| 5,000+ | ₹5.41 | ₹27,050.00 |
| 10,000+ | ₹5.11 | ₹51,100.00 |
10 × ₹9.95
₹99.50
excl. GST
₹117.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
Y1117-2.85
₹99.50 for 10 + GST
Specifications
- Output Voltage
- 2.85V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 2mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 1A
- Features
- Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.24 g
Overview
The Y1117 series is a family of low dropout regulators with 1.1V dropout voltage at 1A load current. Compared to competitors' 5mA, the Y1117 features an ultra-low quiescent current of only 2mA. In addition to fixed output voltage versions (1.2V, 1.5V, 1.8V, 2.5V, 2.85V, 3.3V, and 5V), the Y1117 also offers an adjustable version that provides 1.25V to 12V output voltage with only two external resistors. The Y1117 incorporates a thermal shutdown function to ensure the stability of the die and power supply system. It uses trimming technology to guarantee output voltage accuracy within 2%. Other output voltage accuracies (such as 1%) are available upon request. The Y1117 is available in SOT-223, TO-252, and SOT-89 packages.
Applications
- Computer motherboard power management
- Graphics card power management
- LCD monitors and LCD TVs
- DVD decoder boards
- ADSL modems
Key features
- Output current: 1A
- Operating input voltage range: 15V
- Line regulation: 0.03%/V (typical)
- Quiescent current: 2mA (typical)
- Load regulation: 0.2%/A (typical)
- Ambient temperature: -40℃ ~ 125℃
