YLED0603G

The YONGYUTAI YLED0603G is an emerald green surface-mount LED with a rated forward current (IF) of 25 mA. Its forward voltage (VF) is specified as 2.6 V to 3.2 V at IF = 5 mA. The LED has a maximum reverse voltage (VR) of 5 V and is rated for an operating temperature range of -40°C to +85°C.

The YLED0603G provides a luminous intensity of 173 to 358 mcd at IF = 5 mA. It has a wavelength range of 510 nm to 531 nm at IF = 20 mA and features a 120° viewing angle (2θ1/2) for wide-angle illumination.

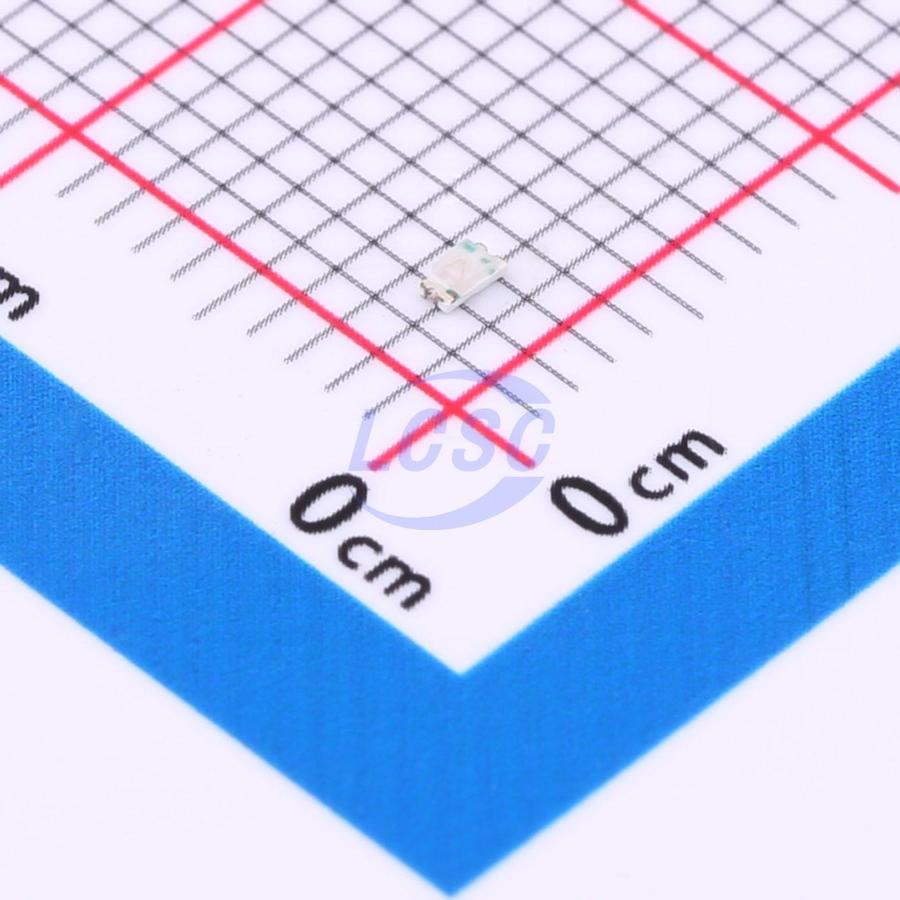

The YLED0603G is supplied in a 0603 surface-mount package with body dimensions of 1.6 mm × 0.8 mm × 0.6 mm. It is a two-terminal device, with Pin 1 as the anode (+) and Pin 2 as the cathode (-).

The YLED0603G is designed for reflow soldering and is RoHS compliant. The datasheet specifies a reflow soldering temperature of 250°C for 8 seconds under the absolute maximum ratings. It also recommends manual soldering at 300°C for no more than 3 seconds. In addition, the reliability test includes reflow soldering at a maximum of 260°C for up to 10 seconds.

The YLED0603G should be operated at its rated forward current with a current-limiting resistor in the circuit. The datasheet also recommends avoiding reverse voltages greater than 5 V and preventing surge voltages during power-on and power-off, as these conditions may damage the LED.
