YezhanDatasheet (PDF)

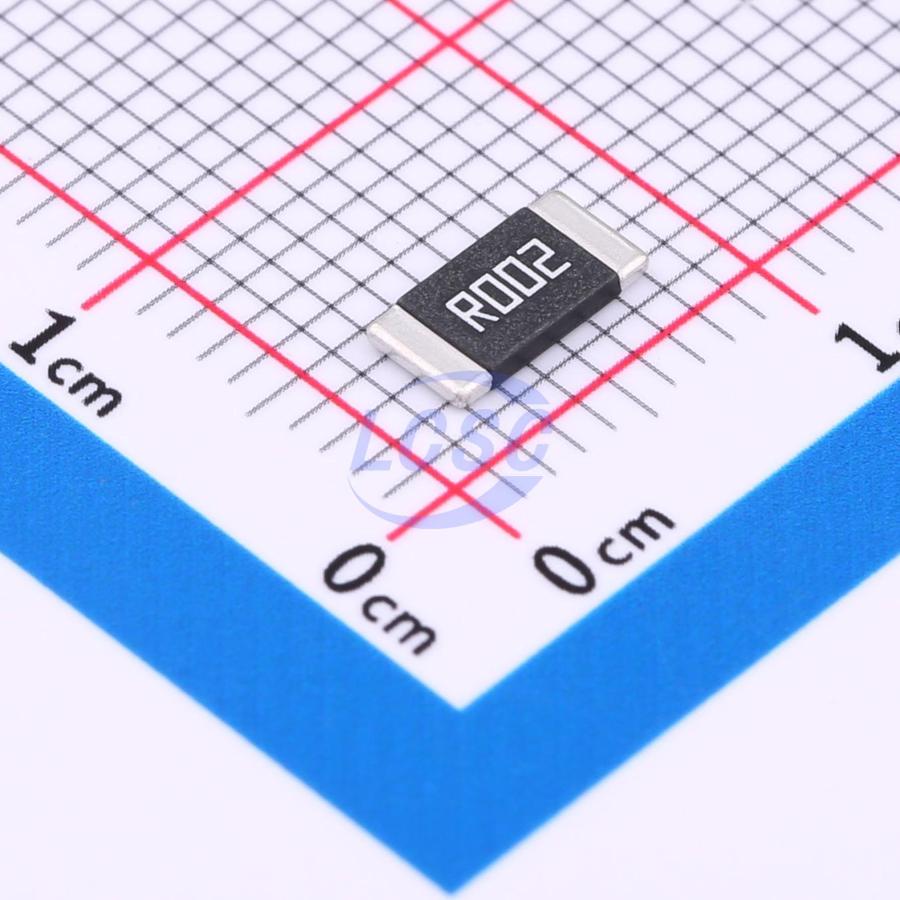

YLRY12-2-2F
2W 2mΩ Current Sense Resistor ±1% 2512 Chip Resistor - Surface Mount
2512RoHSActive
RES 2mΩ ±1% 2W 2512
- Manufacturer
- Yezhan
- Manufacturer part #
- YLRY12-2-2F
- Store part #
- C20608738
- Package / case
- 2512
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
420 in stock
#C20608738
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.70 | ₹57.00 |
| 100+ | ₹4.53 | ₹453.00 |
| 300+ | ₹3.96 | ₹1,188.00 |
| 1,000+ | ₹3.52 | ₹3,520.00 |
| 4,000+ | ₹3.18 | ₹12,720.00 |
| 8,000+ | ₹3.00 | ₹24,000.00 |
10 × ₹5.70
₹57.00
excl. GST
₹67.26 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
YLRY12-2-2F
₹57.00 for 10 + GST
Specifications
- Power(Watts)
- 2W
- Resistance
- 2mΩ
- Type
- Current Sense Resistor
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.097 g
Overview
Applications
- Current sensing
- Overcurrent protection
- Servo motor control circuits
- Variable frequency power supplies
- Electronic control systems
- Lithium battery control boards
Key features
- Resistance range: 0.5~500mΩ
- Tolerance: ±1%, ±2%, ±5%
- Power rating: 1W, 2W, 3W
- Temperature coefficient: ±350ppm/℃, ±100ppm/℃, ±50ppm/℃
- Operating temperature range: -55℃~170℃
- Low inductance: 5nH (1MHz)
- Insulation resistance: ≥100MΩ
- Withstanding voltage: 500V
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | YLRY12-2-2F-K#C20608739Yezhan · 2512 | Yezhan | 2512 | 3,995 | ₹9.37 · 3,995 in stock | View |
 | YLRY12-3-2F#C20608763Yezhan · 2512 | Yezhan | 2512 | 55,850 | ₹8.62 · 55,850 in stock | View |
 | YLRY12-3-2F-K#C20608764Yezhan · 2512 | Yezhan | 2512 | 61,955 | ₹8.58 · 61,955 in stock | View |
 | YLR12-3-2F-W#C521515Yezhan · 2512 | Yezhan | 2512 | 11,315 | ₹19.69 · 11,315 in stock | View |
 | YLR12-2-2F-W#C469372Yezhan · 2512 | Yezhan | 2512 | On request | Price on request | Quote |
