YezhanDatasheet (PDF)

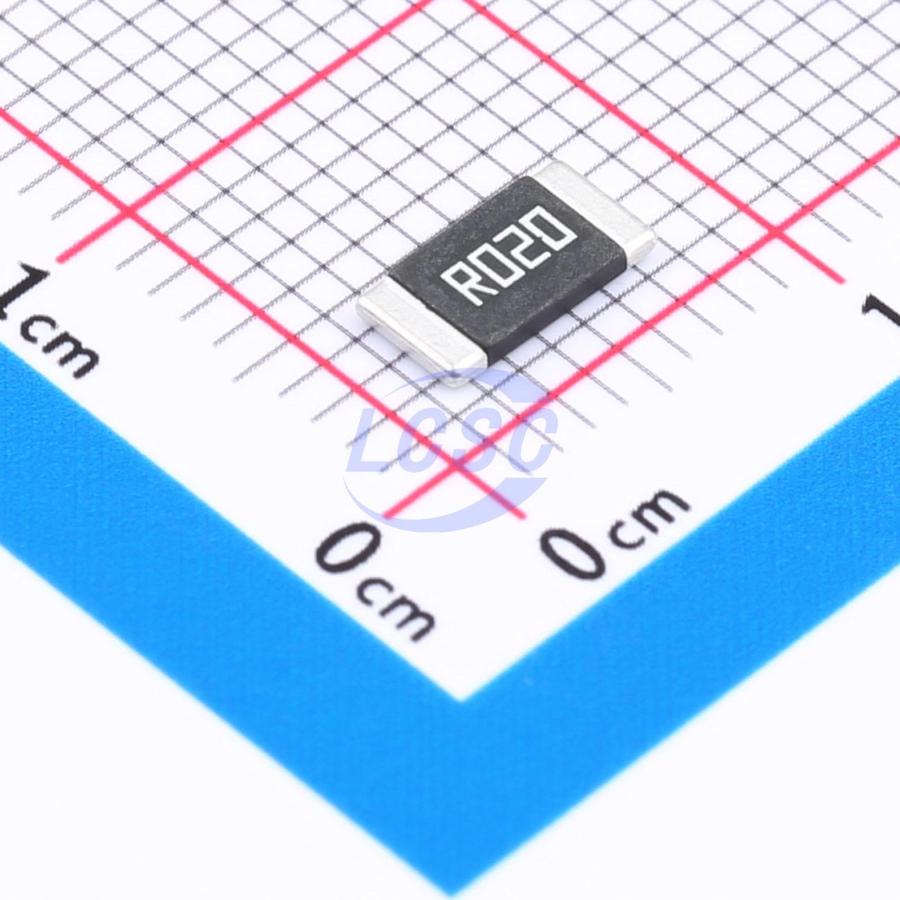

YLRY12-3-20F
20mΩ 3W Current Sense Resistor ±1% 2512 Chip Resistor - Surface Mount
2512RoHSActive
RES 20mΩ ±1% 3W 2512
- Manufacturer
- Yezhan
- Manufacturer part #
- YLRY12-3-20F
- Store part #
- C20608762
- Package / case
- 2512
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
61,190 in stock
#C20608762
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.01 | ₹60.10 |
| 100+ | ₹4.80 | ₹480.00 |
| 300+ | ₹4.19 | ₹1,257.00 |
| 1,000+ | ₹3.73 | ₹3,730.00 |
| 4,000+ | ₹3.37 | ₹13,480.00 |
| 8,000+ | ₹3.19 | ₹25,520.00 |
10 × ₹6.01
₹60.10
excl. GST
₹70.92 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
YLRY12-3-20F
₹60.10 for 10 + GST
Specifications
- Resistance
- 20mΩ
- Power(Watts)
- 3W
- Type
- Current Sense Resistor
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.081 g
Overview
Applications
- Current sensing
- Overcurrent protection
- Servo motor control circuits
- Variable frequency power supplies
- Electronic control systems
- Lithium battery control boards
Key features
- Resistance range: 0.5~500mΩ
- Tolerance: ±1%, ±2%, ±5%
- Power rating: 1W, 2W, 3W
- Temperature coefficient: ±350ppm/℃, ±100ppm/℃, ±50ppm/℃
- Operating temperature range: -55℃~170℃
- Low inductance: 5nH (1MHz)
- Insulation resistance: ≥100MΩ
- Withstanding voltage: 500V
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | YLR12-3-20F-W#C489552Yezhan · 2512 | Yezhan | 2512 | On request | Price on request | Quote |
