YezhanDatasheet (PDF)
YLRY12-3-4F-K

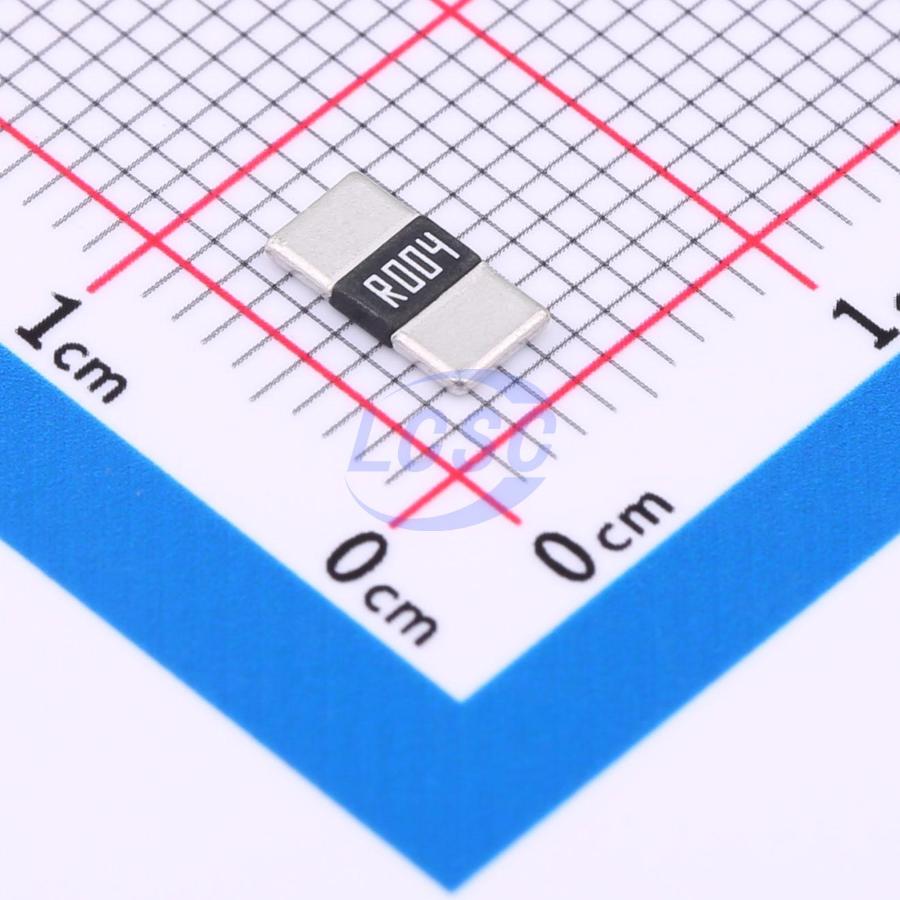

4mΩ 3W Current Sense Resistor ±1% 2512 Chip Resistor - Surface Mount
2512RoHSActive
RES 4mΩ ±1% 3W 2512
- Manufacturer
- Yezhan
- Manufacturer part #
- YLRY12-3-4F-K
- Store part #
- C20608767
- Package / case
- 2512
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,400 in stock
#C20608767
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.72 | ₹67.20 |
| 100+ | ₹5.27 | ₹527.00 |
| 300+ | ₹4.54 | ₹1,362.00 |
| 1,000+ | ₹4.00 | ₹4,000.00 |
| 4,000+ | ₹3.56 | ₹14,240.00 |
| 8,000+ | ₹3.33 | ₹26,640.00 |
10 × ₹6.72
₹67.20
excl. GST
₹79.30 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
YLRY12-3-4F-K
₹67.20 for 10 + GST
Specifications
- Resistance
- 4mΩ
- Power(Watts)
- 3W
- Type
- Current Sense Resistor
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.114 g
Overview
Applications
- Current sensing
- Overcurrent protection
- Servo motor control circuits
- Variable frequency power supplies
- Electronic control systems
- Lithium battery control boards
Key features
- Resistance range: 0.5~500mΩ
- Tolerance: ±1%, ±2%, ±5%
- Power rating: 1W, 2W, 3W
- Temperature coefficient: ±350ppm/℃, ±100ppm/℃, ±50ppm/℃
- Operating temperature range: -55℃~170℃
- Low inductance: 5nH (1MHz)
- Insulation resistance: ≥100MΩ
- Withstanding voltage: 500V
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | YLRY12-3-4F#C22468066Yezhan · 2512 | Yezhan | 2512 | 2,450 | ₹7.16 · 2,450 in stock | View |
 | YLR12-3-4F-W#C489556Yezhan · 2512 | Yezhan | 2512 | 5,795 | ₹17.68 · 5,795 in stock | View |
