YXC Crystal OscillatorsDatasheet (PDF)

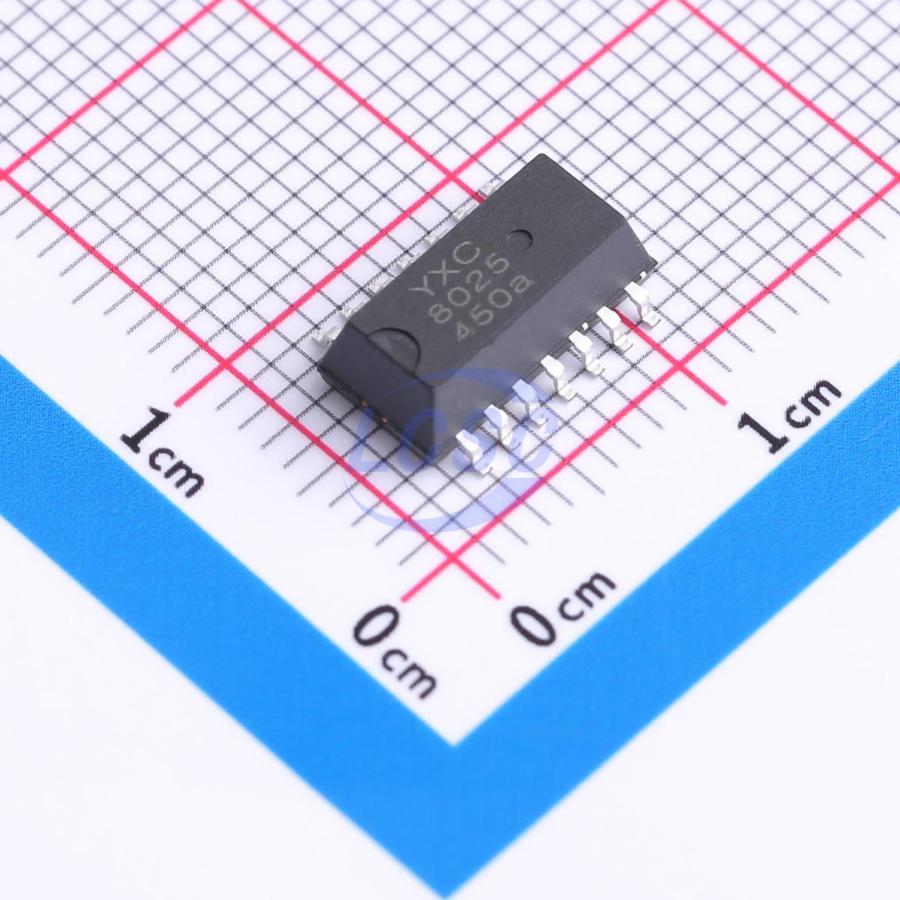

YSN8025TS 32.768KHZ
Built-in Yes SOP-14 Real Time Clocks RoHS
SOP-14ROHS CompliantActive
Realtime Clock Module
- Manufacturer
- YXC Crystal Oscillators
- Manufacturer part #
- YSN8025TS 32.768KHZ
- Store part #
- C42930213
- Package / case
- SOP-14
- Category
- Real Time Clocks
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,589 in stock
#C42930213
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹169.90 | ₹169.90 |
| 10+ | ₹142.80 | ₹1,428.00 |
| 30+ | ₹127.96 | ₹3,838.80 |
| 100+ | ₹110.97 | ₹11,097.00 |
| 500+ | ₹103.66 | ₹51,830.00 |
| 1,000+ | ₹100.22 | ₹1,00,220.00 |
1 × ₹169.90
₹169.90
excl. GST
₹200.48 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
YSN8025TS 32.768KHZ
₹169.90 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Voltage - Supply
- 1.6V~5.5V
- Features
- Periodic interrupt output;Temperature compensation;Alarm function;Programmable clock output;Battery low voltage detection;InsideSRAM/NVRAM
- crystal oscillator
- Built-in
- Alarm Output
- Yes
- Current - Supply
- 1uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.329 g
Overview
Key features
- Built-in high-stability 32.768KHz DTCXO (Digital Temperature Compensated Crystal Oscillator)
- I2C bus high-speed mode support (400K)
- Alarm function (configurable: day, date, hour, minute)
- Fixed-period timer interrupt
- Time update interrupt
- 32.768KHz frequency output (with OE enable function)
- Automatic leap year adjustment (2000 to 2099)
- Wide interface voltage range: 2.0V to 5.5V
- Wide timekeeping voltage range: 1.8V to 5.5V
- Low current consumption: 1uA/3V (Typ.)
