ZettaDatasheet (PDF)

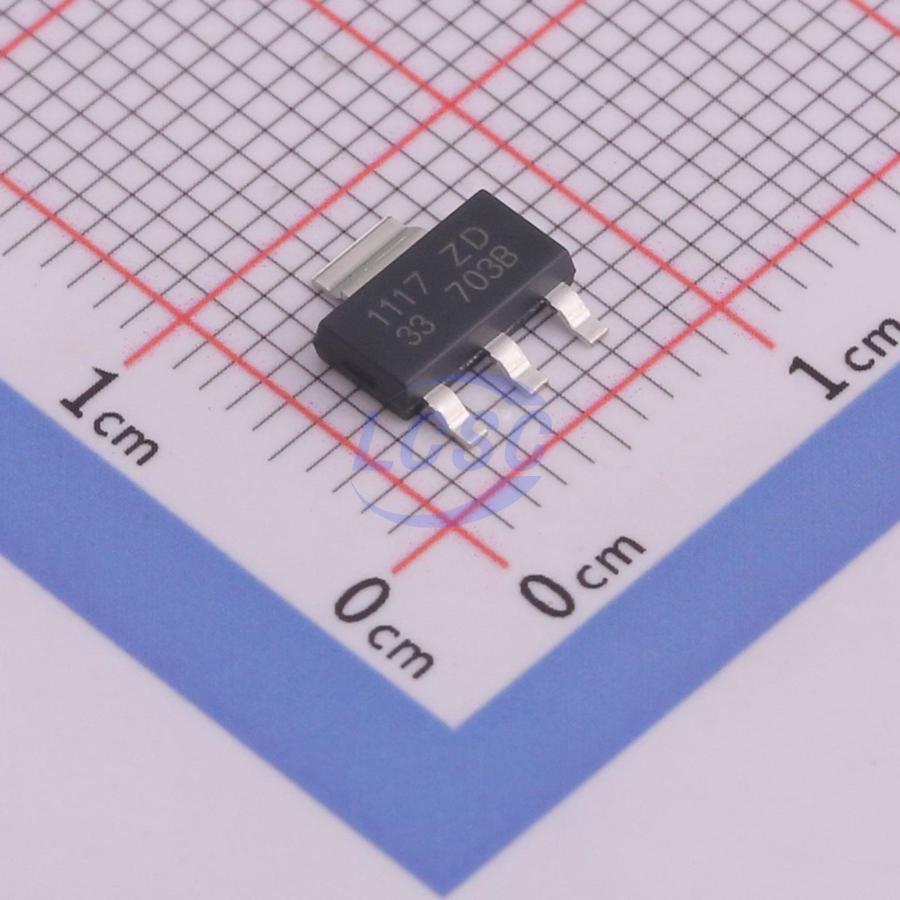

ZD1117ILTR331
3.3V Positive Fixed SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223ROHS CompliantActive
Bipolar Linear Regulator
- Manufacturer
- Zetta
- Manufacturer part #
- ZD1117ILTR331
- Store part #
- C7462742
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,320 in stock
#C7462742
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.70 | ₹53.50 |
| 50+ | ₹8.44 | ₹422.00 |
| 150+ | ₹7.32 | ₹1,098.00 |
| 500+ | ₹6.47 | ₹3,235.00 |
| 2,500+ | ₹5.87 | ₹14,675.00 |
| 5,000+ | ₹5.53 | ₹27,650.00 |
5 × ₹10.70
₹53.50
excl. GST
₹63.13 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ZD1117ILTR331
₹53.50 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 2mA
- Output Configuration
- Positive
- Operating Voltage
- 16V
- Output Current
- 1A
- Output Type
- Fixed
- Features
- Thermal shutdown;Over Current Protection
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.1 g
Overview
ZD1117 is a series of low dropout three-terminal regulators with a dropout of 1.3V at 1A load current. ZD1117 features a low standby current 2mA. Other than a fixed version (Vout = 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5V, and 12V), ZD1117 has an adjustable version, which can provide an output voltage from 1.25 to 12V with only two external resistors. ZD1117 offers thermal shut down and current limit functions, to assure stability of chip and power system. Trimming technique is used to guarantee output voltage accuracy within ±2%. Other output voltage accuracy such as ±1% can be customized on demand. ZD1117 is available in SOT-223, TO-252, SOT-89-3 power packages.
Applications
- Power Management for Computer Mother Board, Graphic Card
- LCD Monitor and LCD TV
- DVD Decode Board
- ADSL Modem
- Post Regulators for Switching Supplies
Key features
- Other than a fixed version and an adjustable version, output value can be customized on demand.
- Maximum output current is 1A
- Range of operation input voltage: Max 18V
- Standby current: 2mA (typ.)
- Line regulation: 0.1%/V (typ.)
- Load regulation: 10mV (typ.)
- Environment Temperature: -40°C~85°C
- Compatible with tantalum capacitor, electrolytic capacitor and MLCC.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ZD1117ILTR33#C2928930Zetta · SOT-223-4 | Zetta | SOT-223-4 | 4,480 | ₹8.36 · 4,480 in stock | View |
