Zetta

ZD1117ILTR50

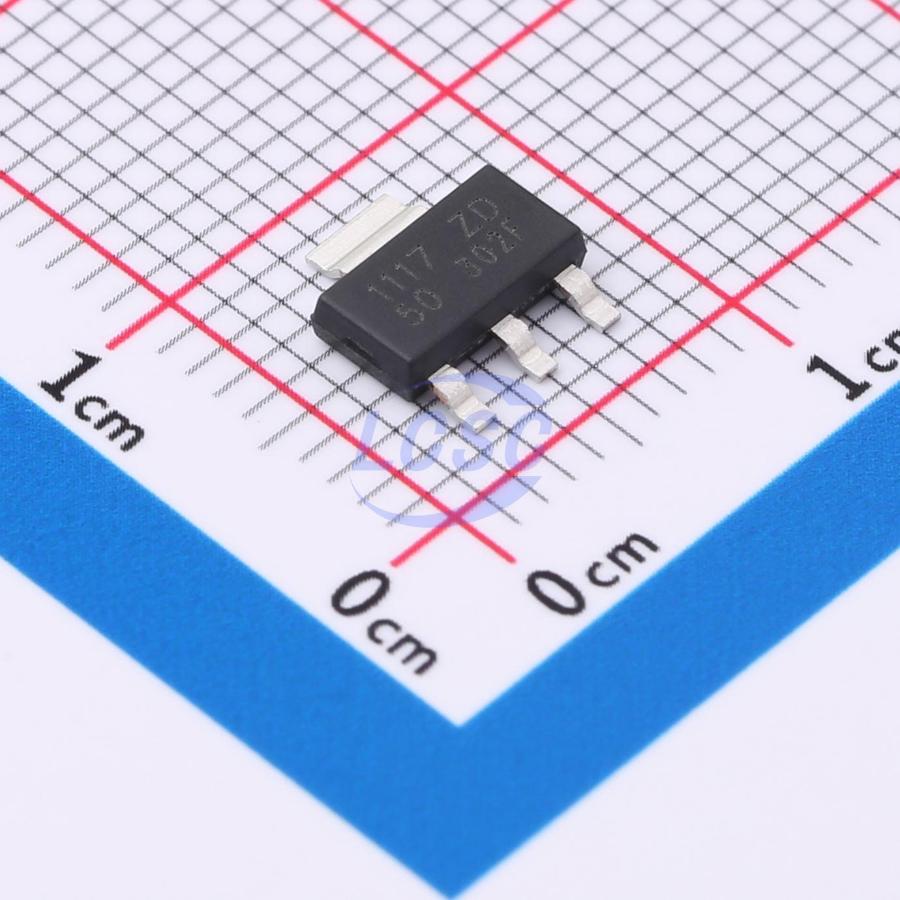

5V Positive Fixed SOT-223-4 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-223-4ROHS CompliantSold out at source

Bipolar Linear Regulator

Manufacturer: Zetta
Manufacturer part #: ZD1117ILTR50
Store part #: C2928931
Package / case: SOT-223-4
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,800 in stock

#C2928931

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
10+	₹6.61	₹66.10
100+	₹5.31	₹531.00
300+	₹4.68	₹1,404.00
2,500+	₹4.18	₹10,450.00
5,000+	₹3.80	₹19,000.00
10,000+	₹3.60	₹36,000.00

Quantity (min 10, multiples of 10)

10 × ₹6.61

₹66.10

excl. GST

₹78.00 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

ZD1117ILTR50

₹66.10 for 10 + GST

Specifications

Output Voltage: 5V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 5mA
Output Configuration: Positive
Operating Voltage: 16V
Output Current: 1A
Output Type: Fixed
Features: Thermal shutdown;Over Current Protection

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Sold out at source
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.26 g

Overview

ZD1117 is a series of low dropout three-terminal regulators with a dropout of 1.3V at 1A load current. ZD1117 features a low standby current 2mA. Other than a fixed version (Vout = 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5V, and 12V), ZD1117 has an adjustable version, which can provide an output voltage from 1.25 to 12V with only two external resistors. ZD1117 offers thermal shut down and current limit functions, to assure stability of chip and power system. Trimming technique is used to guarantee output voltage accuracy within ±2%. Other output voltage accuracy such as ±1% can be customized on demand. ZD1117 is available in SOT-223, TO-252, SOT-89-3 power packages.

Applications

Power Management for Computer Mother Board, Graphic Card
LCD Monitor and LCD TV
DVD Decode Board
ADSL Modem
Post Regulators for Switching Supplies

Key features

Other than a fixed version and an adjustable version, output value can be customized on demand.
Maximum output current is 1A
Range of operation input voltage: Max 18V
Standby current: 2mA (typ.)
Line regulation: 0.1%/V (typ.)
Load regulation: 10mV (typ.)
Environment Temperature: -40°C~85°C
Compatible with tantalum capacitor, electrolytic capacitor and MLCC.
