Zetta

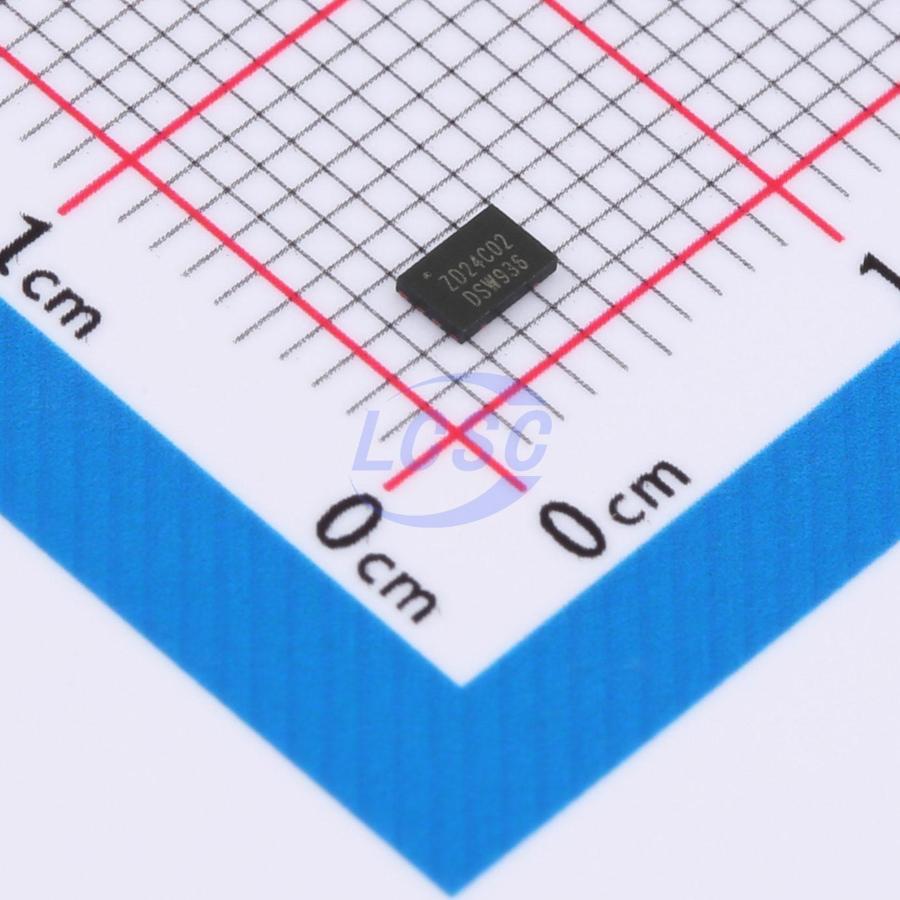

ZD24C02B-MAGMT
2Kbit 1MHz I2C UDFN-8L(2x3) Memory
UDFN-8L(2x3)RoHSActive
2K bits I2C-Compatible Serial EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,325 in stock
#C28314538
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.43 | ₹72.15 |
| 50+ | ₹11.51 | ₹575.50 |
| 150+ | ₹10.05 | ₹1,507.50 |
| 500+ | ₹8.96 | ₹4,480.00 |
| 3,000+ | ₹7.53 | ₹22,590.00 |
| 6,000+ | ₹7.09 | ₹42,540.00 |
5 × ₹14.43
₹72.15
excl. GST
₹85.14 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ZD24C02B-MAGMT
₹72.15 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 2Kbit
- Voltage - Supply
- 1.7V~5.5V;1.65mA
- Clock Frequency
- 1MHz
- Access Time
- 1us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 3uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.042 g
Overview
The ZD24C02B provides 2048 bits of serial electrically erasable and programmable read-only memory (EEPROM), organized as 256 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential.
Key features
- Compatible with all |2c| bidirectional data transfer protocol
- Memory array: 2K bits of EEPROM, Page size: 8 bytes
- Single supply voltage and high speed
- Minimum operating voltage down to 1.6V
- 1 MHz clock from 2.5V to 5.5V
- 400kHz clock from 1.7V to 5.5V
- Random and sequential Read modes
- Page Write within 5 ms
- Partial Page Writes Allowed
- Write Protect Pin for Hardware Data Protection
- Schmitt Trigger, Filtered Inputs for Noise Suppression
- High Reliability
- Endurance: 1 Million Write Cycles
- Data Retention: 100 Years
- Enhanced ESD/Latch-up protection
- HBM 4000V
- +/- 200mA
- 8-lead SOP8-150 / TSSOP8 / SOT23-5 /SOT23-6 package
