Zetta

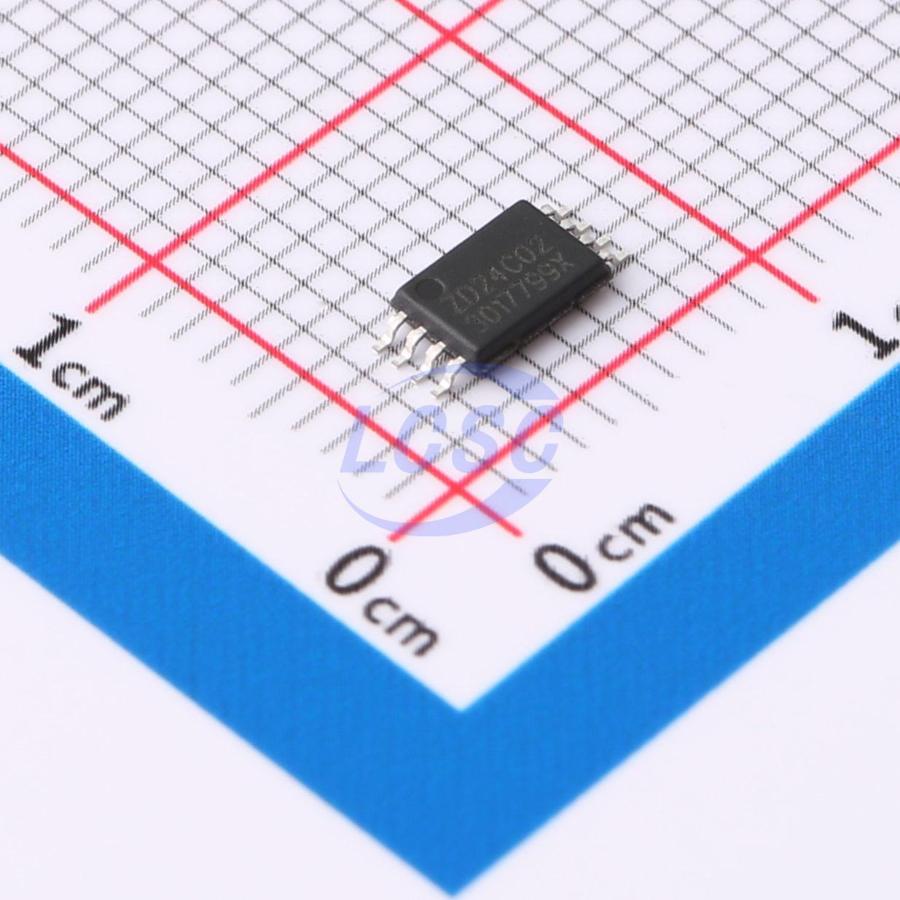

ZD24C02B-XGMT
2Kbit 1MHz I2C TSSOP-8 Memory RoHS
TSSOP-8ROHS CompliantActive
I2C-Compatible (2-wire) Serial EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,740 in stock
#C5375516
Stock & price checked 36 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.64 | ₹96.40 |
| 100+ | ₹7.79 | ₹779.00 |
| 300+ | ₹6.87 | ₹2,061.00 |
| 3,000+ | ₹5.98 | ₹17,940.00 |
| 6,000+ | ₹5.42 | ₹32,520.00 |
| 9,000+ | ₹5.15 | ₹46,350.00 |
10 × ₹9.64
₹96.40
excl. GST
₹113.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ZD24C02B-XGMT
₹96.40 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 2Kbit
- Voltage - Supply
- 1.7V~5.5V;0.8mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us;0.55us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 3uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.15 g
Overview
The ZD24C02B provides 2048 bits of serial electrically erasable and programmable read-only memory (EEPROM), organized as 256 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential.
Key features
- Compatible with all |2 complement bidirectional data transfer protocol
- Memory array:
- 2K bits of EEPROM
- Page size: 8 bytes
- Single supply voltage and high speed
- Minimum operating voltage down to 1.6V
- 1 MHz clock from 2.5V to 5.5V
- 400kHz clock from 1.7V to 5.5V
- Random and sequential Read modes
- Write:
- Page Write within 5 ms
- Partial Page Writes Allowed
- Write Protect Pin for Hardware Data Protection
- Schmitt Trigger, Filtered Inputs for Noise Suppression
- High Reliability
- Endurance: 1 Million Write Cycles
- Data Retention: 100 Years
- Enhanced ESD/Latch-up protection
- HBM 4000V
- +/- 200mA
- 8-lead SOP8-150 / TSSOP8 / SOT23-5 packages
