Zetta

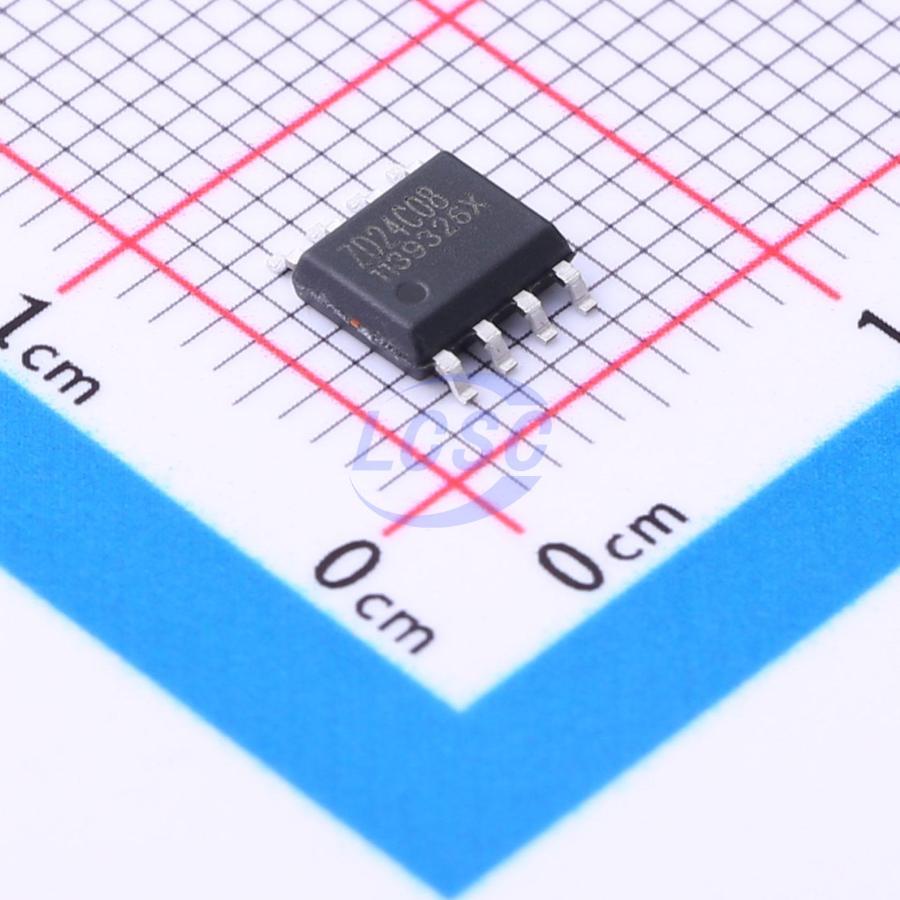

ZD24C08A-SSGMT
8Kbit 1MHz I2C SOP-8 Memory RoHS
SOP-8ROHS CompliantActive
8K Bits I2C-Compatible Serial EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,040 in stock
#C2896641
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹11.23 | ₹112.30 |
| 100+ | ₹8.84 | ₹884.00 |
| 300+ | ₹7.63 | ₹2,289.00 |
| 3,000+ | ₹6.38 | ₹19,140.00 |
| 6,000+ | ₹5.66 | ₹33,960.00 |
| 9,000+ | ₹5.31 | ₹47,790.00 |
10 × ₹11.23
₹112.30
excl. GST
₹132.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ZD24C08A-SSGMT
₹112.30 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 8Kbit
- Voltage - Supply
- 1.7V~5.5V;0.28mA
- Clock Frequency
- 1MHz
- Access Time
- 0.55us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 3ms
- Standby Supply Current
- 0.03uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.191 g
Overview
- The ZD24C02A/ZD24C04A/ZD24C08A/ZD24C16A provides 2048/4096/8192/16384 bits of serial electrically erasable and programmable read- only memory (EEPROM), organized as 256/512/1024/2048 words of 8 bits each. - The device is optimized for use in many industrial and commercial applications where low-power and lowvoltage operation are essential.
Key features
- Compatible with all I²C bidirectional data transfer protocol
- Memory array:
- 2K bits (256X 8)/ 4K bits (512 X 8) / 8K bits (1024 X 8) / 16K bits (2048x8) of EEPROM
- Page size: 16 bytes
- Single supply voltage and high speed –1 MHz
- Random and sequential Read modes
- Write:
- Byte Write within 3 ms
- Page Write within 3 ms
- Partial Page Writes Allowed
- Write Protect Pin for Hardware Data Protection
- Schmitt Trigger, Filtered Inputs for Noise Suppression
- High Reliability:
- Endurance: 1,000,000 Write Cycles
- Data Retention: 100 Years
- Enhanced ESD/Latch-up protection – HBM 8000V
- 8-lead PDIP/SOP/TSSOP/UDFN and WLCSP4 packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ZD24C08A-SSGMB#C918266Zetta · SOP-8 | Zetta | SOP-8 | 13,280 | ₹9.72 · 13,280 in stock | View |
