Zetta

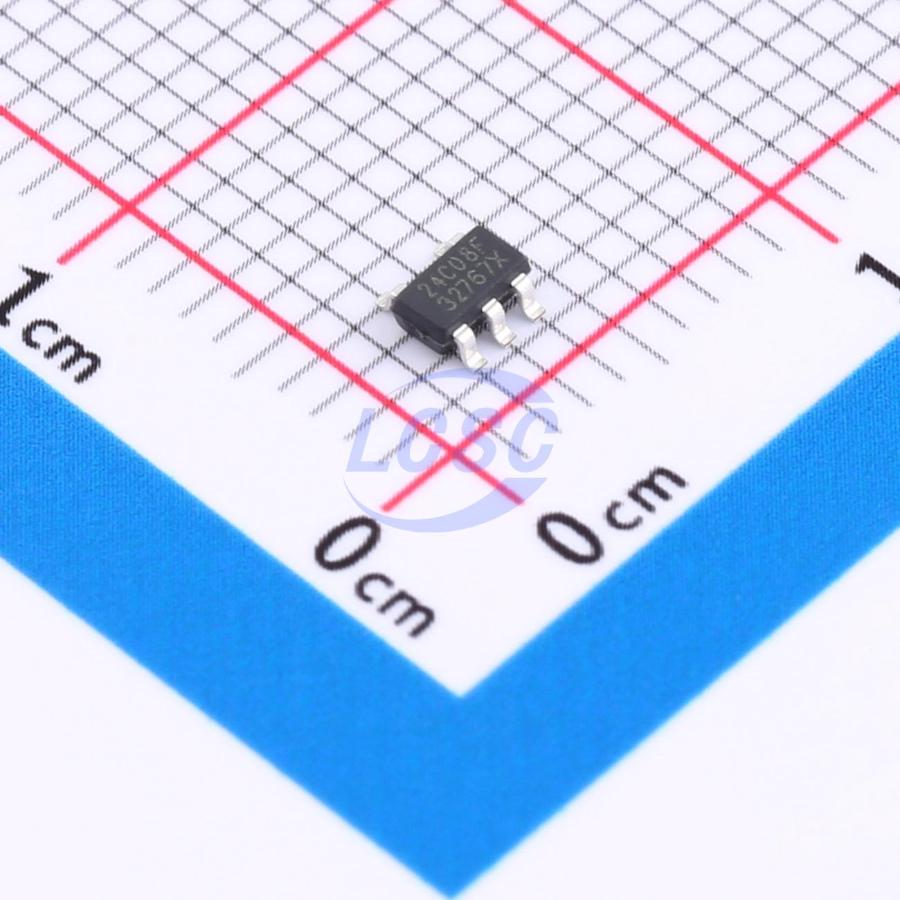

ZD24C08AE1-STGMT
8Kbit 1MHz I2C SOT-23-5 Memory RoHS
SOT-23-5ROHS CompliantActive
8Kbit I2C-Compatible Serial EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,550 in stock
#C3007877
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.23 | ₹91.15 |
| 50+ | ₹14.58 | ₹729.00 |
| 150+ | ₹12.75 | ₹1,912.50 |
| 500+ | ₹11.39 | ₹5,695.00 |
| 3,000+ | ₹10.29 | ₹30,870.00 |
| 6,000+ | ₹9.75 | ₹58,500.00 |
5 × ₹18.23
₹91.15
excl. GST
₹107.56 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ZD24C08AE1-STGMT
₹91.15 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 8Kbit
- Voltage - Supply
- 1.7V~5.5V;0.28mA
- Clock Frequency
- 1MHz
- Access Time
- 0.55us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 3ms
- Standby Supply Current
- 0.03uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.05 g
Overview
The ZD24C08A provides 8192 bits of serial electrically erasable and programmable read- only memory (EEPROM), organized as 1024 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low-power and lowvoltage operation are essential.
Key features
- Compatible with all I²C bidirectional data transfer protocol
- Memory array:
- 8K bits (256X 8) of EEPROM
- Page size: 16 bytes
- Single supply voltage and high speed
- 1 MHz
- Random and sequential Read modes
- Write:
- Byte Write within 3 ms
- Page Write within 3 ms
- Partial Page Writes Allowed
- Write Protect Pin for Hardware Data Protection
- Schmitt Trigger, Filtered Inputs for Noise Suppression
- High Reliability
- Endurance: 1,000,000 Write Cycles
- Data Retention: 100 Years
- Enhanced ESD/Latch-up protection
- HBM 8000V
- 8-lead PDIP/SOP/TSSOP/UDFN and WLCSP4 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ZD24C08A-STGMT#C2896640Zetta · SOT-23-5 | Zetta | SOT-23-5 | 7,180 | ₹8.85 · 7,180 in stock | View |
