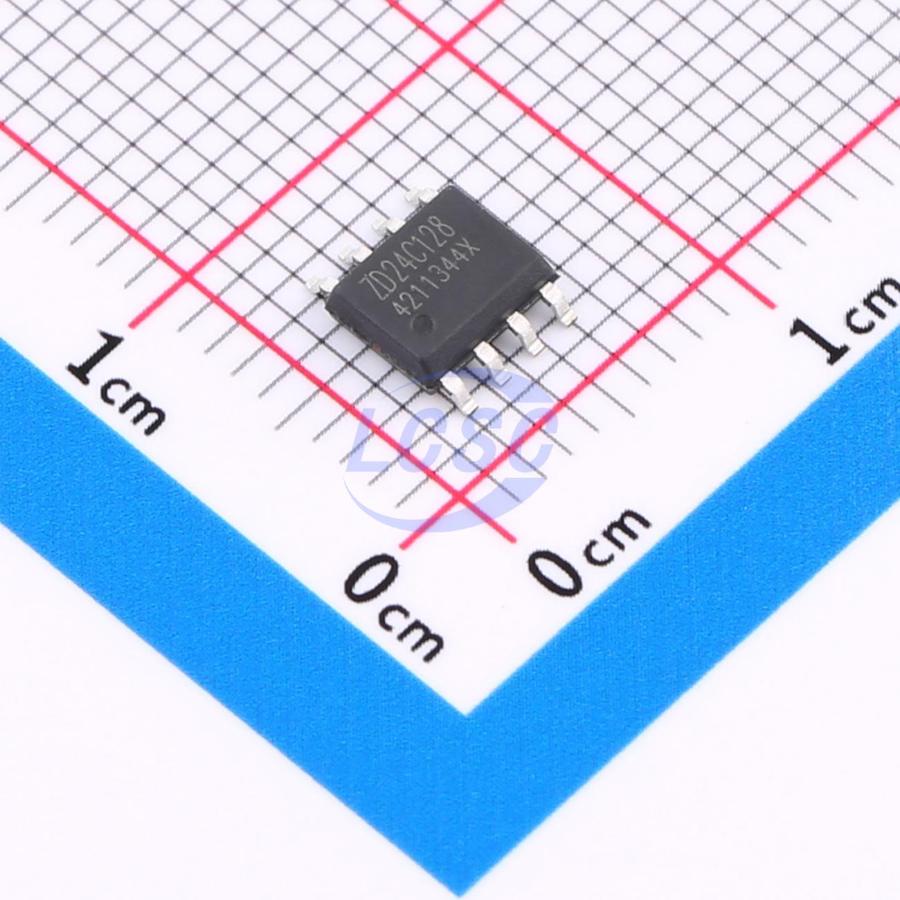

ZD24C128A-SSGMB
128Kbit 1MHz I2C SOP-8 Memory RoHS
I2C-Compatible Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,360 in stock
#C918271
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.01 | ₹120.05 |
| 50+ | ₹19.09 | ₹954.50 |
| 200+ | ₹15.72 | ₹3,144.00 |
| 500+ | ₹13.10 | ₹6,550.00 |
| 2,500+ | ₹11.92 | ₹29,800.00 |
| 5,000+ | ₹11.22 | ₹56,100.00 |
5 × ₹24.01
₹120.05
excl. GST
₹141.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 100 per tube
ZD24C128A-SSGMB
₹120.05 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Noise suppression function
- Memory Size
- 128Kbit
- Voltage - Supply
- 1.7V~5.5V;1mA
- Clock Frequency
- 1MHz
- Access Time
- 4500ns;900ns;450ns
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 0.5uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 100 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.234 g
Overview
The ZD24C128A provides 131,072 bits of Serial Electrically Erasable and Programmable Read-Only Memory (EEPROM) organized as 16,384 words of 8 bits each. The device offers an additional page, named the Identification Page(64 bytes). The Identification Page can be used to store sensitive application parameters which can be (later) permanently locked in Read-only mode. The device’s cascadable feature allows more devices to share a common 2-wire bus. This device is optimized for use in many industrial and commercial applications where low-power and low voltage operation are essential. The device is available in space-saving 8-lead SOIC, 8-lead TSSOP, 8-pad UDFN, 8-lead PDIP, 5-lead SOT23, and 8-ball UDFN packages. The entire family of packages operates from 1.7V to 5.5V.
Key features
- Low Voltage Operation - VCC = 1.7V to 5.5V
- Internally Organized as 16,384x8 (128K)
- Additional Write lockable page
- I²C-compatible (2-wire) Serial Interface
- 100kHz Standard Mode, 1.7V to 5.5V
- 400kHz Fast Mode, 1.7V to 5.5V
- 1MHz Fast Mode Plus (FM+), 2.5V to 5.5V
- Schmitt Trigger Filtered Inputs for Noise Suppression
- Bidirectional Data Transfer Protocol
- Write Protect Pin for Full Array Hardware Data Protection
- Ultra Low Active Current (300μA max) and Standby Current (0.5μA Max)
- 64-byte Page Write Mode
- Partial Page Writes Allowed
- Random and Sequential Read Modes
- Self-timed Write Cycle Within 5ms Max
- High Reliability
- Endurance: 1,000,000 Write Cycles
- Data Retention: 100 Years
- Green Package Options (Lead-free/Halide-free/RoHS Compliant)
- 8-lead SOIC, 8-lead TSSOP, 8-pad UDFN, 8-lead PDIP, 5-lead SOT23
- Die Sale Options: Wafer Form and Tape and Reel Available
- Identification Page Options(Contact our sales for details)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ZD24C128A-SSGMT#C2896789Zetta · SOP-8-150mil | Zetta | SOP-8-150mil | 3,280 | ₹20.51 · 3,280 in stock | View |
