Zetta

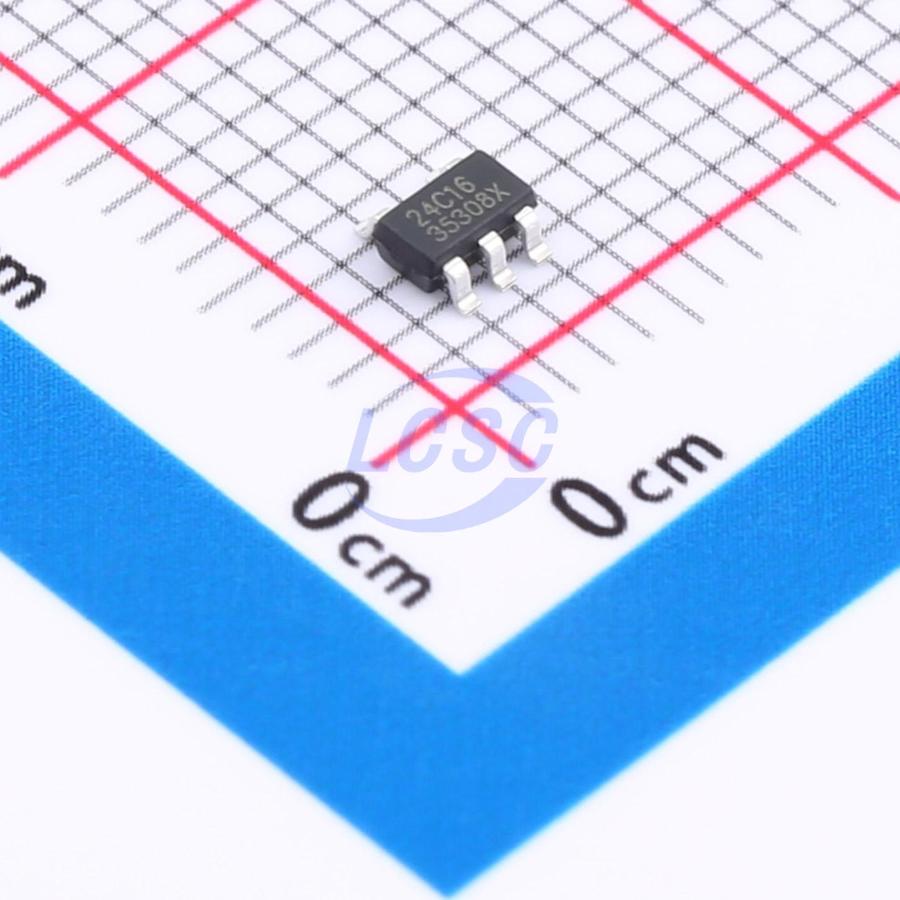

ZD24C16A-STGMT
16Kbit 1MHz I2C SOT-23-5L Memory RoHS
SOT-23-5LROHS CompliantActive
16Kbit I²C-Compatible Serial EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,415 in stock
#C20622850
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.56 | ₹57.80 |
| 50+ | ₹9.27 | ₹463.50 |
| 150+ | ₹8.12 | ₹1,218.00 |
| 500+ | ₹7.26 | ₹3,630.00 |
| 3,000+ | ₹6.58 | ₹19,740.00 |
| 6,000+ | ₹6.23 | ₹37,380.00 |
5 × ₹11.56
₹57.80
excl. GST
₹68.20 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ZD24C16A-STGMT
₹57.80 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 16Kbit
- Voltage - Supply
- 1.7V~5.5V;0.25mA
- Clock Frequency
- 1MHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 3ms
- Standby Supply Current
- 0.02uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.046 g
Overview
- The ZD24C16A provides 16384 bits of serial electrically erasable and programmable read-only memory (EEPROM), organized as 2048 words of 8 bits each. - The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential
Key features
- Compatible with all I²C bidirectional data transfer protocol
- Memory array: 16K bits (2048x8) of EEPROM Page size: 16 bytes
- Single supply voltage and high speed: – 1 MHz
- Random and sequential Read modes
- Write: Byte Write within 3 ms Page Write within 3 ms – Partial Page Writes Allowed
- Schmitt Trigger, Filtered Inputs for Noise Suppression
- High-reliability Endurance: 1 Million Write Cycles Data Retention: 100 Years
- Enhanced ESD/Latch-up protection
- HBM ±3000V
- MM ±350V
- CDM ±2000V
- 8-lead PDIP/SOP/TSSOP/ UDFN/SOT23-5 and TSOT23-5 packages
