Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,789 in stock
#C52037962
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹106.67 | ₹106.67 |
| 10+ | ₹95.81 | ₹958.10 |
| 30+ | ₹89.95 | ₹2,698.50 |
| 100+ | ₹83.22 | ₹8,322.00 |
| 500+ | ₹80.39 | ₹40,195.00 |
| 1,000+ | ₹78.86 | ₹78,860.00 |
1 × ₹106.67
₹106.67
excl. GST
₹125.87 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel

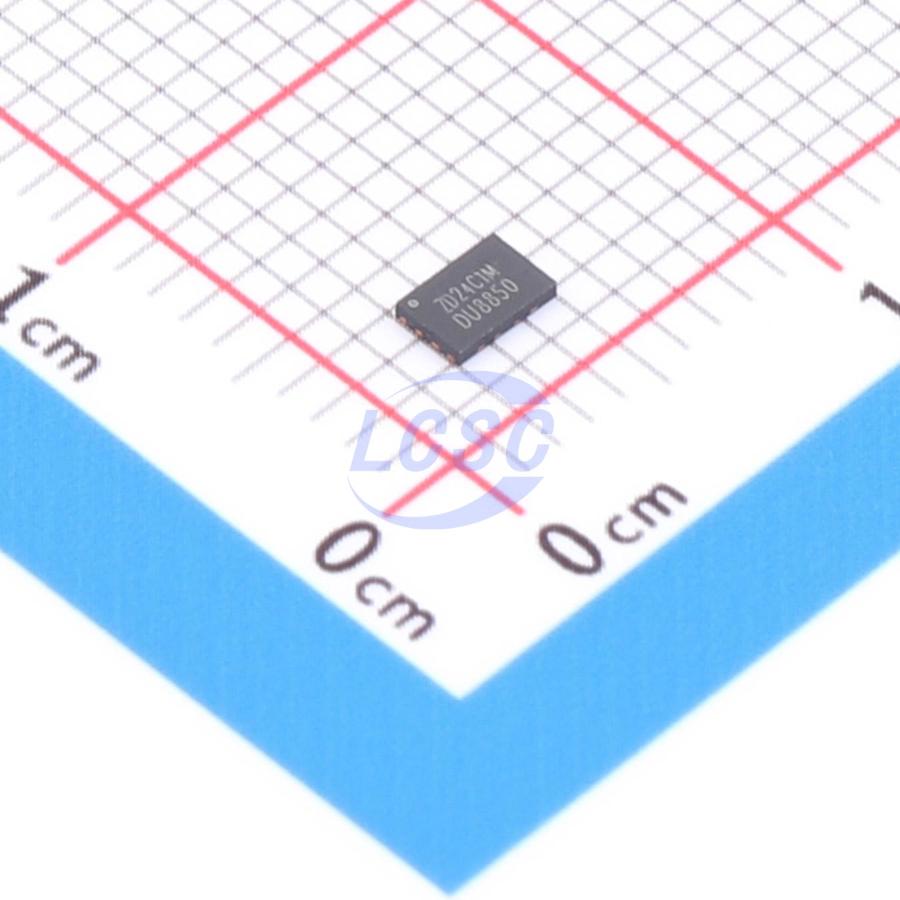

ZD24C1MA-MAGMT
₹106.67 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+105℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 1Mbit
- Voltage - Supply
- 1.7V~5.5V;2.5mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us;0.55us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 3.5uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.033 g
Overview
The ZD24C1MA provides 1,048,576 bits of serial EEPROM, organized as 131,072 words of 8 bits. The device offers an additional page known as the Identification Page. The Identification Page can be used to store sensitive application parameters, which can then be permanently locked in read-only mode. The device is optimized for a wide range of industrial and commercial applications where low power consumption and low-voltage operation are critical.
Key features
- Low-voltage operation: VCC = 1.7V to 5.5V
- Compatible with all I2C bidirectional data transfer protocols
- Memory array: 1024 Kb EEPROM, page size: 256 bytes, with additional write-lockable page
- Single supply voltage with high-speed operation: 400kHz@1.7V, 1MHz@2.5V
- Random and sequential read modes
- Write operations: byte write time 5 ms, page write time 5 ms, partial page write supported
- Write protect pin for hardware data protection
- Schmitt trigger, filtered inputs for noise suppression
- High reliability: endurance 1 million write cycles, data retention 100 years
- Enhanced ESD/latch-up protection: Human Body Model 6000V
- 8-pin PDIP/SOP/TSSOP/UDFN/WLCSP packages
