Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,400 in stock
#C54741565
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.39 | ₹216.95 |
| 50+ | ₹34.27 | ₹1,713.50 |
| 150+ | ₹30.35 | ₹4,552.50 |
| 500+ | ₹25.47 | ₹12,735.00 |
| 3,000+ | ₹23.28 | ₹69,840.00 |
| 6,000+ | ₹21.98 | ₹1,31,880.00 |
5 × ₹43.39
₹216.95
excl. GST
₹256.00 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel

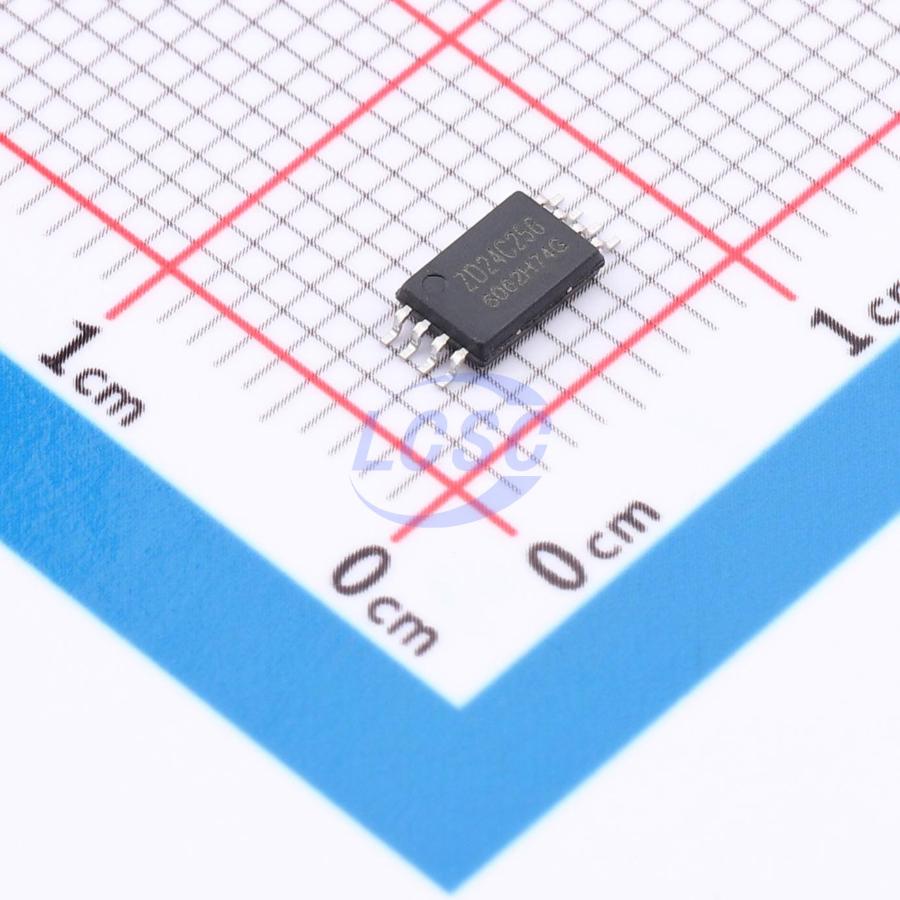

ZD24C256A-XGMT
₹216.95 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+105℃
- Features
- Page write protection; hardware write protection; noise suppression
- Memory Size
- 256Kbit
- Voltage - Supply
- 1.7V~5.5V;0.8mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 6uA
- Write Cycle Endurance
- 1 million cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.209 g
Overview
The ZD24C256A provides 262144 bits of serial EEPROM, organized as 32768 words of 8 bits. The device is optimized for many industrial and commercial applications where low power consumption and low voltage operation are critical. The ZD24C256A offers an additional page known as the Identification Page. The Identification Page can be used to store sensitive application parameters, which can later be permanently locked in read-only mode.
Key features
- Compatible with all I²C bidirectional data transfer protocols
- Memory array: 256 Kbits EEPROM, page size: 64 bytes, with additional write-lockable page
- Single supply voltage and high speed: 1 MHz, random and sequential read modes
- Write: byte write time 3 ms, page write time 3 ms, partial page write supported
- Write protect pin for hardware data protection
- Schmitt trigger and filtered inputs for noise suppression
- High reliability: endurance 1 million write cycles, data retention 100 years
- Enhanced ESD/latch-up protection: HBM 6000V
- 8-pin PDIP/SOP/TSSOP/UDFN/TSOT23-5 packages
