Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,951 in stock
#C53552663
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹123.85 | ₹123.85 |
| 10+ | ₹100.22 | ₹1,002.20 |
| 30+ | ₹88.40 | ₹2,652.00 |
| 100+ | ₹76.59 | ₹7,659.00 |
| 500+ | ₹69.63 | ₹34,815.00 |
| 1,000+ | ₹66.04 | ₹66,040.00 |
1 × ₹123.85
₹123.85
excl. GST
₹146.14 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 100 per tube

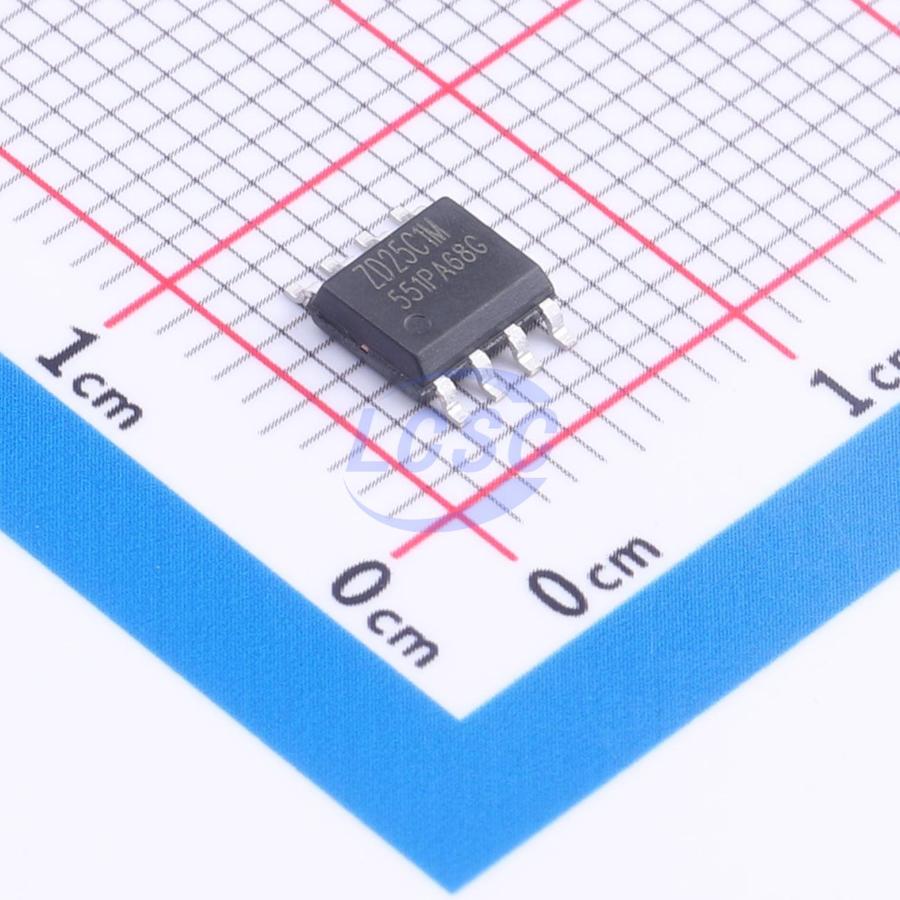

ZD25C1MA-SSGMB
₹123.85 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+105℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Built-in write enable latch (WEL);Page write protection function
- Memory Size
- 1Mbit
- Voltage - Supply
- 1.7V~5.5V;10mA
- Clock Frequency
- 5MHz
- Access Time
- 80ns;40ns;20ns
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 3ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 2,000,000 Cycles
- Interface
- I2C;SPI
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 100 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.151 g
Overview
ZD25CM01 is a serial EEPROM device accessed via SPI bus. The device is designed to operate at a supply voltage range of 1.7V to 5.5V, with a maximum transfer rate of 20 MHz. The operating temperature range is -40°C to +105°C. The serial EEPROM memory is organized as 512 pages of 256 bytes each, totaling 131072×8 bits. The device provides users with an additional 256-byte identification page for storing sensitive application parameters. Once application data is written to the identification page, the page can be permanently locked to read-only mode. The device also offers a separate memory block containing a factory-programmed 128-bit unique ID. This block operates in read-only mode and can be accessed by issuing a specific read command. ZD25CM01 is available in lead-free green packages: SOP, TSSOP, UDFN, and WLCSP.
Key features
- SPI-compatible
- Supply voltage range: 1.7V to 5.5V
- High-speed clock: 20 MHz
- Byte and page (up to 256 bytes) write modes
- Self-timed write cycle (3ms max)
- Block write protection
- Additional 256-byte writable lockable page and 128-bit unique ID
- Endurance: 2,000,000 write cycles; data retention: 200 years; ESD protection (HBM): 6000V
- Operating temperature range: -40°C to +105°C
